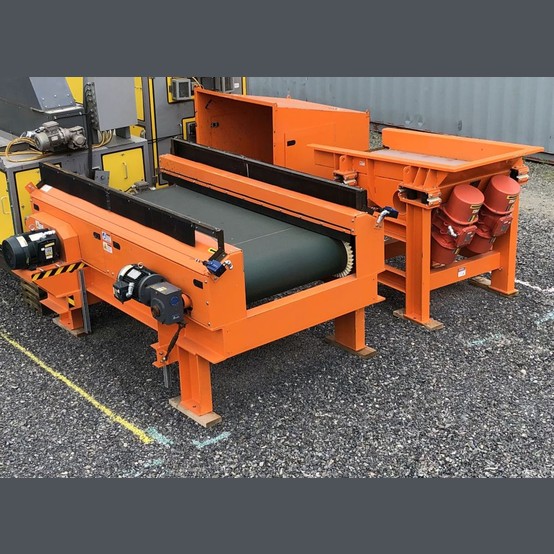

• Model: RevX-E® ECS
  • 1.2M (48") wide X 8 ft. long belt
    • With 1 ½ inch high corrugated sides
  • Mag Rotor Assembly: ST-22:
    • 22 Pole Rare Earth Eccentric Rotor for +¼ in. to 1 in.
    • 2500 Gauss:

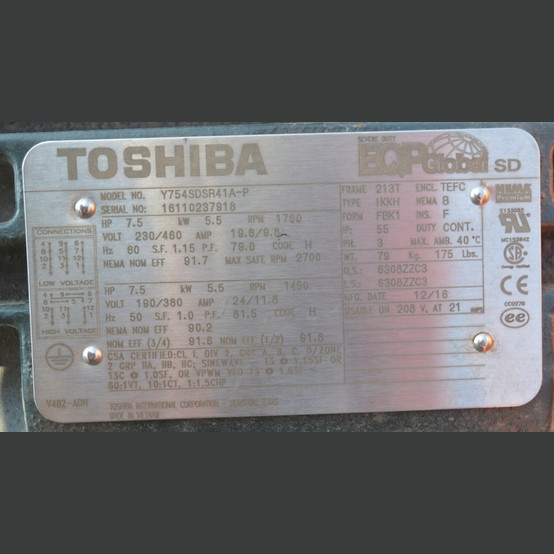

  •  Eddy Current drive motor:
    • Toshiba7.5 HP
    • Volts: 230/460 VAC
    • RPM: 1760
  • Conveyor Belt drive Motor:
    • Toshiba gearhead
    • 3 HP
    • Volts: 230/460 VAC
    • RPM: 1760
    • 15-1 Ratio Reducer
    • Output speed: 117 rpm
    • Directly coupled to head pulley.

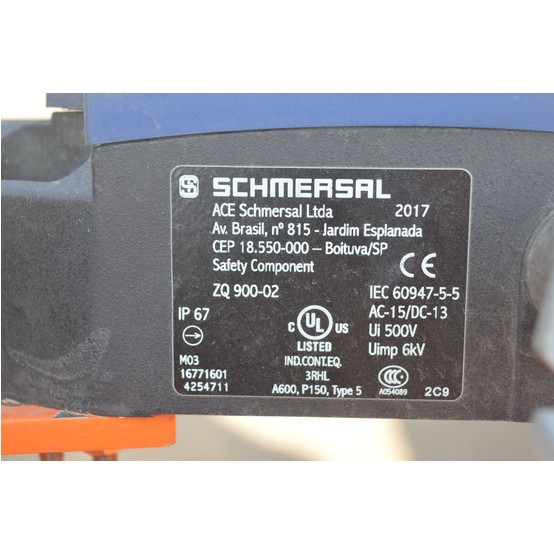

  • Schmersal Conveyor Belt Emergency Shut Down on both sides of belt.
    • Model: ZQ 900-02
    • VAC: 230

 Covered discharge section:

    • Dimensions: 66 in. Wide x 67 in. Long x 65 in. High

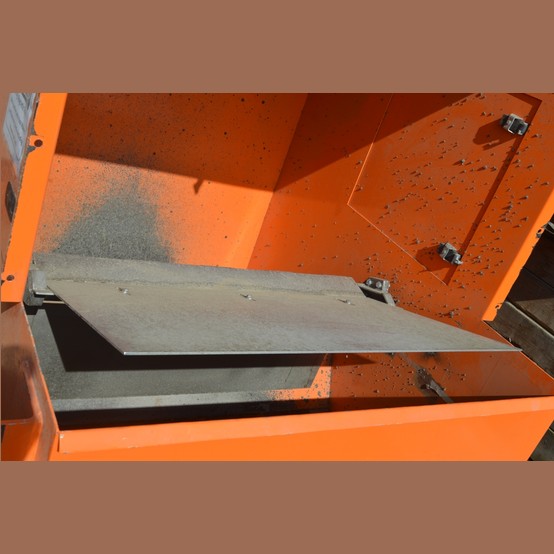

    • Internal Stainless Steel Separator gate (manually adjustable).

 System also comes Complete with:

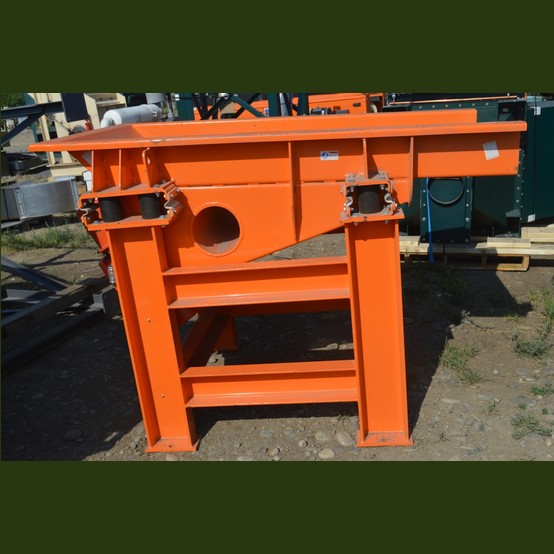

    • Eriez Vibrating Pan feeder
      • Model: Brute
        • Style: 201113167
      • 34 in. Wide x 65 in. Long pan
      • Dual Vibrator Motors
        • 1.61 HP
        • 230/460 VAC
        • RPM: 900
  • Location: British Columbia, Canada
