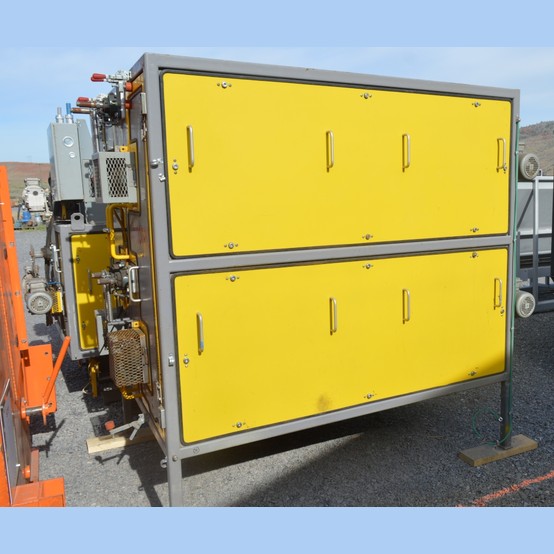

• Model: HTP(25)231-150
• Lower Section
  • Four Reducers and Motors One for each Roller
  • Nord Reducer
    • Model: SK1SI63
    • Ratio: 5:1
  • Nord Motor
    • 1 HP
    • VAC: 230/460
    • RPM: 1650
  • Roller Dimensions: 12 in. Dia. x 61 in. Long
    • Qty: 4
  • Emergency Shut Down Button
• Upper Section
  • Three Reducers and Motors
  • Nord Reducer
    • Model: SK1SI63
  • Nord Motor
    • 1 HP
    • VAC: 230/460
    • RPM: 1650
• Control Unit
  • Model: HTP(25)231-150
  • ENM Hour Meter: 10004.6 Hours
  • Start/Stop Modules with Digital Read Display
  • 4 x Delta VFD ø22M43b - SVC Micro Drives
    • 3 HP
    • Input Volt: 480 ACV
    • Input Volt Range: 380-480 ACV
    • Output Volts: 0.480 VAC
    • Frequency/Hz: 0-400
  • 6 x Allen Bradley Contact/Start wth O/L
    • Model: 193-TIAPM
    • VAC: 600
    • Amps: 38 FLA
    • Oil Setting Range: 1.4 - 2.0 Amps
  • Puls Power Supply
    • Model: SL10
    • Input ACV: 400-500
    • Output DCV: 24 110 Amps
  • Schaffner Power Line Filter
    • Model: FN3275H-20-29
    • 3 x 520/300 VAC
    • 50/60 Hz
  • 6 Drop Out Timers/Amp Readers
  • 2 x ABB
    • Model: TRM 24D2Y30
    • 1-3 Seconds
  • 2 x Potter Brumfeild Time Delays
    • Model: CSL-38-310 10
  • 2 x Outotec Amp Drop Outs
    • 6.0 - 18
• Location: British Columbia, Canada
