• 103 units available as a batched.

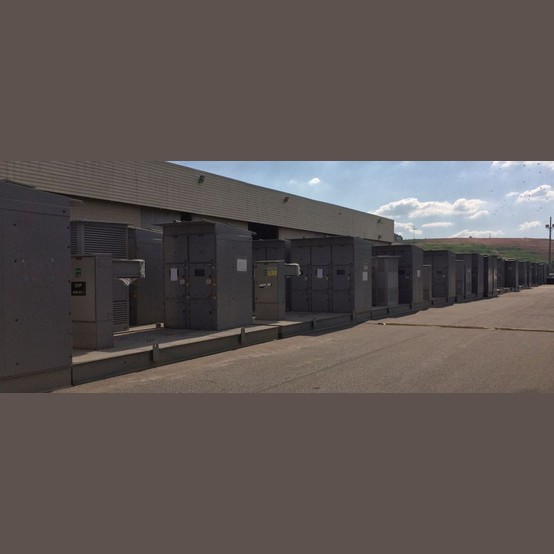

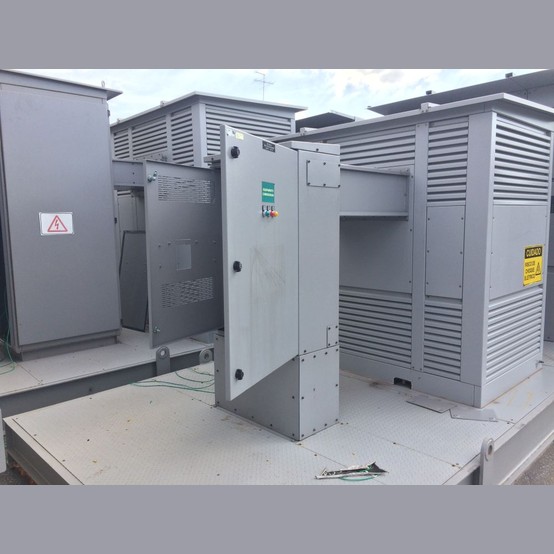

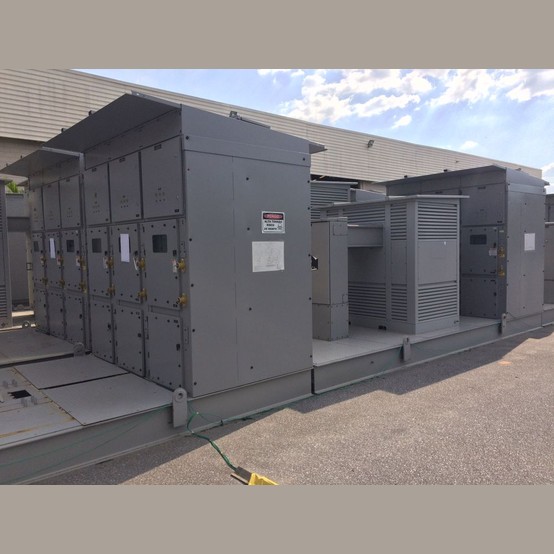

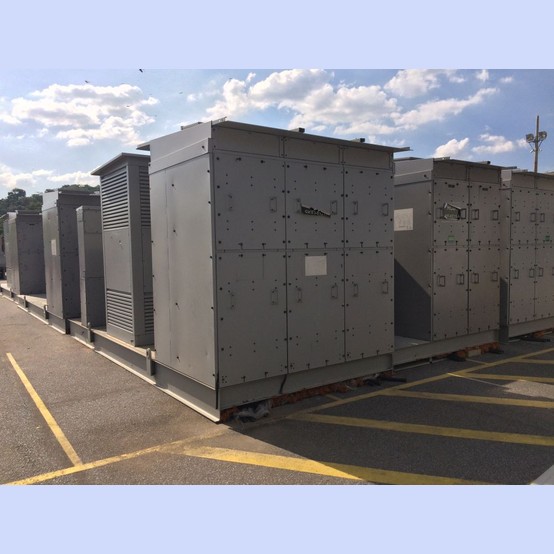

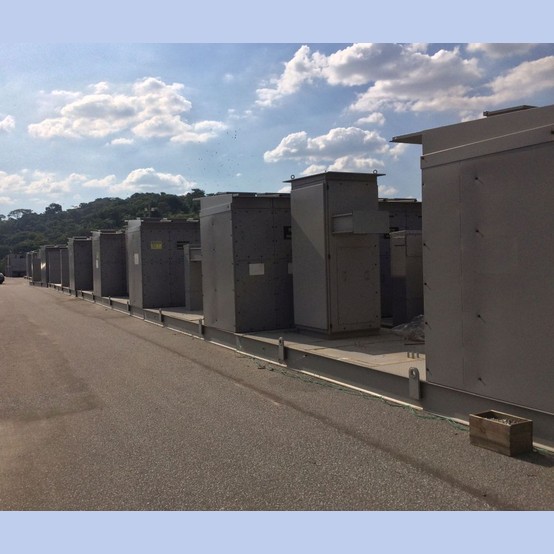

• Skid power solution guarantees safe, reliable network connection in a 13.8 kV/380-220V skid-based plug-and-play substation.
• Units house all necessary components of a complete substation such as power transformer, electrical equipment, protection, and control systems, auxiliary AC/DC services.
• 380/220V Output (other voltages as per customer option).
• Applicable Areas:
  • Power Plants.
  • Mining.
  • Industry.
  • Temporary Installation.
  • Events.
  • Revamps.
  • Working Sites.
• Transformer Specifications:
  • Primary Voltage: 13.8/13.2/12.6/12.0/11.4 kV.
  • Power: 2000 – 1500 – 1000 – 750 500 300 kVA.
  • Primary power connections: Triangle.
  • Secondary power: 380/220V.
  • Secondary Power Connections: Star with neutral.
  • Connection group: DYN 1.
  • Frequency: 60 Hz, 50 Hz optional.
• Location: South America.
• Contact for more information.
