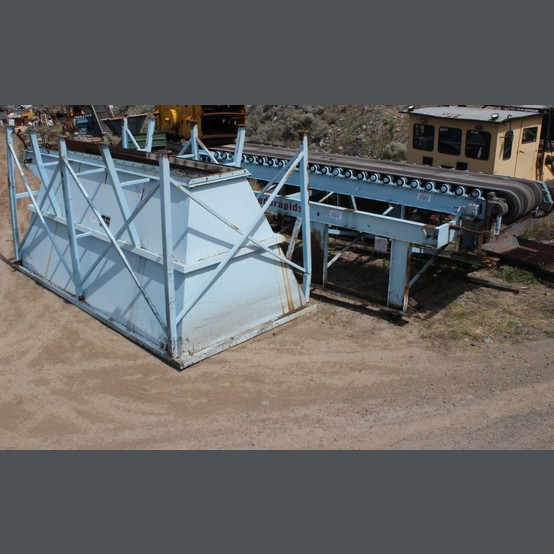

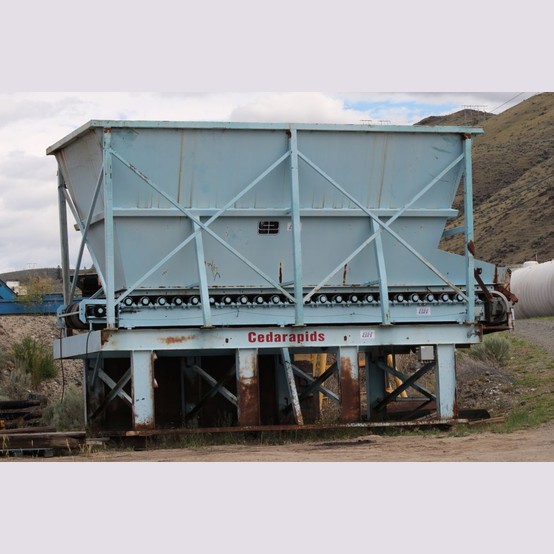

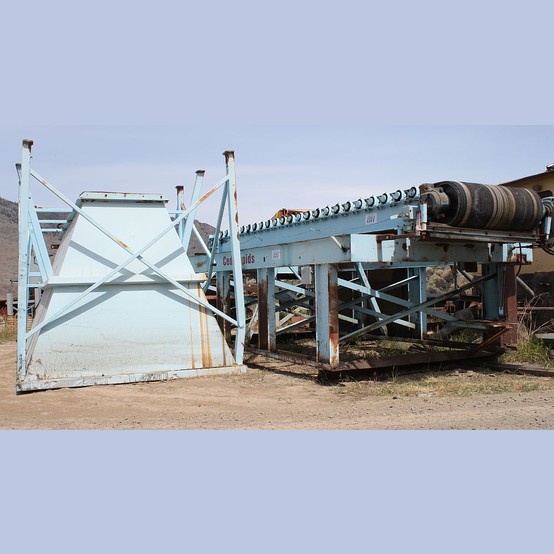

• Cedarapids 35 Yard Belt Feeder.
  • Hopper Dimensions:
    • 20' long x 9' wide x 8' high.
  • Belt Dimensions:
    • 48" wide x 23' long
  • 18” diameter rubber lagged head pulley.
  • Self-cleaning tail pulley.

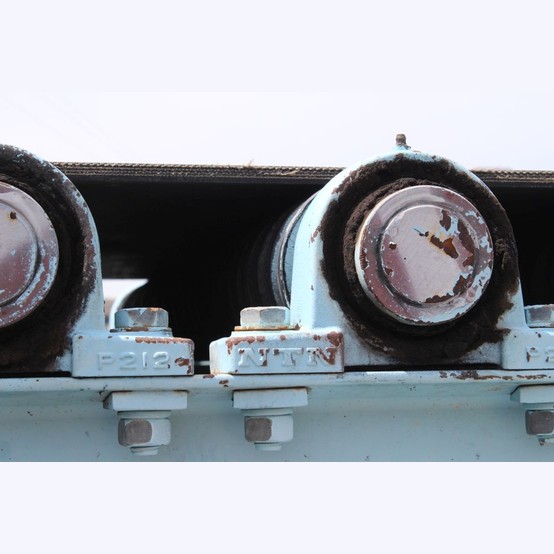

  • 5” diameter rubber impact rollers.
  • On 10.5” centers.
  • 6” diameter return rollers.
  • ½” thick 4 ply belting.

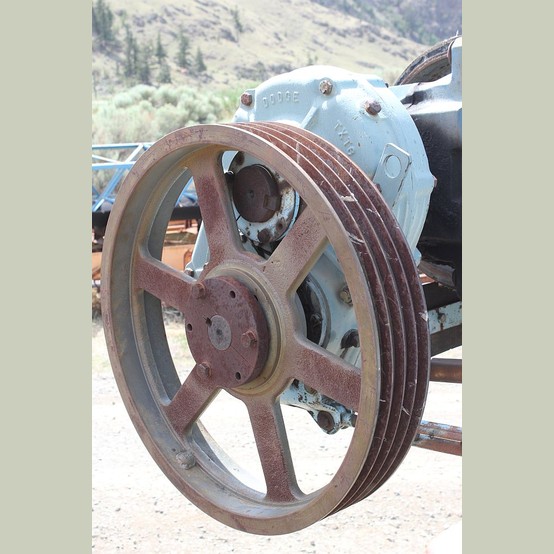

  • Dodge TXT625 shaft mount reducer

• Whole unit mounted on 12” X 5” I-Beam frame.
  • With channel skid and 3” x 3” angle cross bracing.
• Hopper comes off feeder for transport
• Would need 2 trucks to ship
• Over all dimensions of feeder
  • 23 ft. long
  • 9 ft. x 10 in. wide
  • 5 ft. x 9 in. high

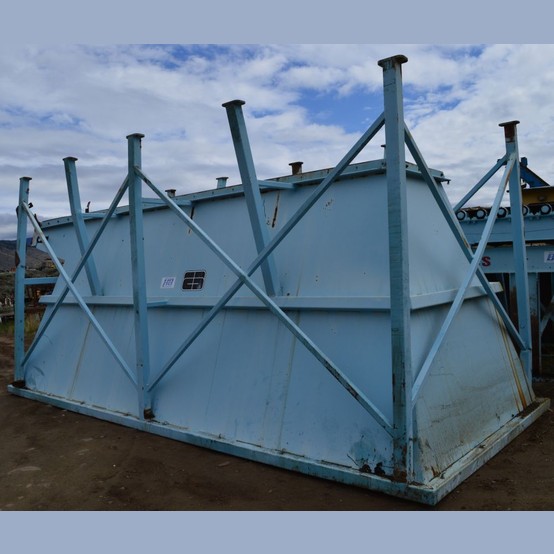

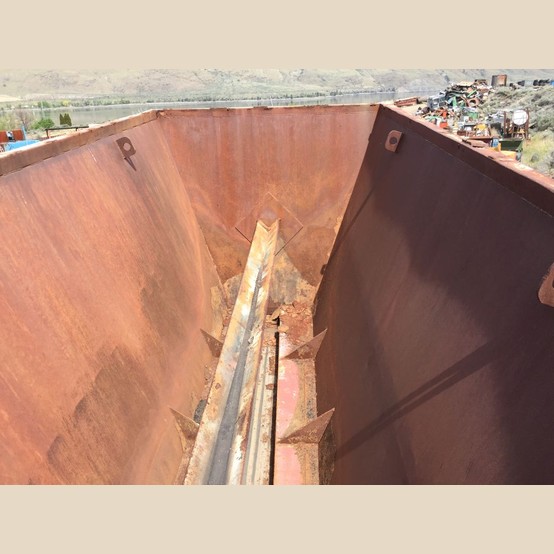

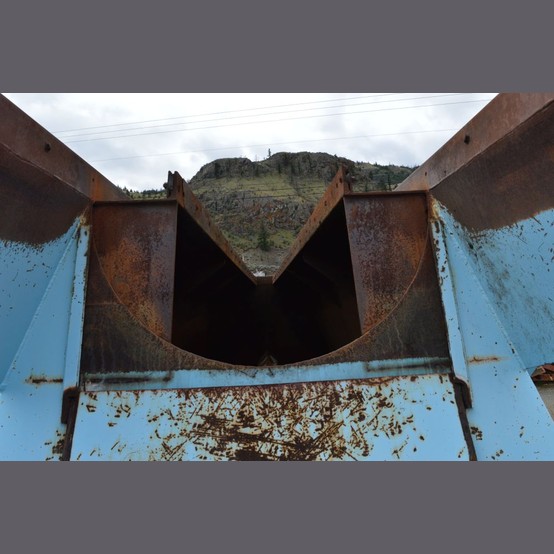

• Over all dimensions of hopper
  • 23 ft. long
  • 9 ft. x 6 in. wide
  • 10 ft. high

Please contact us for additional information.
