GEHO DHC Backfill Plant

  • Equipment Included:
    • GEHO Pump Model DHC 21140-8D
    • Hydraulic Power Pack
    • Rapid R-2000 Hi-Speed Pan Mixer
    • Rapid Automatic Jet Wash System

  • Application:
    • Backfill plant pumps up to 500 tonnes of slurry and 20 tonnes of cement underground per day, depending on requirements.
      • Slurry is stored in a high density backfill tails thickener.
        • 31 m diameter x 3.6 m working depth.
      • Cement is stored in 2, 80 ton cement silos.
      • Slurry and cement are mixed together in:

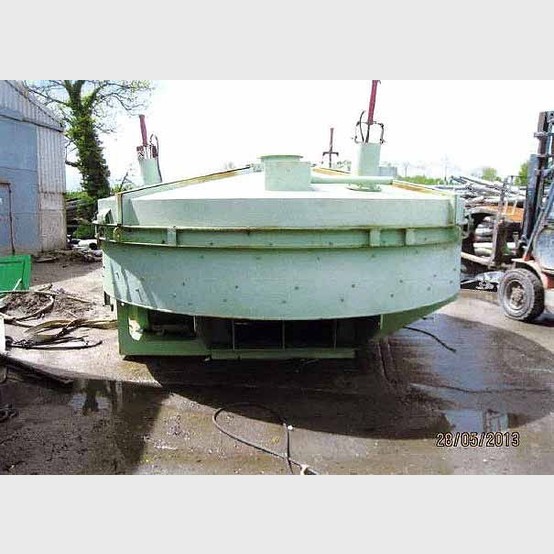

        • Rapid R-2000 hi-speed pan mixer.
          • Fitted with a Rapid automatic jet wash system to maximize performance.
      • Mixture is then pumped down the mine at a density of 70% solids by:

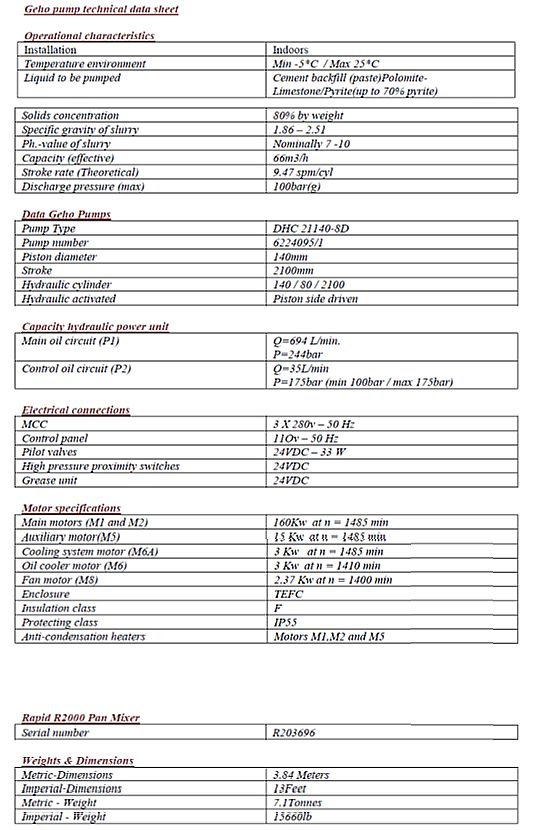

        • Hydraulic driven GEHO pump.
          • Model: DHC 21140-8D.
            • Capacity: 66 m³/hr.
            • Discharge: Max. 100 BAR (1450 psi)

Please contact us for more information.
