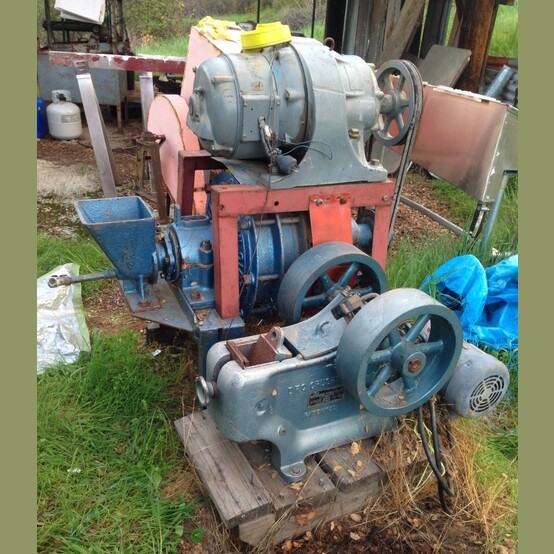

Crushing and Concentrating Package

• Consisting of:
  • 20in x 10in Gibson Mill
  • 4.5in Denver Jaw Crusher
  • Wilfley Lab Concentrating Table
  • All Motors and Control


• W.W. Gibson Combination Elliptic Roll and Ball Mill
  • Size: 24in Dia. X 18in Long
  • Feed: Spout Feed
  • Capacity: 12 Ton
  • Drive: 5HP Electric Motor
  • Mounted on Stand with Overhead Motor Mount
  • Will Take the Mine Run of Ore, Crush Grind and Classify in a Single Pass
  • Horsepower Consumption Over 1/3 Less than Ordinary Ball Mills


• 4.5in Denver Fire Clay Jaw Crusher
  • With 3 or 5 HP Motor


• Wilfley 13-B Oversize Lab Table
  • Size: 24in x 50in Deck
  • Stroke: 0.25-0.5in (6-13mm)
  • Stroke RPM: 250-350
  • Max Capacity: 250 Lbs. Per Hour
  • With Table Support and Head Motion
  • In Good Condition


• General Electric 5HP Induction Motor with Controls
  • Voltage: 230/460 Volt
  • Current: 13.4/6.7 Amps
  • Speed: 3500 RPM
  • Frequency: 60Hz
  • Start/Stop Button
  • Circuit Breakers - 30 Amp, 3-Pole


• Location: Southwest USA
