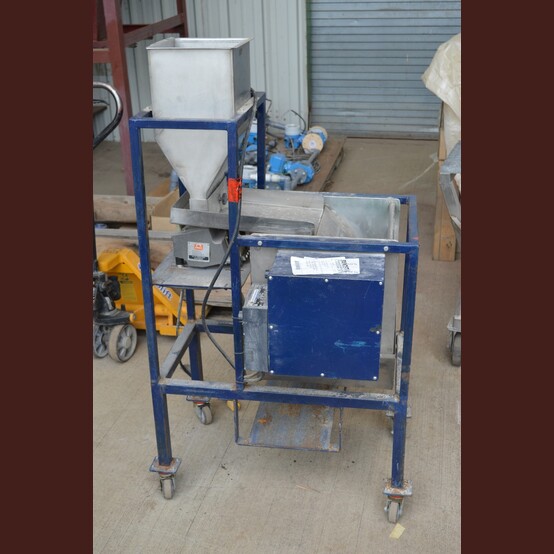

Eriez 10 in. Dia. Laboratory Magnetic Separator

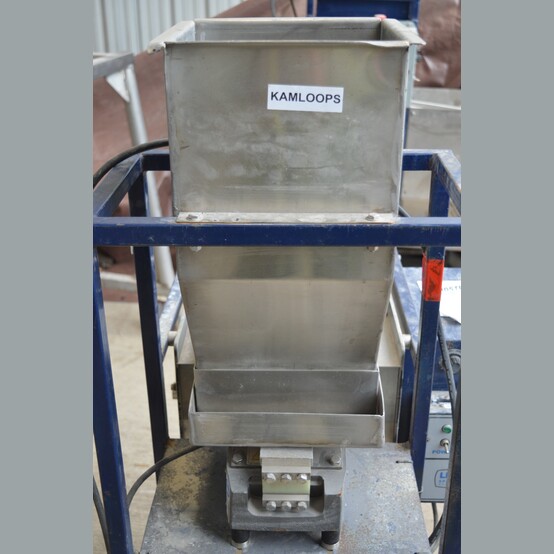

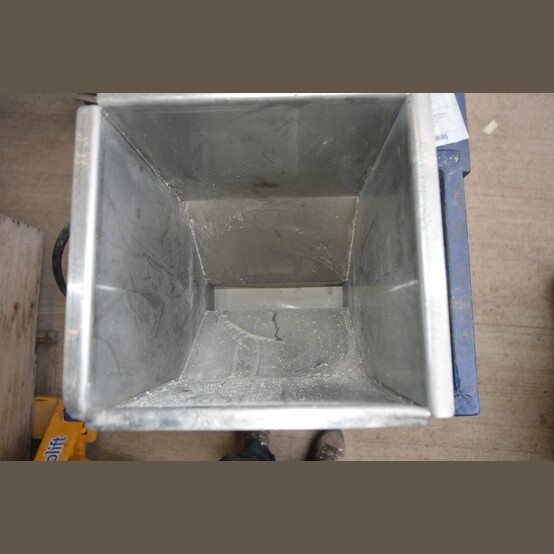

• Feed Hopper : 9.5 in. X 9.5 in. X 18 in. Deep
  • 2 in. X 9.5 in. Slotted Discharge
  • With Manual Adjust Bottom Flow Control Gate

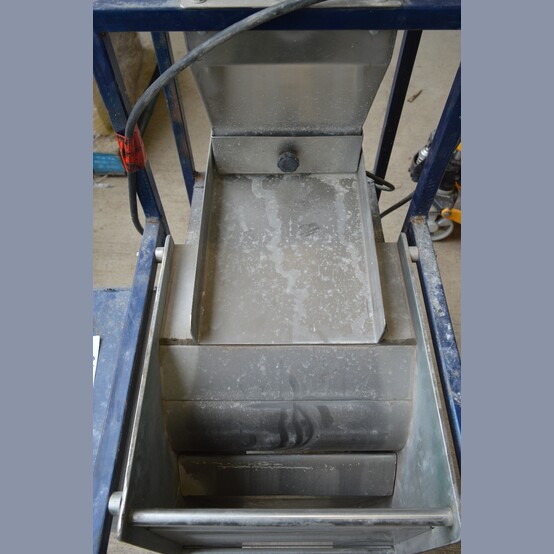

• Eriez Vibrating Pan Feeder
  • Model: 26C
  • 10 in. Wide X 17 in. Long Discharge Pan
  • Voltage: 115 Volts
  • 1.1 Amps
  • Rheostat Speed Control

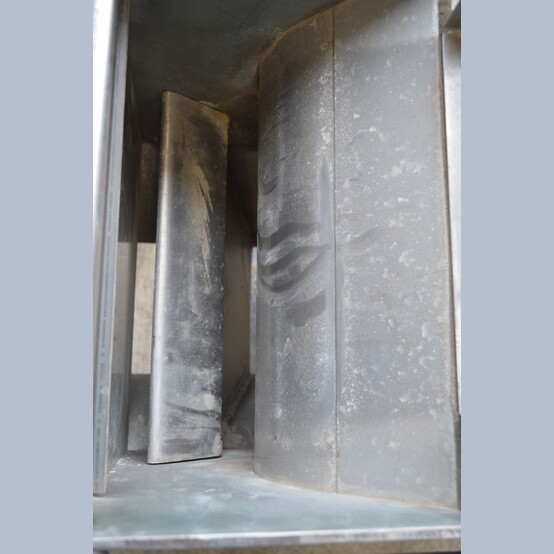

• Manual Adjust Magnetic/Nonmagnetic Material Divider
• Magnet Drum: 10 in. Dia. x 14 in. Wide
  • Magnetic strength 800 gauss
  • Driven by a Leeson 1/8 HP Gearhead Motor
  • 90 Volts DC
  • With Rheostat Speed Control

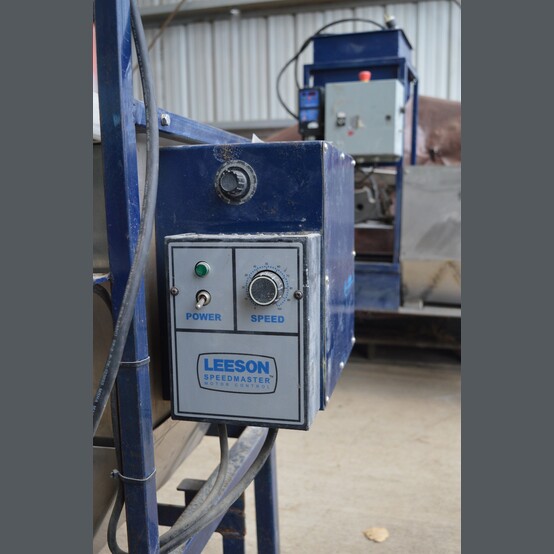

• Leeson Speed Master Motor Control

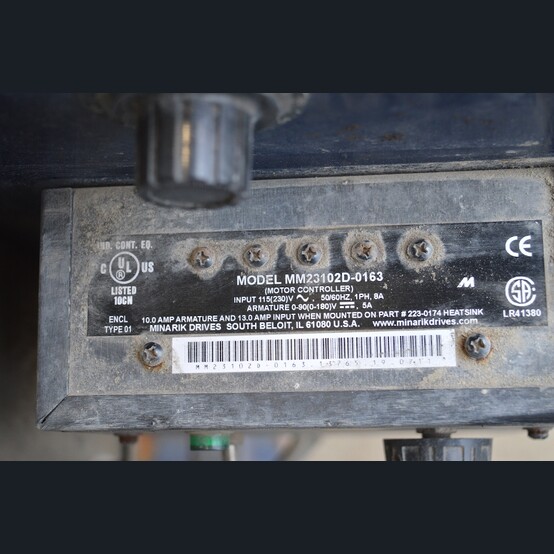

  • Model: MM23102D-Q163
  • Input Voltage: 115 ACV
  • Output Voltage: 0-90 DCV
• All Material Contact Points Stainless Steel
• Mounted on Angle Iron and Square Tube Fabricated Frame
  • With Caster Wheels


• Location: Savona, British Columbia, Canada
