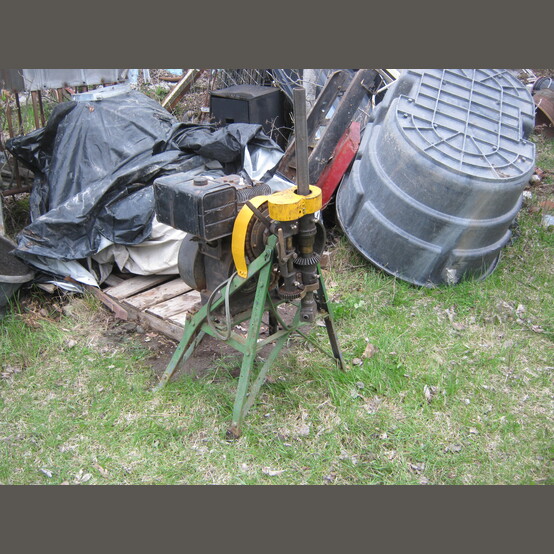

Boyles Bros. X-Ray Diamond Core Drill

Quantity: 2 Drills Available

• Make: Boyles Bros.
• Model: X-Ray
• Type: Diamond Core Drill
• Condition: Used Condition - Drill Heads are Complete and in Good Shape, as are the Frames

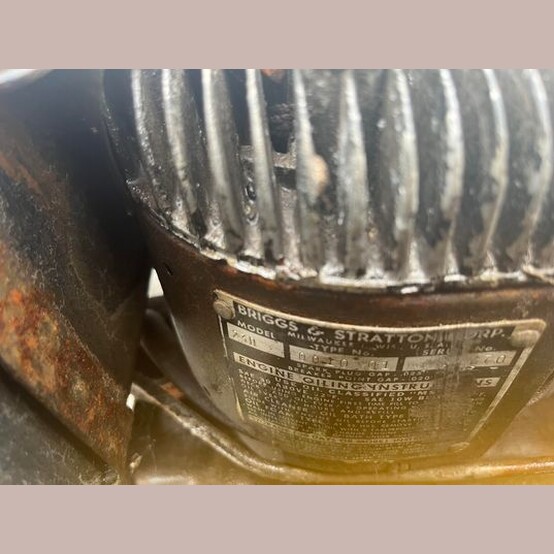

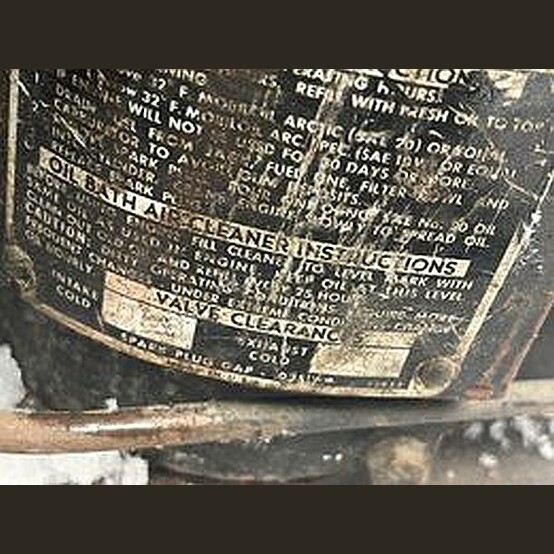

• Drives: (3) Briggs-Stratton 9HP Engines
  • One Engine is for Parts

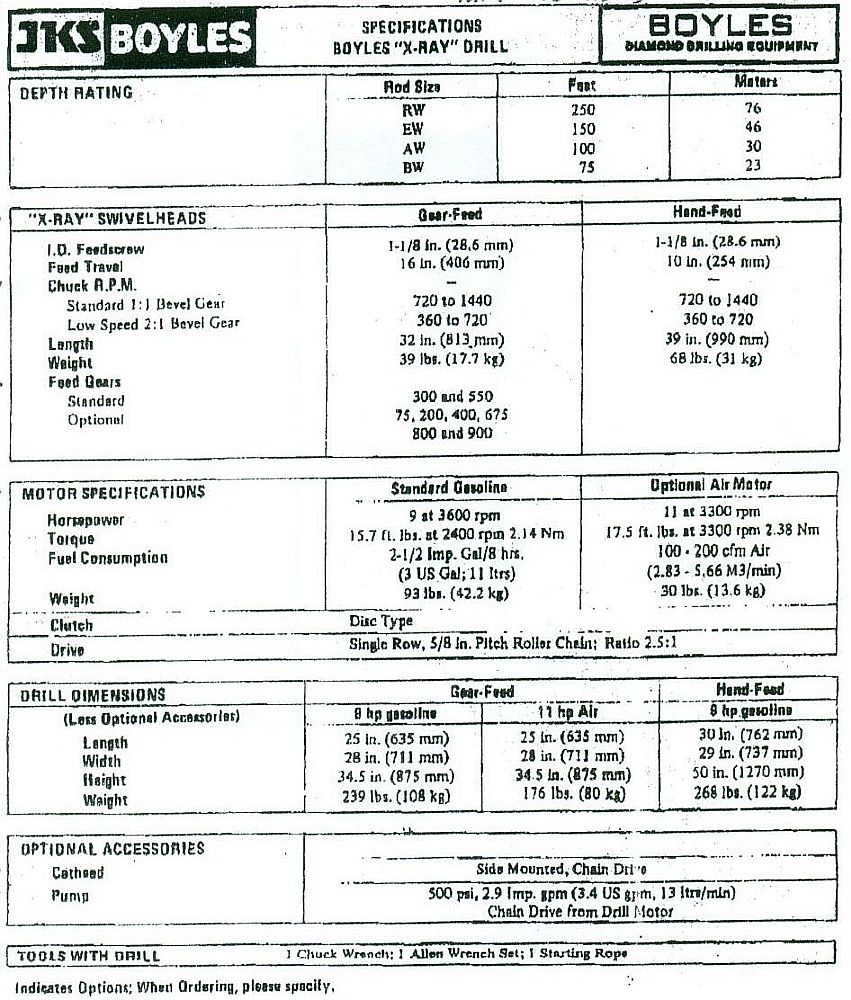

• General Specifications:
  • Depth Rating:
    • RW: 250ft (76m)
    • EW: 150ft (46m)
    • AW: 100ft (30m)
    • BW: 75ft (23m)

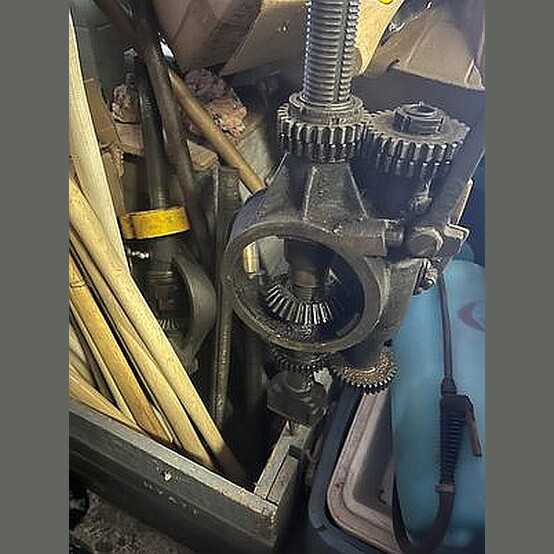

  • "X-RAY" Swivelheads:
    • Gear-Feed:
      • I.D. Feedscrew: 1-1/8in (28.6mm)
      • Feed Travel: 16in
      • Chuck RPM:
        • Standard 1:1 Bevel Gear: 720 to 1440 RPM
        • Low Speed 2:1 Bevel Gear: 360 to 720 RPM
      • Length: 32in (813mm)
      • Weight: 39 Lbs. (17.7kg)
      • Feed Gears:
        • Standard: 300 RPM and 550 RPM
        • Optional: 75, 200, 400, 675, 800 and 900 RPM


    • Hand-Feed:
      • I.D. Feedscrew: 1-1/8in (28.6mm)
      • Feed Travel: 10in (254mm)
      • Chuck RPM:
        • Standard 1:1 Bevel Gear: 720 to 1440 RPM
        • Low Speed 2: 1 Bevel Gear: 360 to 720 RPM
      • Length: 39in (990mm)
      • Weight: 68 Lbs. (31kg)


• Location: Eastern Canada
