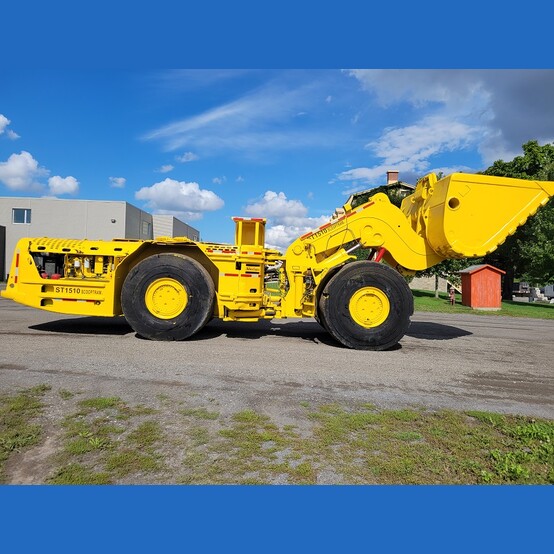

Atlas Copco 1510 Scooptram

  • Make: Atlas Copco
  • Model: 1510
  • Year: 2006
  • Condition: Excellent
  • Hours: 7600 Hours
  • Bucket Size: 10 Yard
  • Capacity: 15,000 kg (33,075 Lbs)

  • Torque Converter: Automatic Power Shift with Integral Converter
  • Engine: Detroit Diesel Series 60DDEC (400HP, 1,400 ft/Lbs)
  • Transmission: Spicer Series 40,000
  • Axles: Spicer Series 53R - Spiral Bevel Differential, Full Floating, Planetary Wheel End Drive
  • Brakes: SAHR®
  • Tires: 29.5 x 25, L-5S (Tubeless Nylon, Smooth Tread)
  • Turning Angle: 85˚ (42.5˚ Each Way)
  • Degree of Oscillation: Total of 16˚ (8˚ each side) - Rear Axle, Trunnion Mounted
  • Canopy: MSHA/ROPS/FOPS Canopy - with Integrated Rib Roll Protection

  • Overall Dimensions:
    • Length: 11,406mm
    • Width: 2920mm (With Bucket), 2613mm (No Bucket)
    • Height: 2653mm
    • Weight: 41,033 kg (90,478 Lbs)

  • Additional Notes:
    • Dump and Hoist Control Pilot-Operated, Joystick
    • Exhaust Conditioner Silencer & Purifier
    • Side Seated Operator for Bi-Directional Operation
    • Electrical: System Voltage 24 Volt Starting, 24 Volt Accessories
    • Static Tipping Capacity: 30,112kg (66,400 Lbs)
    • Breakout Force: Hydraulic, 25,598kg (56,443 Lbs)
    • Breakout Force: Mechanical, 20,517kg (45,240 Lbs)

  • Location: Canada
