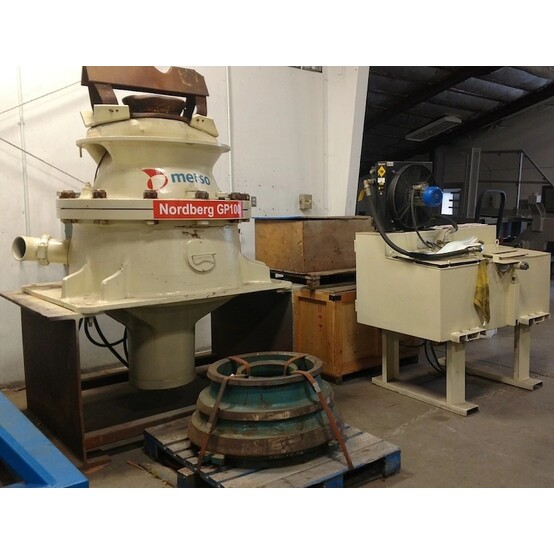

Metso GP100 Cone Crusher

  • Make: Metso
  • Model: GP100
  • Year: 2006
  • Stroke Sizes: 16, 20, and 25 mm
    • Can be Changed by Changing Eccentric Bushing
  • Accepted Feed Size: 1.5 to 6 in.
  • Max Capacity: 105 TPH (116 STPH)
  • Throughput Range: 40 - 115 tons/hrs
  • Throughput at Closed Side Settings:
    • 6 mm (1/4 in.): 39 - 55 TPH
    • 8 mm (5/16 in.): 44 - 72 TPH
    • 10 mm (3/8 in.): 49 - 80 TPH
    • 15 mm (19/32 in.): 55 - 105 TPH
    • 20 mm (25/32 in.): 72 - 115 TPH
  • Weight: 15,000 Lbs (5800 Kg)

  • Includes:
    •  Severe Duty WEG Induction Motor
      • Power Output: 100 HP (75 kW)
      • RPM: 1775 RPM
      • Frequency: 60Hz, 3 Phase
      • Voltage: 575 Volts
      • Amperage: 91.6 Amps
      • Frame: 404T
      • Weight: 1100 Lbs Shipping Weight
  • Hydraulic Adjustment and Control System
  • Lube and Hydraulic Adjust Motors
  • Unused Set of Bowl and Mantle Liners
  • Adjustable Eccentric
  • Location: Western USA
