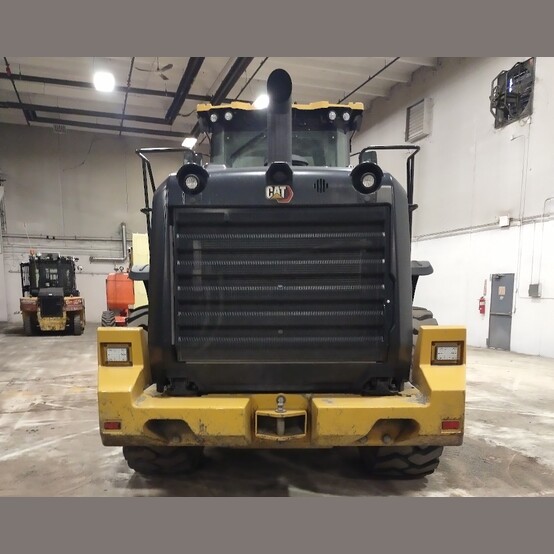

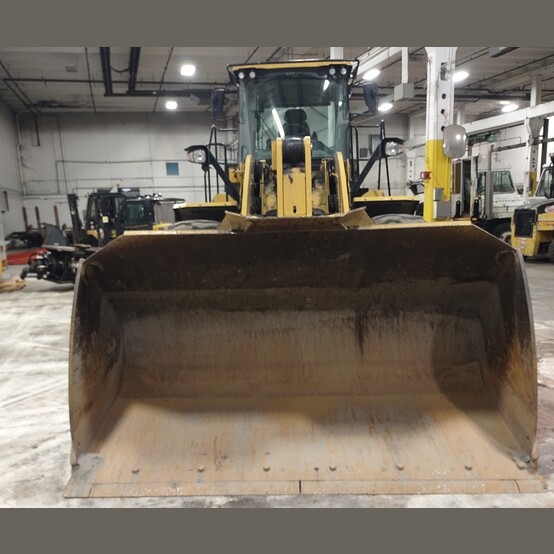

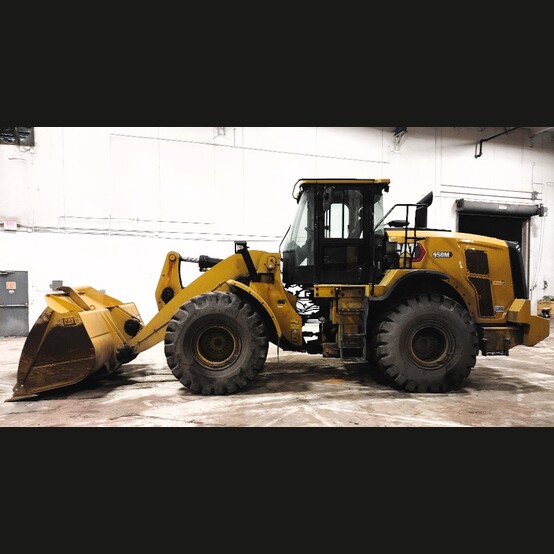

2021 CAT 950M Wheel Loader

• Make: Caterpillar
• Model: 950M
• Year: 2021
• Hours: 3,698 Hours
• Condition: Used, Reported in Good Condition
• Fuel: Diesel
• Bucket:
  • Capacity: 4.75yd³
  • Width: 126in
  • Vertical Pin Lock
• ROPS Equipped
• Air Conditioner
• All Wheel Drive
• Tires: Firestone 23.5-25, 80% Tread

• General Model Specifications:
  • Engine:
    • Engine: CAT C7.1
    • Max Net Power @2,100RPM: 171kW (230HP)
    • Max Net Torque @1,300RPM: 1163Nm (858 ft-lb)
    • Displacement 7.01L (428in³)


  • Operating Specifications:
    • Static Tipping Load, Full Turn, With Tire Deflection: 11,005kg (24,262lb)
    • Breakout Force: 181kN (40,690lbf)


  • Transmission:

    • Gears: 5 Gears Forward, 3 Gears Reverse
    • Top Speed:
      • Forward: 39.5km/h (24.5mph)
      • Reverse: 25.7km/h (16.0mph)


  • Hydraulics System:

    • Pump Type: Variable Axial Piston
    • Max Output @2,150RPM: 286L/min (76gal/min)
    • Max Operating Pressure: 29,300kPa (4,250psi)


  • Overall Dimensions:

    • Length: 8,199mm (26ft 11in)
    • Width: 2,814 mm (9ft 3in)
    • Height: 3,747mm (12ft 4in)
    • Weight: 19,213kg (42,357lbs)


• Location: Eastern USA

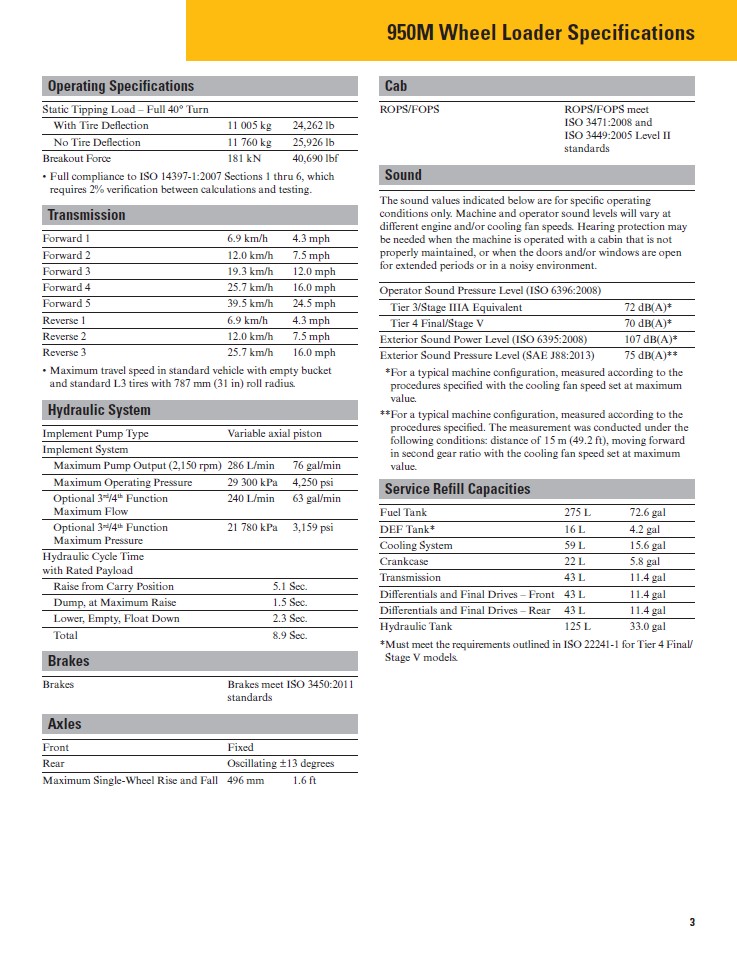

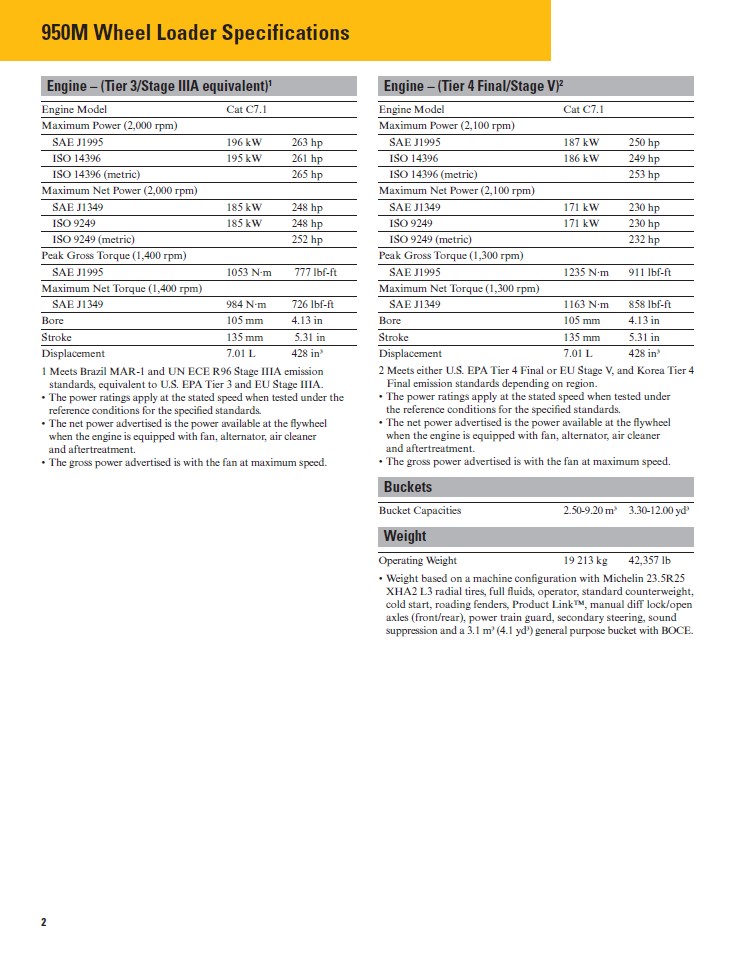

View Spec Sheet Below
