2014 John Deere 824K Wheel Loader ID: 1135834

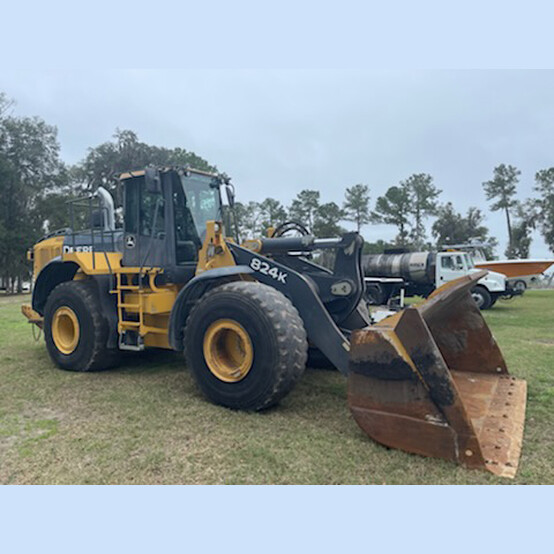

2014 John Deere 824K Wheel Loader

  • Make: John Deere
  • Model: 824K
  • Year: 2014
  • Hours: 13,513
  • Condition: Strong Runner and Operator
  • Bucket Capacity: 4.6 m3 (6.0 cu. yd.)
  • Breakout Force: 17,534 Kg (38,655 lbs.)
  • Tipping Load, Straight: 17,105 Kg (37,711 lbs.)
  • Tipping Load, 40° Full Turn: 14,593 Kg (32,172 lbs.)
  • Canopy: EROPS
  • Auto-Lube Equipped
  • Ride Control

  • Engine
    • Make: John Deere
    • Model: PowerTech™ Plus 6135H
    • Cylinders: 6
    • Power Output: 333 HP (248 kW) at 1,600 rpm
    • Torque: 1619 Nm (1,194 lb.-ft.) at 900 rpm

  • Transmission:
    • Make: John Deere
    • Model: Countershaft-Type PowerShift™
    • Torque Converter: Single Stage, Dual Phase with Freewheeling Stator

  • Axles/Brakes
    • Final Drives: Heavy-Duty Inboard-Mounted Planetary
    • Differentials: Hydraulic Locking Front with Conventional Rear
    • Rear Axle Oscillation: 26° (13° Each Direction)

  • Brakes:
    • Service Brakes: Hydraulically Actuated, Inboard Sun-Gear Mounted, Pressure Oil Cooled, Self-Adjusting, Single Disc
    • Parking Brakes: Automatic Spring Applied, Hydraulically Released, Oil Cooled, Multi Disc

  • Overall Dimensions:
    • Length: 9.77 m (32 ft. 1 in.)
    • Width (Bucket): 3.27 m (10 ft. 9 in.)
    • Height: 3.55 m (11 ft. 8 in.)
    • Weight: 26,501 Kg (58,425 lbs.)

  • Location: USA
