38 in. x 45 in. Two Deck Incline Screen

38 in. x 45 in. Two Deck Incline Screen ID: 960022

Need this? Click here Have one? Click here

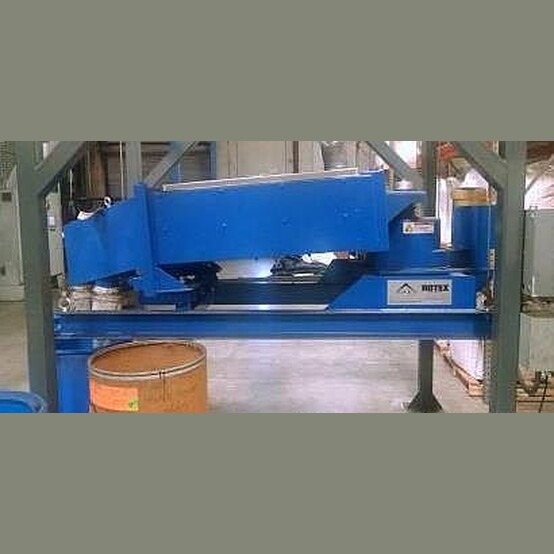

Rotex 38” X 45” Screener.
Model A3S12L-2M.
Two Deck Unit with a Nominal Screen Area of 11.9 Square Foot Per Deck.
Operates at a 2-1/2" Positive Displacement Stroke at 252 RPM.
Aluminum Top Cover,
6" Diameter Inlet,
3 - 6" Outlets:
- Overs.
- Intermediates.
- Fines.
Bolt in Spreader.
Lift-out 10" Diameter Stainless Inspection Ports.
38" x 45" Nominal Prestensioned Screen Panels per Level of Screening.
11 Mesh, 0.018" Diameter, 304 Stainless Steel Wire Screen Cloth 38" x 45" per Panel,
Bonded to the MS Frame.
2 HP, 3/60/230-460 Volt.
1175 RPM TEFC Motor.
-Built 2015.
Unit is in like new condition.
Complete with square tube operating support frame.
Location: Eastern USA
