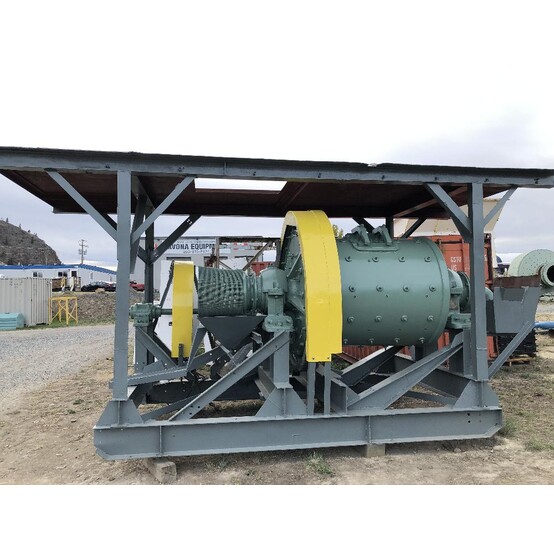

Denver 4' Diameter by 5 Foot Long Ball Mill

Description: Excellent condition Denver Ball Mill. Steel Ball Mills are one of the most precise, reliable and cost effective methods of fine grinding solids in either a wet or dry state. The Steel cylinder is rotated at a predetermined speed that sets the balls into a tumbling and cascading motion which impact the solids in a very predictable and controllable fashion. Mounted on steel operating skid. Freshly Repainted.

Make: Denver

Condition: Excellent

Equipment Details:

                Control Type: Manual

               Motor: 40 HP Electric

               Shipping Dimensions: 20 Ft Long x 8.5 Ft Wide x 9.5 Ft Tall

               Shipping Weight: Approx. 25,000 lbs

General Model Specifications:

  • Rubber Lined
  • Fabricated Scoop Feed with Feed Box
  • Trommel Overflow Discharge
  • Self-aligning Babbitt Bearings
  • Straight cut Bull and Pinion gear
    • 8 Inch Wide
    • Bull Gear: 100 Teeth
    • Pinion Gear: 17 Teeth
    • Complete with Guarding
  • Operating Speed Approx. 29 RPM
  • Belt Drive Configuration
    • Pinion shaft comes with 51" diameter 6-C section drive sheave
  • Supplied with 40 HP Electric Motor
  • Mounted on Steel Operating Skid
    • With Metal Roof
    • Freshly Repainted

Location: British Columbia, Canada
