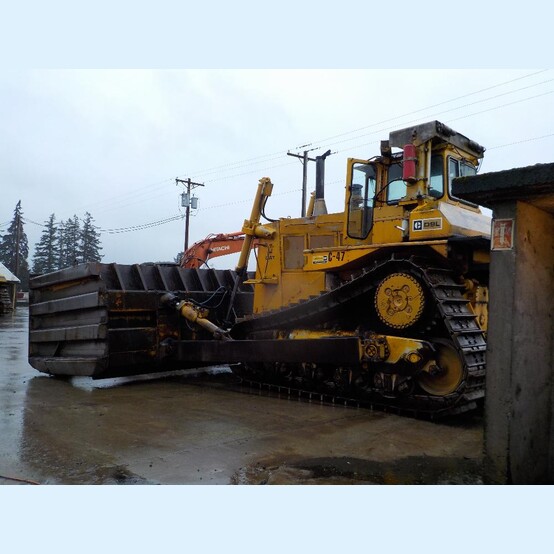

1985 CAT D9L Dozer
- Make: Caterpillar
- Model: D9L
- Year: 1985
- Hours:
- Condition: Runs Great, Strong Transmission, Good Final Drives
- Same Owner Since 2004 - Have Internal Service Records
- General Features
- Raised Undercarriage: Lessens the Strain and Shock Loads to the Drive Sprocket
- 2 Foot Ground Clearance
- Oil-Cooled Disc Brakes and Clutches.
- Enclosed Cab
- Fuel Capacity: 255gal (965 liters)
- Raised Undercarriage: Lessens the Strain and Shock Loads to the Drive Sprocket
- Engine
- Cat 3412
- Cylinders: V-12
- Displacement: 1,649 cu in (27 liters)
- 460 Flywheel HP (343kW)
- Turbo Diesel
- Direct Injection Engine
- Transmission
- Transmission Type: Powershift
- Number Of Forward Gears: 3
- Number Of Reverse Gears: 3
- Max Speed - Forward: 7.6 MPH
- Max Speed - Reverse: 9.4 MPH
- Blade
- Custom Built Low Weight, High Volume Material Blade
- Custom Built Low Weight, High Volume Material Blade
- Undercarriage
- Track Gauge: 8.21ft in
- Standard Shoe Size: 24.02in
- Ground Contact Area: 6696.02in2
- Number Of Track Rollers Per Side: 8
- Ground Pressure: 17.12psi
- Dimensions: 17.5' Long x 10.5' Wide x 14.5' Tall (Without Blade)
- Weight: 114655.9 Lbs
