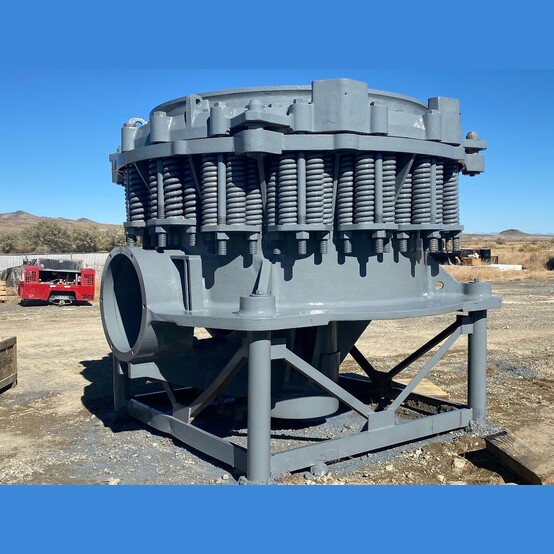

Symons 7 ft. Standard Cone Crusher

• Capacity:
  • 420 TPH With Fine (¾") Discharge (Open Circuit)
  • 1500 TPH Extra Coarse (1½")  Discharge (Open Circuit)


• Feed Opening: 10" to 18.125"
• Discharge Opening: 0.75" to 2.5"
• Approx. Weight: 160,100 Lbs
• Approx. Dimensions: 13' 3" x 10' 5 x 10' 5"
• Hydraulic Lock and Adjust
• Crusher is Complete with:
  • 500 HP Motor
  • Lubrication System
• 1990's Model Machine
• Main Frame and Liners Replaced between 2004-2008
• Liners have been replaced multiple times since
• Crusher has been Disassembled, Components Inspected, and is Ready For Transport
