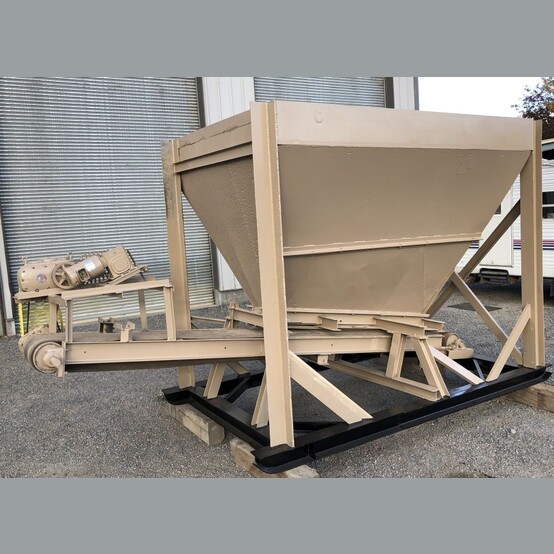

10 Yard Feeder Hopper(ideal for fine ore and aggregate)

• 9.5' x 7' x 7.5' Deep Hopper
• 6" Wide x 7' Long Discharge with 3 Manually Adjustable Flow Control Slide Gates
• Slide Gates are 27" Long
• 18" Wide x 15' Long Channel "Flat Belt" Discharge Conveyor
• 9" Dia. Plain Steel Head Pulley
• 9" Dia. Plain Steel Tail Pulley (With Belt Tension Take-Ups)

Reduction Drive System

• 1 HP Right Angle Gearhead Motor
  • Suddeutsche TEFC
  • 230/460 Volt
  • 3 Phase
  • 1640 RPM
• Belt Driving a Link-Belt Manual Vari-Speed Reducer
  • Size: H-2
  • 4:1 Ratio

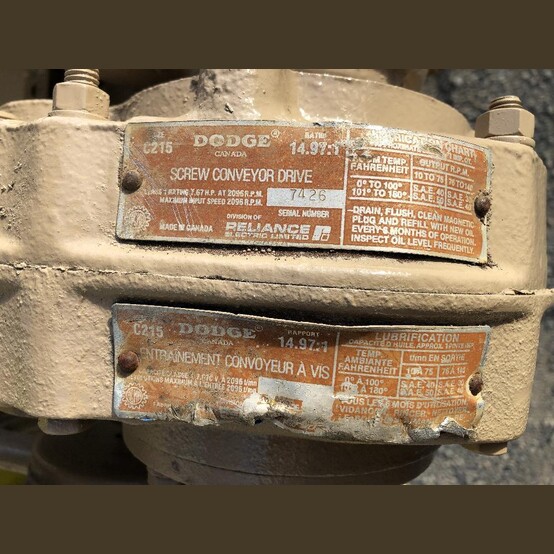

• Belt Driving a Dodge Shaft Mount Reducer on Head Pulley
  • Size: C215
  • 15:1 Ratio


• All Mounted on 6" x 6" H-Beam Skid
• Dimensions: 16.5' Long x 7' Wide x 9' High
• Weight: 6,500 Lbs


• Location: Savona, British Columbia, Canada
