Cemco Turbo KDEV80 Vertical Shaft Impact Crusher ID: 1087086

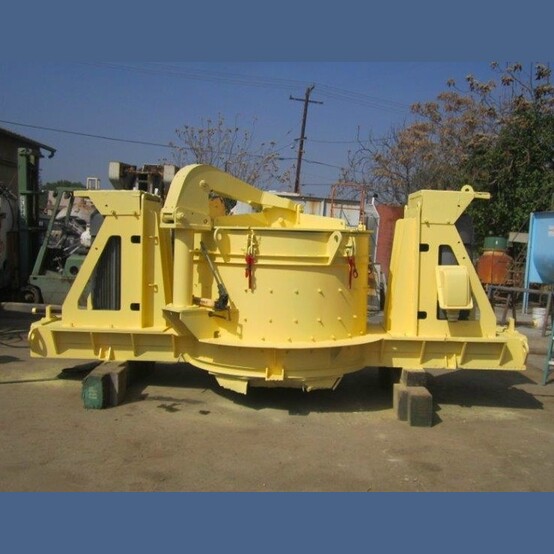

Cemco Turbo Vertical Shaft Impact Crusher KDEV80

Description: This Cemco Turbo VSI is in excellent used condition. The Cemco Turbo VSI is used to produce intermediate and fine crushed product.

Make: Cemco Turbo

Model: KDEV80, Turbo80

Condition: Excellent Used Condition

Equipment Details:

                Control Type: Manual

                Motor: V-Twin Setup- 250 HP and 150 HP, 1785 RPM, 460V

                Shipping Dimensions: Approximately 227.5in Long x 83in Wide x 116in Tall

                Shipping Weight: 25,200 LBS (11,431KG)

General Model Specifications:

  • Production Rate= 200-400 TPH

  • Crushing Chamber
    • Size- 6ft. Diameter x 4ft. Sidewalls
    • Max Feed Tonnage- 275 TPH
    • Product Fed Through 15in Diameter Opening
    • Feed Size
      • Rotor= 2in-2.5in
      • Shoe Table= 4in
    • 35in Diameter Superchipper™ Rotor
    • Heavy Duty Anvil Ring
    • 36in x 15in Split Discharges

  • Motors Twin Drives thru V-belt Assemblies "V-Twin"
    • Teco Motor
      • 250 HP
      • 1785 RPM
      • 460 Volts
      • 3 Phase, 60 Hz
    • Teco Westinghouse
      • 150 HP
      • 1785 RPM
      • 460 Volts
      • 3 Phase, 60 Hz

  • Top Cover Removable with swing assembly, Controlled Manually
  • Location: South Western USA
