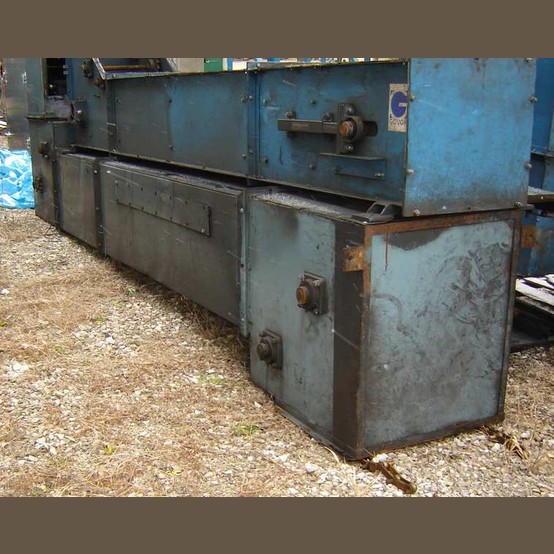

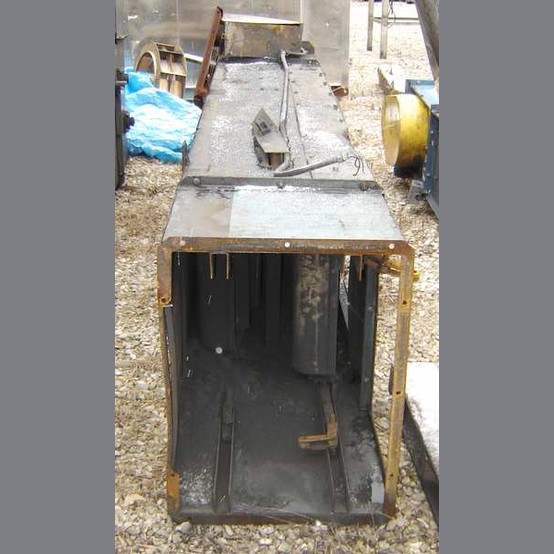

- 3 sections.
- 5 ft. 3 in. horizontal section.
- 15 ft. 4 in. vertical section.
- 12 ft. horizontal section to discharge.
- Carbon steel construction.

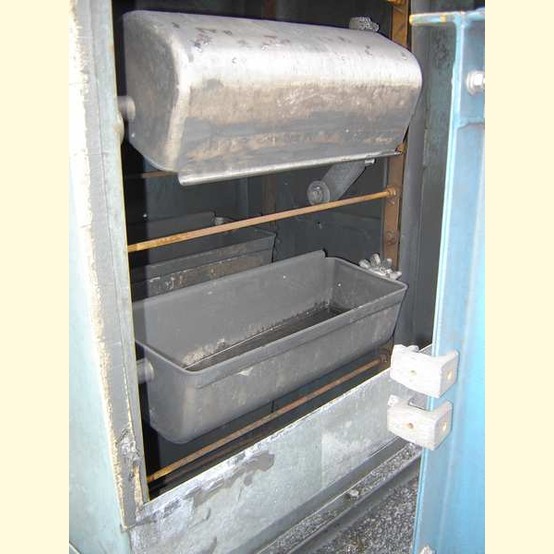

- Molded plastic buckets.
- 17 in. wide x 6 in. high x 5 in. deep.
- Mounted to chain with 12 in. centers.

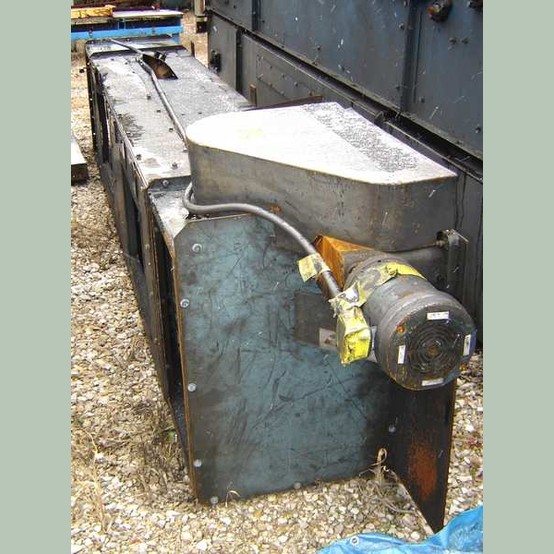

- Reliance 1 hp motor.
- 1,725 rpm.
- 3 phase.
- 60 Hz.
- Drive is right angle chain type with adjustable tension take up.
Please contact us for more information.
