Vickers PVH74C C25 31 Piston Pump ID: 1210933

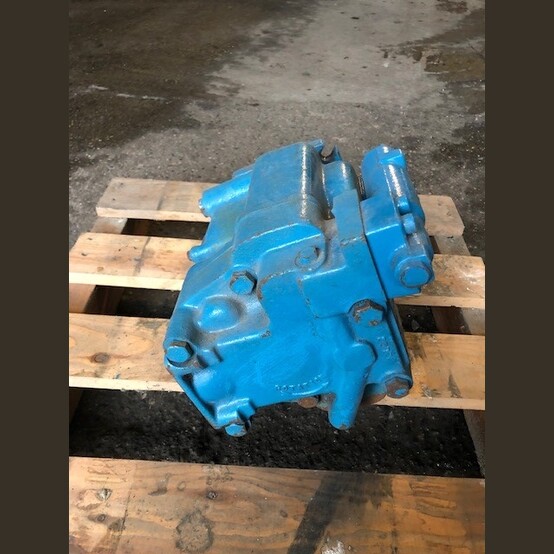

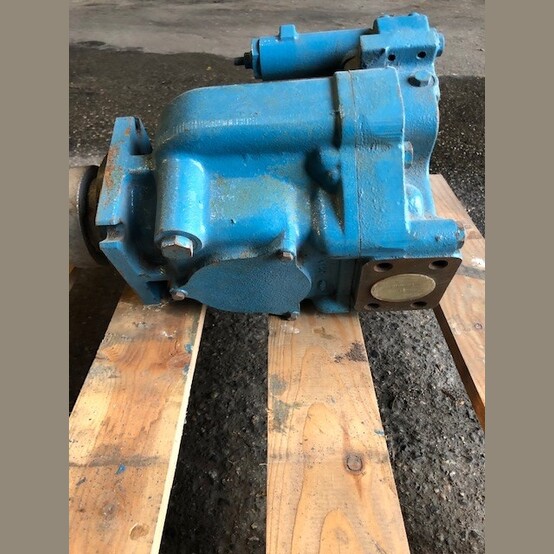

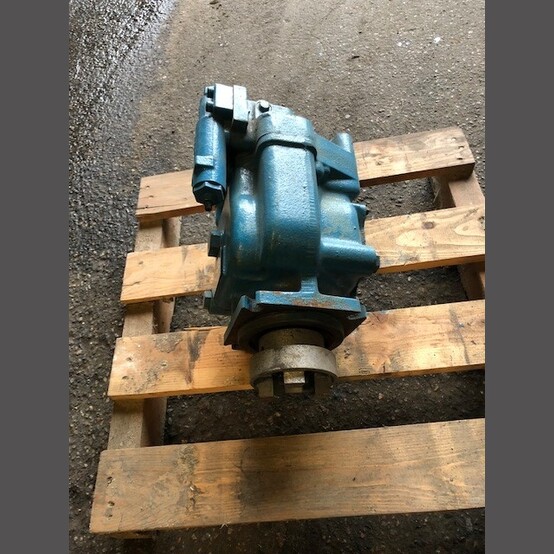

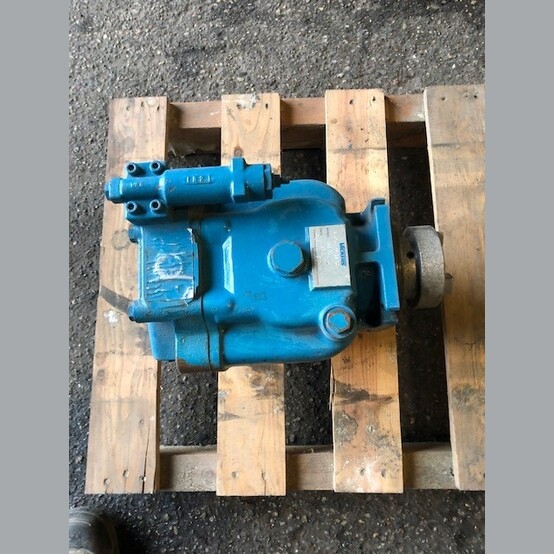

Vickers PVH74C Piston Pump

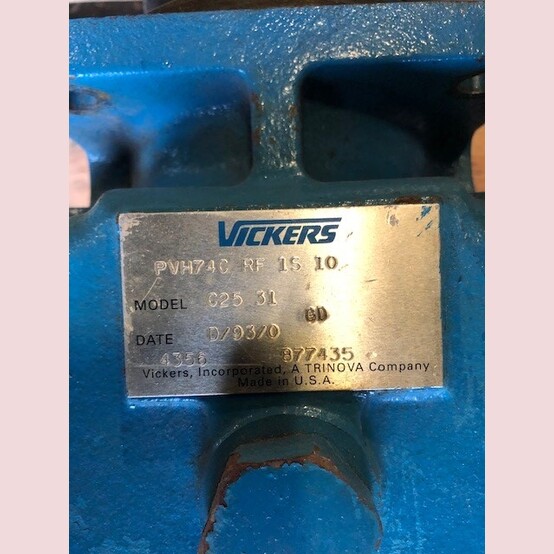

  • Make: Vickers PH74C RF 1S 10
  • Model: C25 31
  • Condition: New
  • Max Geometric Displacement 74: 73.7 cm³/r (4.5 in³/r)
  • Application Style: Mobile Application (Rated Speed & 250/280 bar (3600-4000 psi) Pressures)
  • Mounting Flange, Prime Mover End: SAE “C” 4–Bolt Type (SAE J744-127-4)
  • Shaft Rotation, Viewed @ Prime Mover End: Right Hand, Clockwise
  • Configuration: Non-Thru-Drive (Single Pump)
  • Main Ports: SAE 4-bolt Flange Ports (Standard)
  • Shaft-End Type, @ Prime Mover End: SAE-C Straight Key
  • Shaft Seal, Prime Mover End: Single, One-Way
  • Max Pressure: 250 Bar (3625 PSI)
  • Rated Speed: 2200 RPM
  • Flow @ 28 bar (400PSI): 154.1 - 171 l/min (40.7 - 45.2 US GPM)
  • Max. Flow Loss @250 bar (3625 psi): 13 l/min (3.4 US GPM)

  • Location: Western Canada
