U.S. Filter Volumetric Feeder ID: 1260334

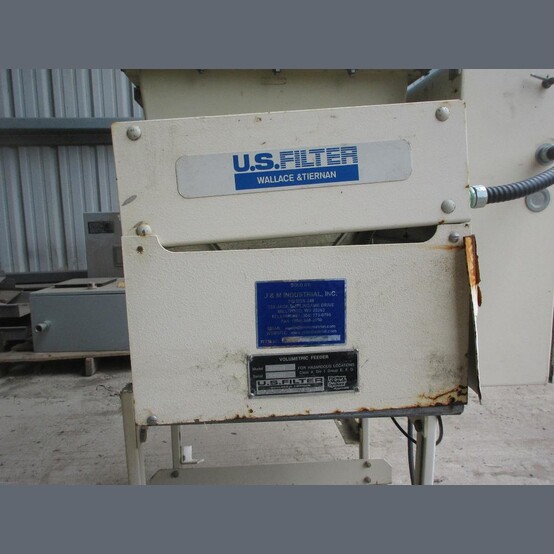

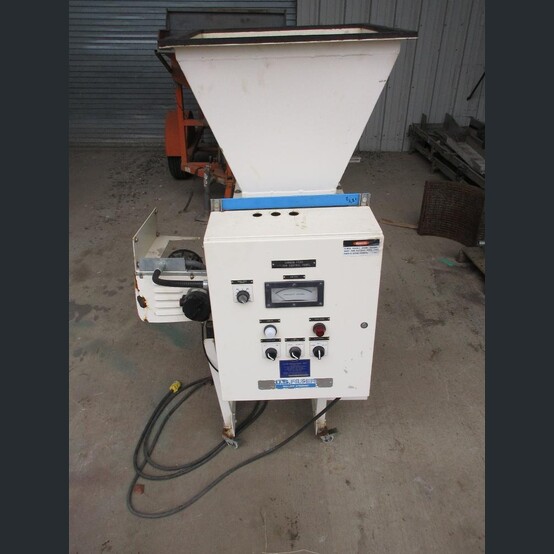

U.S. Filter Volumetric Feeder

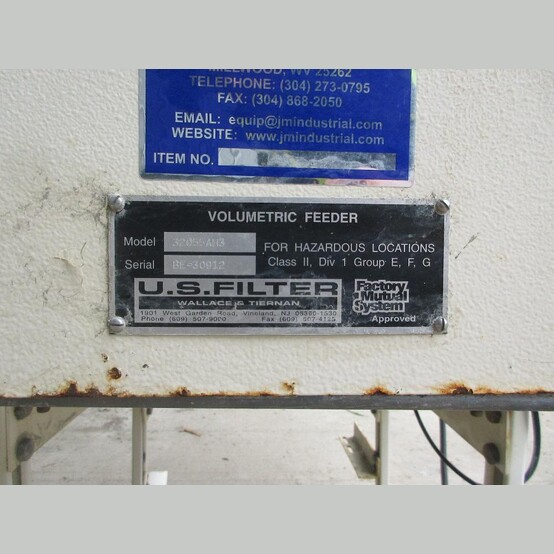

  • Make: U.S. Filter
  • Model: 32-055AH3

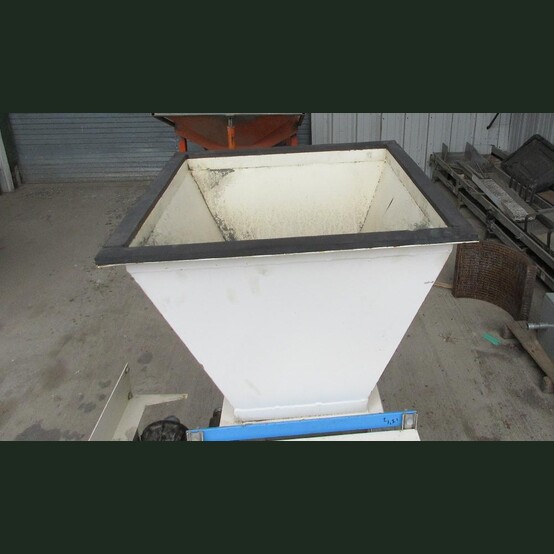

  • Feed Hopper Dimensions:
    • Length: 24in
    • Width: 24in
    • Height: 36in

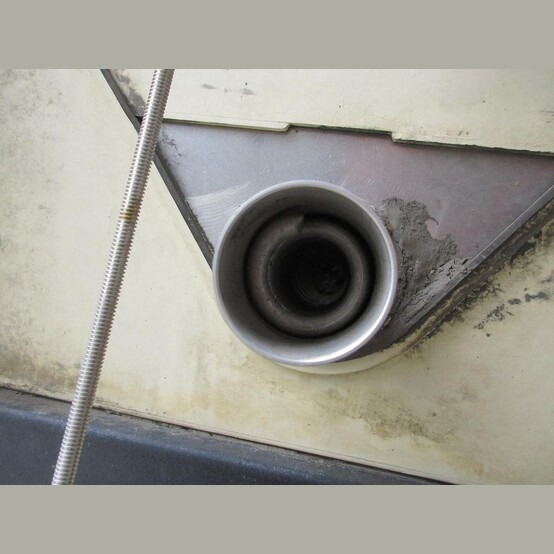

  • Feed Auger: Stainless Steel Spring Style
    • Dimensions: 1.5in Dia. x 20in Long

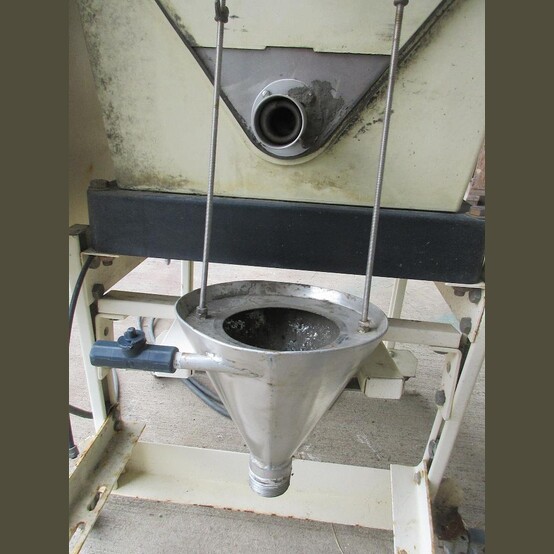

  • Outfeed Hopper: Cone Shaped Stainless Steel
    • Outfeed: 1.5in Outfeed
    • Dimensions: 8in Dia. x 8in High

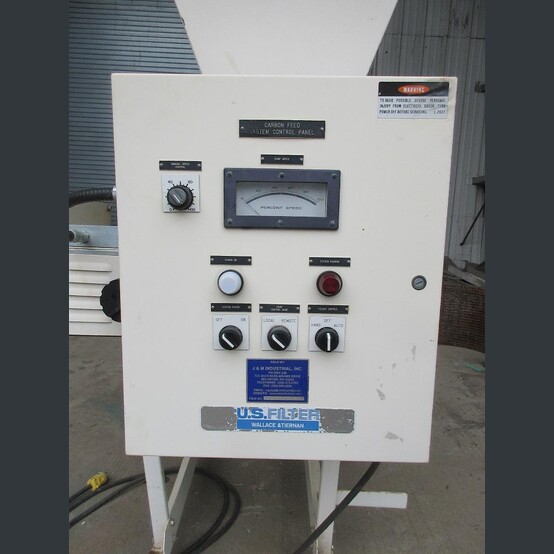

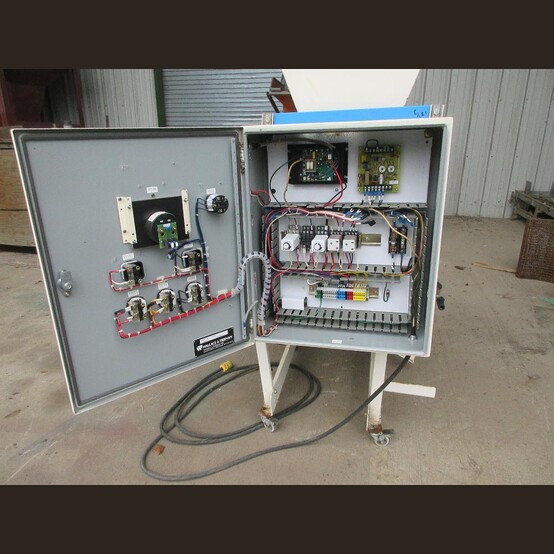

  • Power Control Box: NEMA 3R Enclosure
    • Pump Speed Gauge
    • Manual Speed Control Switch
    • Power On/Feeder Running Lights
    • System Power - On/Off Switch
    • Pump Control Switch - Local/Remote
    • Feed Control Switch - Hand/Off/Auto
    • Control Box Dimensions:
      • Length: 24in
      • Width: 20in
      • Depth: 9in
  • Unit Mounted on 1.5in Castor Style Wheels

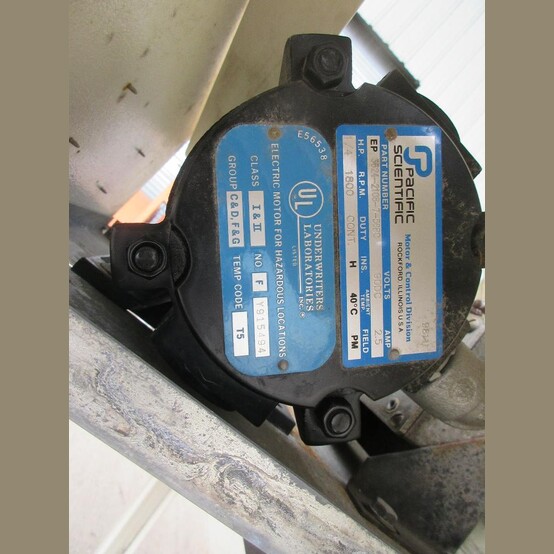

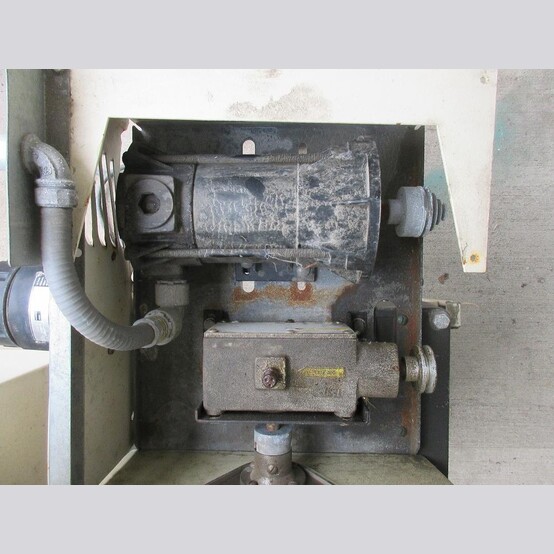

  • Drive: Electric Motor
    • Make: Pacific Scientific DC Voltage
    • Model: 3624-2108-7-56PC
    • Power Output: 0.25HP
    • Voltage: 90 Volts DC
    • Amperage: 2.5 Amps
    • RPM: 1800
    • With Reducer

  • Overall Dimensions:
    • Length: 33in
    • Width: 40in
    • Height: 63in

  • Location: Savona, British Columbia, Canada
