Terex Reedrill R30C Self-Contained Hydraulic Track Drill ID: 148097


  • Model: R30C.
    • 5 ft. boom.
      • Hole diameter up to 5 in. / 12.7 cm.
    • Drifter:
      • Model: HPR6519.
        • 25 hp / 19 kW.
      • Weight: 660 lbs.
      • Number of blows: 2,500-2,700 bpm.
      • Number of revolutions: 0-300 rpm.
    • Tramming:
      • 15 in. ground clearance.
      • Speed: 4 km/h
      • 35° gradeability.
      • 15.1 in. track pad width.
  • Guide Shell:
    • Max. starter rod, standard: 240 inches.
    • Max. single pass, optional: 222 inches.
    • Feed rate: 120 ft/min.
  • Gardner Denver Air Compressor.
    • 350 CFM.
      • 150 psi.

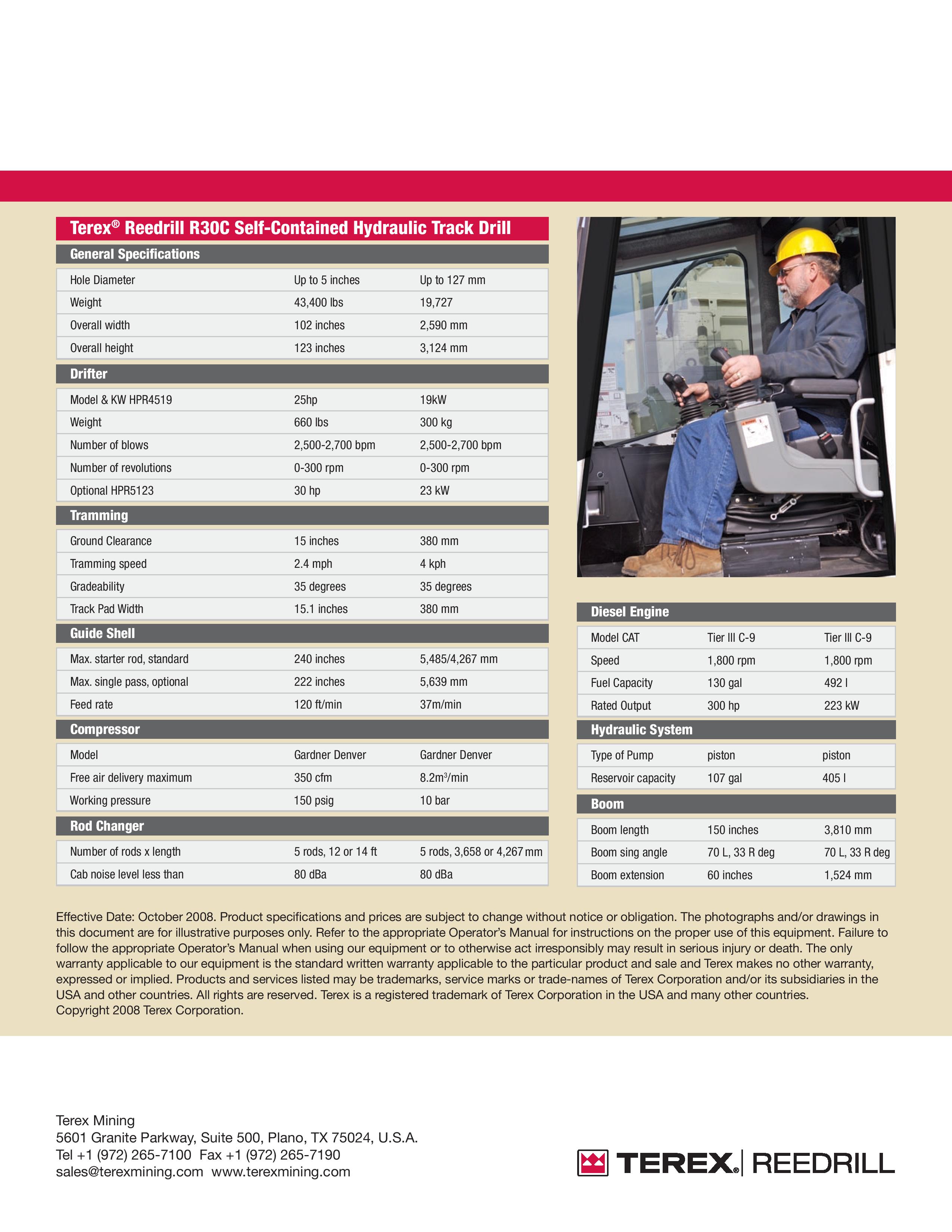

  • Please see the specs tab below for more detailed information.



Shipping information:

  • Dimensions (W x H):
    • 102 in. x 123 in.
    • 2.59 m x 3.12 m.
  • Weight:
    • 43,400 lbs / 19,686 kg.



Please contact us for more information.
