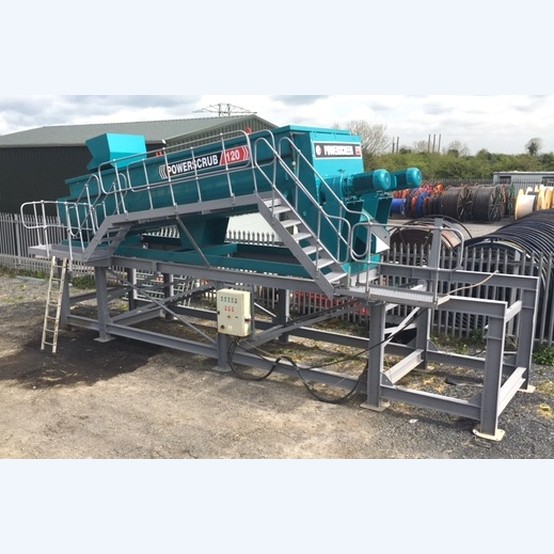

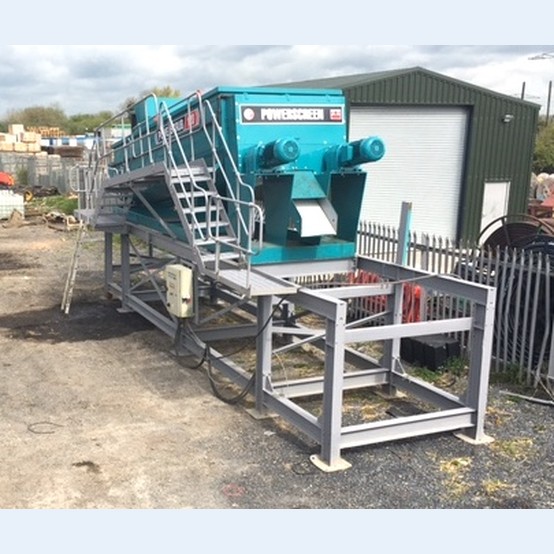

Terex Powerscreen 120 Log Washer ID: 193542

  • Log washer is completely rebuilt.
  • Two high output electrical motors driving a gear system, which in turn rotates the two counter-rotating axles, which perform the scrubbing action.
  • Interchangeable high tensile blades.
  • The material forms a bed in the hull, preventing wear in the steel trough.
  • The lower bearings are fresh water flushed to prevent wear or damage from small particles.
  • The machines are fitted with an elevated spray bar system, which constantly adds water to the material. This washes the material and encourages lighter particles to float through the water exit.
  • Full length walkway and steps, which can be fitted on either side of the machine, for ease of access and to view production.
  • 4 lifting points firmly attached to the sides of the hull for carriage when required.
  • Large inlet chute with bolt in wear plates.
  • Rubber lined catchboxes and outlet chutes.
  • Versatility and design enables it to be easily adapted to work.
  • Static:
    • Working Length (Inc Walkway): 9.70m (31’ 9”).
    • Working Width (Inc Walkway): 2.99m (9’ 10”).
    • Working Height (Inc Walkway): 3.60m (11’ 10”).
    • Feed height: 2.69m (8’ 10”).
    • Product discharge height: 1.18m (3’ 11”).
    • Waste water discharge height: 0.53m (1’ 9”).
    • Total weight: 8500kg (18750lb).
  • Location: Ireland.
