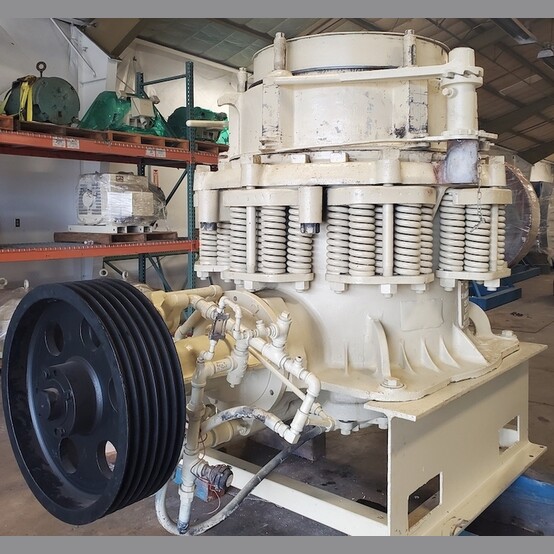

Symons 3ft Shorthead Cone Crusher

• Make: Symons
• Size: 3ft Shorthead
• Liner Configuration: Coarse Liners Installed
• Max Feed: 76mm (3in)
• Max/Min Discharge: 6 to 19mm (0.25 to 0.75in)
• Max Capacity: 65TPH@6mm (0.25in) Discharge Size (145TPH@19mm)


• Drive: 100HP Motor, Used


• Overall Dimensions:
  • Length: 10' 11"
  • Width: 6' 7"
  • Height: 9' 11"
  • Weight: 28,000 Lbs. (10,900 Kgs)


• Additional Information
  • Lubrication System With Round Tank
  • Feed Cone
  • Manual Lock and Adjust
  • Disassembled, Inspected, Parts Repaired and Replaced As Needed
  • Major Parts Replaced:
    • Feed Plate
    • Dust Collar
    • Socket Springs and Housing
    • Socket Sealing Ring
    • Clamp Ring
  • Freshly Sandblasted and Professionally Painted
  • Made in USA


• Location: Northwest USA
