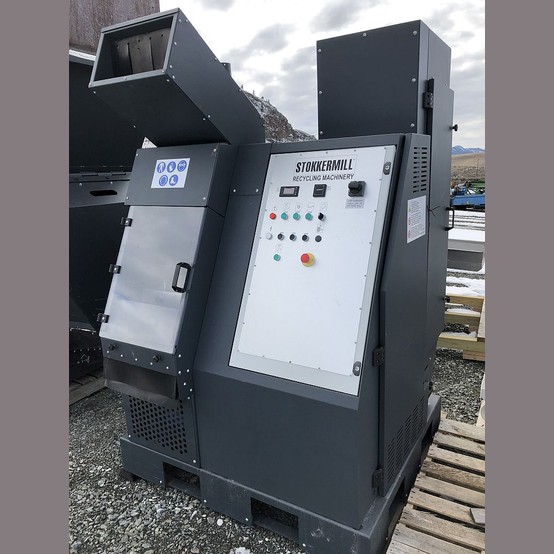

• Model: Kit Granulator SM-3000
    • Mfg. 2018
    • Complete with:

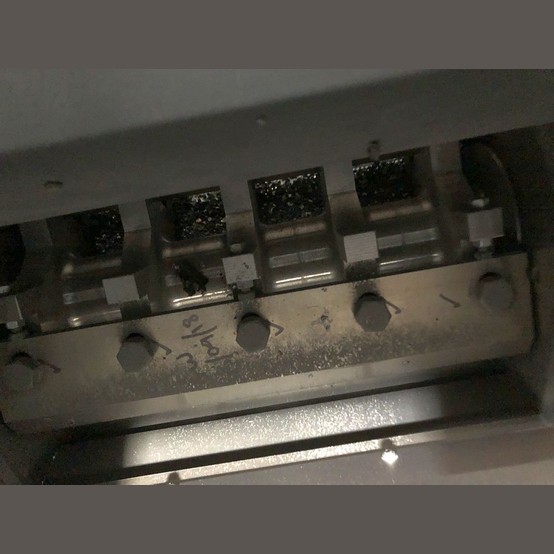

      • Knife Blade Granulator
      • Air Sweep Screener
      • Forced air and Vacuum Blowers

General Information:

  • 17 in. X 9 1/2 in. Feed Inlet
  • 18” Wide – 3 Blade Granulator
    • Belt Driven by a 15 kW(20HP) motor
    • 230 Volt
    • 1770 RPM
  • Air sweep Screen:
    • 12 in. Wide x 40 in. Long
    • Belt driven by a .37 kW(.5HP) motor
    • 230 Volt
    • 1050 RPM
  • Screen Forced Air Blower:
    • Mfg. Ciesse
    • Model: MSPA 40
    • Inlet: 4 in. Dia.
      • With Canister Filter and pulse jet cleaning
    • Outlet: 6 in. x 3 in.
    • Blower Wheel: Approx. 16 in. Dia.
    • Direct Drive Motor
      • 2.2 kW(3HP)
      • 230 Volt
      • 3529 RPM
  • Screen Fines Exhaust Vacuum Blower:
    • Mfg. Ciesse
    • Model: MSPA 36
    • Inlet: 4 in. Dia.
    • Outlet: 6 in. x 3 in.
    • Fan: Approx. 14 in. Dia. x 3 in.
    • Direct drive Motor
      • 2.2 kW(3HP)
      • 230 Volt
      • 3529 RPM
  • Comes with Complete Electric Control Panel:
    • Individual controls for all components
    • Emergency Stop
  • Location: British Columbia, Canada
