30 in. Dia. x 45.5 in. Wide Magnetic Drum Separator & Feed Hopper System ID: 614530


Components:

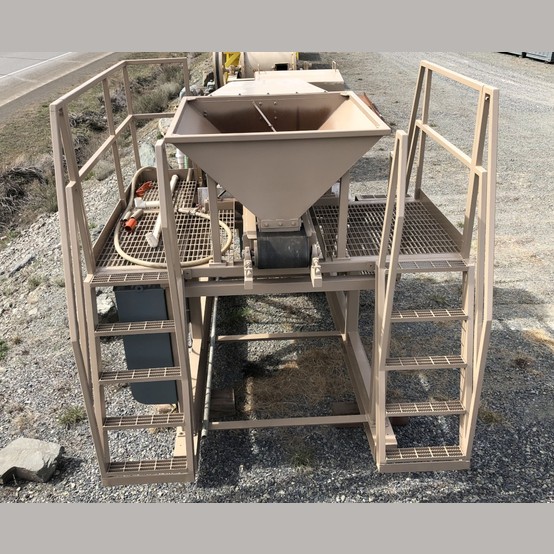

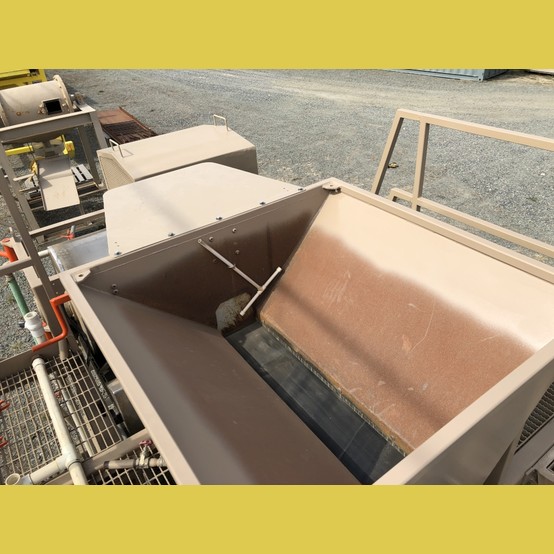

  • 4 ft. x 4 ft. x 2 ft. Deep Feed Hopper
    • Manual Adjustable Discharge Gate
  • 12 in. Wide x 78 in. Long Discharge Conveyor

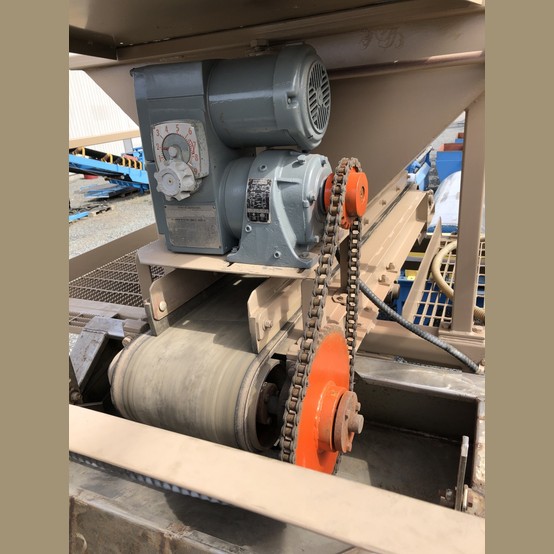

    • Chain Driven by a 1 HP US Motor Manual Vari-Speed Drive
    • 230/460 Volt
    • 1730 RPM

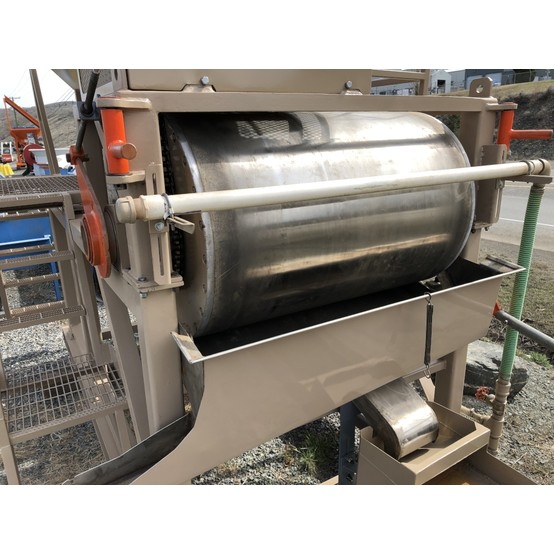

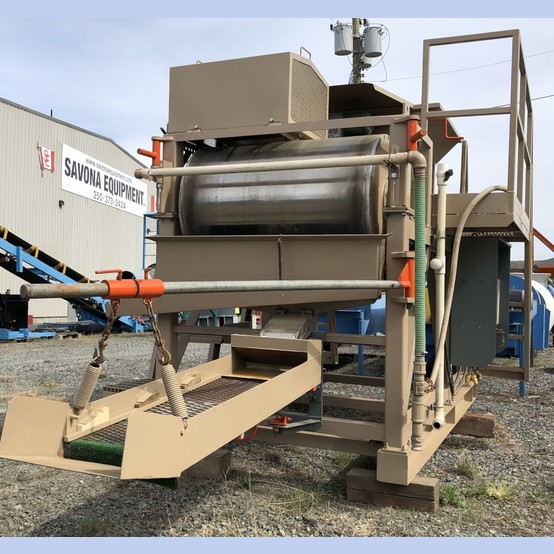

  • 30 in. Dia. x 45.5 in. Wide Permanent Magnetic Drum Separator
    • (Magnet Strength 1400 Gauss)
  • Manual Adjustable Magnet Positioning
    • (Dual Water Spray Bars)
  • Belt Driven by a 3 HP Electric Motor
    • 230/460 Volt
    • 1755 RPM

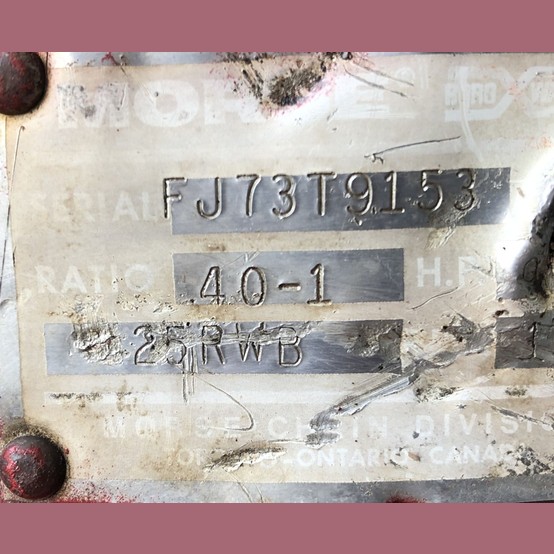

  • Through a Morse Right Angle Reducer
    • Ratio: 40 - 1
    • Model: 25RWB
    • Chain Drive to Drum

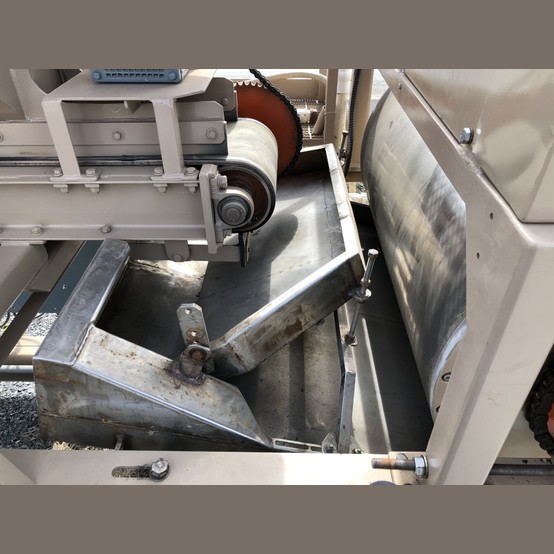

  • Hopper Conveyor Discharges on to a 48 in. Wide x 68 in. Long Stainless-Steel Slope Material Trough Passing Under Magnetic Drum
    • (Trough Height Manually Adjustable on 4 Corners)
    • Comes with Bottom Concentrate (Nonferrous Material) Discharge, and Tailings (Ferrous Material) Discharge Launder

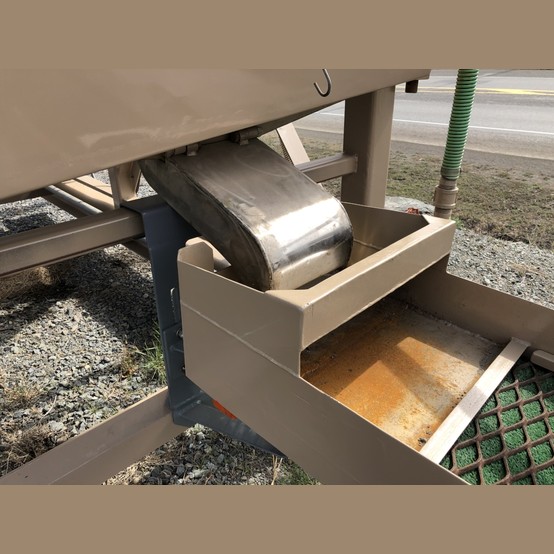

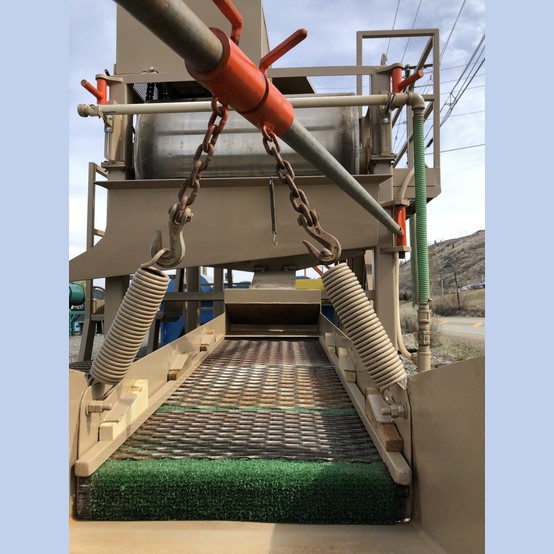

  • Nonferrous Material Concentrate Discharges into a 16 in. Wide x 6.5 ft. Long Sluice Box
    • Complete with Miner's Moss and Expanded Metal Mesh Riffles

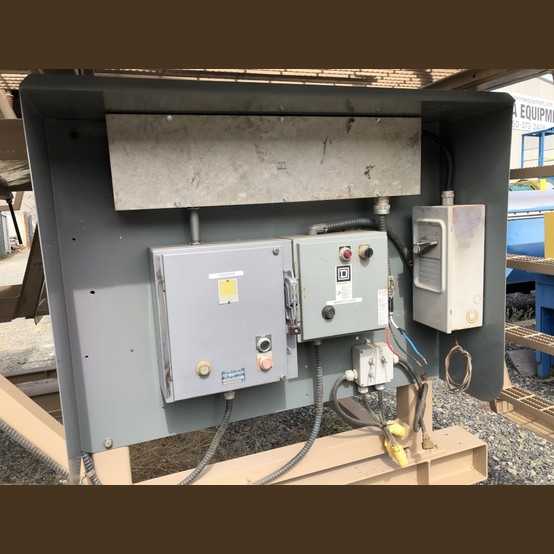

  • Electrical Control Panel for Unit Consisting of:
    • 1 - 125 Amp Splitter
    • 2 - 30 Amp Fusible Disconnects
    • 1 - Size 1 Square D Starter

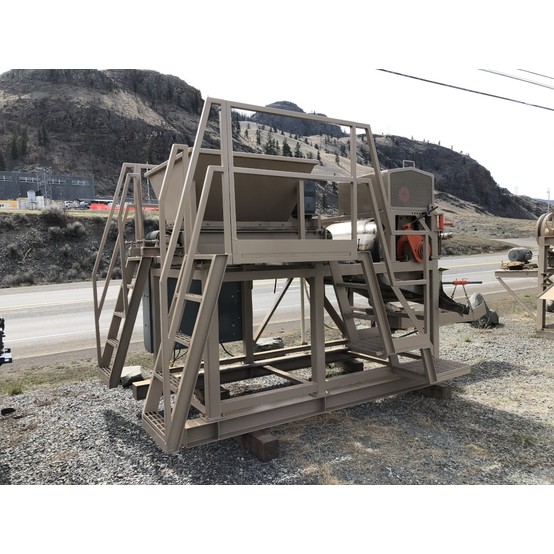

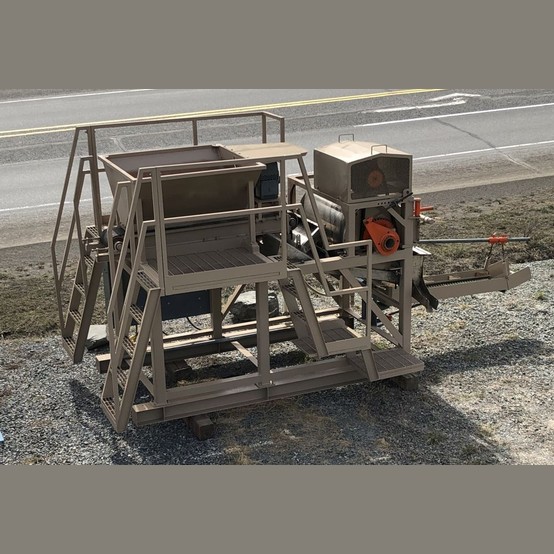

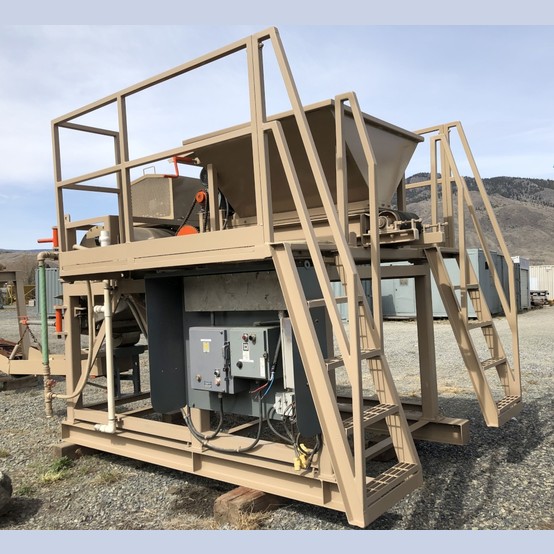

  • Whole Unit Mounted on Square Tubing Steel Frame. 6 in. x 6 in. Flange Steel Sid/Base. Complete with Access Stairs and Cat Walks
  • Overall Dimensions:
    • Length: 127 in.
    • Width: 108 in.
    • Height: 105 in.
  • Location: British Columbia, Canada
