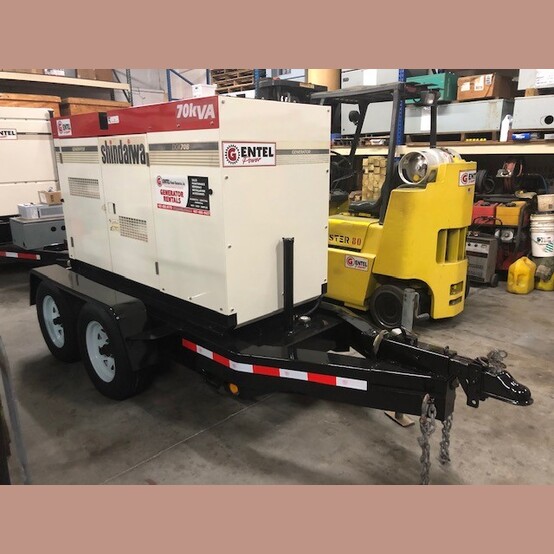

Shindaiwa 56kW Diesel Generator - Rental Grade

  • Make: Shindaiwa
  • Model: DGK70B
  • Portable/Stationary: Portable

  • Engine: Isuzu Diesel Engine FF-4BG1T
    • Hours: 1265 Hours
    • Power Output: 88HP
    • Oil: CD Class or Higher, Forced Lubrication
    • Radiator: Air to Air

  • Generator: SSG-3070AI
    • kVA/kW: 70kVA/56kW
    • Voltage: Selector Switch
      • 480/277V 3-Phase
      • 208/120V 3-Phase
      • 240/120V 1-Phase
    • Amperage
      • Single phase - 120V 168x2 Amps (Zig-zag)
      • Single phase - 240V 168 Amps (Zig-zag)
      • Three phase - 240V 168 Amps
      • Three phase - 480V  84 Amps
    • RPM: 1800 RPM
    • Power Factor
      • Single Phase: 1.0
      • 3 Phase: 0.8

  • Overall Dimensions:
    • Length: 13'
    • Width: 6'
    • Height: 6.5'
    • Weight: Approx. 5,000 Lbs.

  • Additional Information:
    • Auto Start Controller or Manual Start
    • Serviced and Load Banked
    • Stored Inside
    • Mounted on Included Trailer
      • Tandem Axle Torsion Suspension
    • Sound Attenuated Enclosure
    • 130 Gallon Fuel Tank
    • Lug Connections for Conductor Wiring
    • Outlets for Single Phase Plug-In

  • Location: USA
