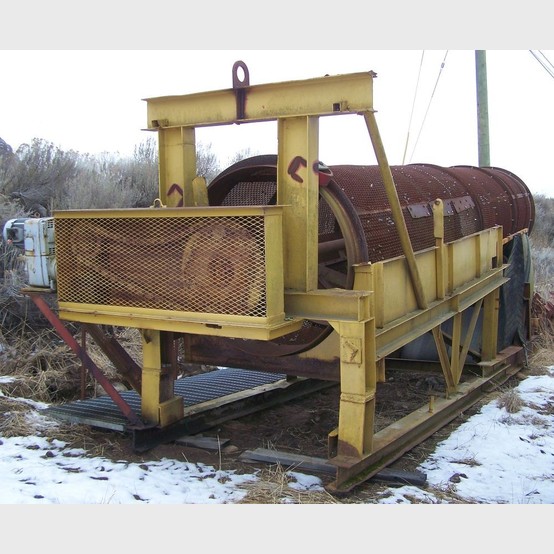

- 4 ft. x 20 ft. Top Soil Trommel.
- Chain driven.
- U.S. Varidrive Motor.
- Constant torque, variable speed, belt drive transmission.
- 5 hp U.S. electric motor.
- 230/460V.
- 1730 rpm.
- 5:1 gear ratio.
- Radicon right angle gear reducer.
- Size: 6BU600.
- Ratio: 40:1.
- Mounted on steel frame with service walkway.
- Overall dimensions:
- 22’ long.
- 9’ 8” Wide.
- 8’ 6” High.
- Weight approx. 15,000 lbs.
