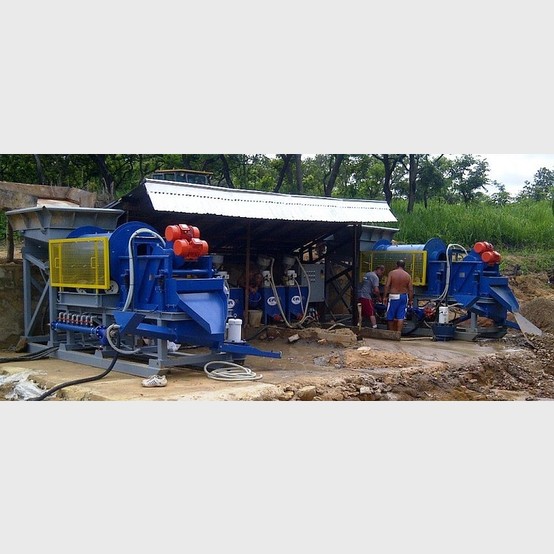

• iCON IGR 1000 Gold Recovery Plant/Sepro ISAP 5 Gold Recovery Plant.
    • Two plants available
      • Consisting of:

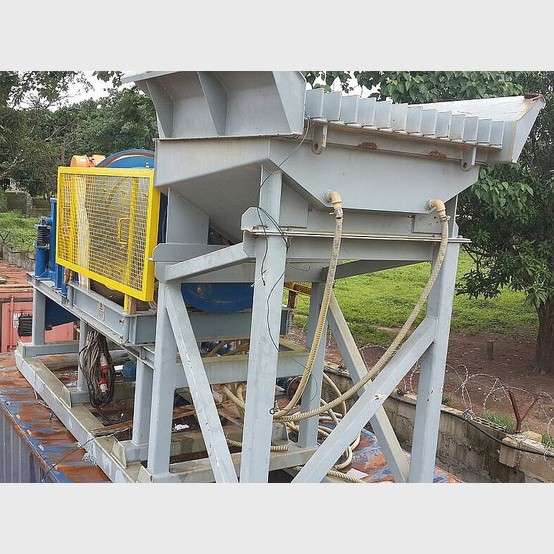

        • Feed chute fabricated from mild steel with grizzly bars.

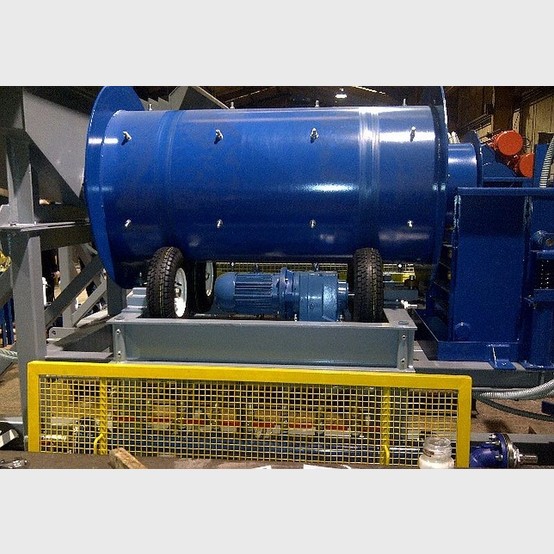

        • Sepro pilot plant rotary scrubber - nominal dimensions 0.75m x 1.5m long.
          •  Drum.
          • Steel lifter bars.
          • Rubber tire drive assembly:
            • Wheels.
            • Gearbox.
            • 2.2 kW drive motor.
            • Variable frequency drive.

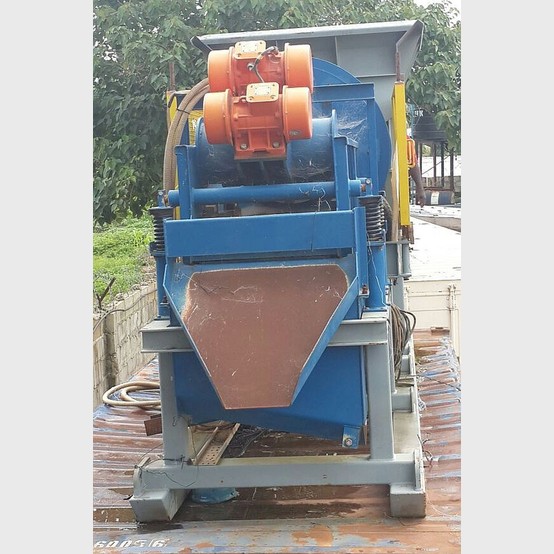

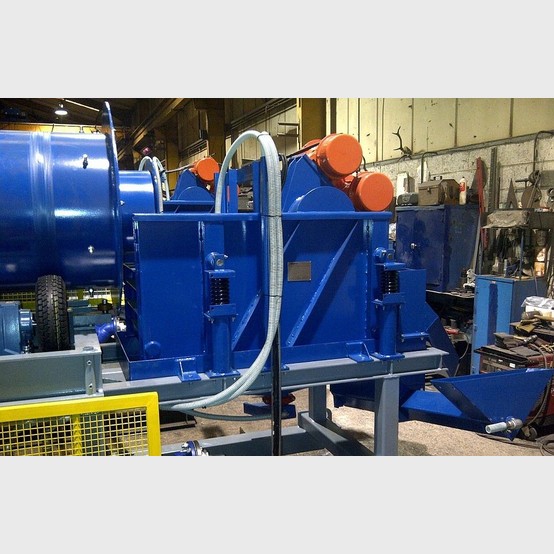

        • Sepro Sizetec 2 ft. x 4 ft. heavy duty horizontal vibrating screen.
          • Electric vibrating motors.
          • Welded screen body construction.
          • Polyurethane screen panels - nominal aperture 2mm.

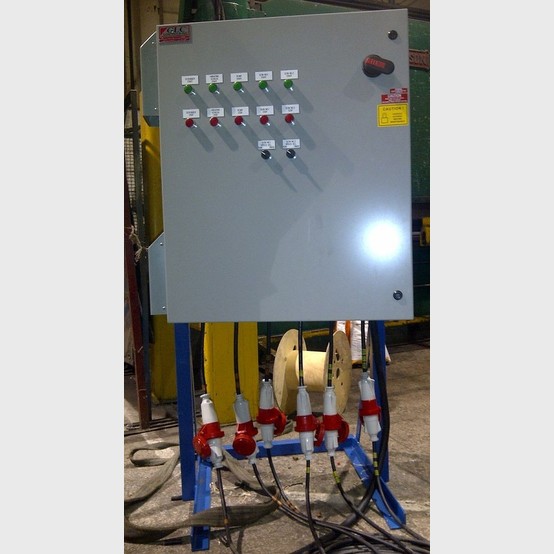

          • Electrical Controls.
        • Skid frame assembly for mounting scrubber and screen.
          • Water distribution manifold for scrubber, vibrating screen.
          • Sluice box for coarse gold recovery.
          • Screen oversize discharge chute.

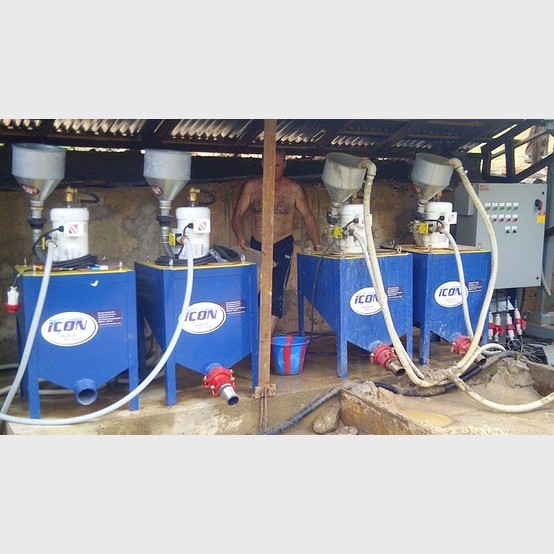

        • Two iCON SB150 Concentrators.
          • VFD drive.
          • 2 hp electric motor.
          • iCON components mounted in a custom steel frame.

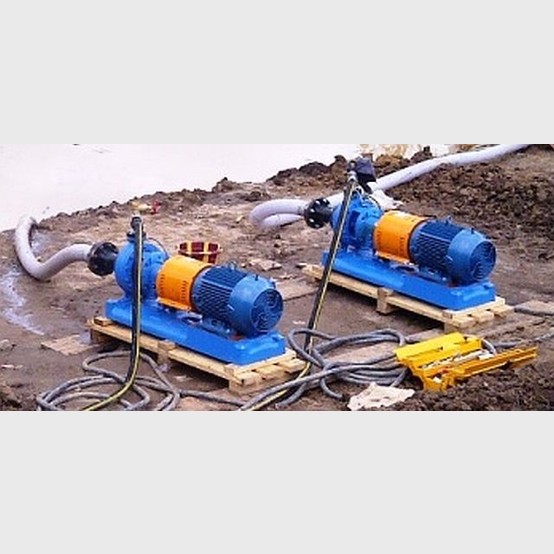

        • iCON Gold Recovery I pump.
          • 1 in. centrifugal slurry pump.
            • VFD drive.
            • 2 hp electric drive motor.
              • Wiring for on plant equipment.
        • ISAP5 water supply and transformer package.
        • ISAP5 spares package.



Please contact us for more details.
