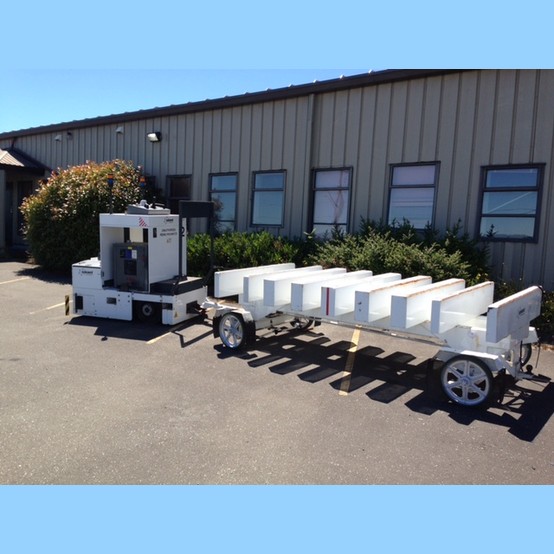

• 6 – Savant DT-100 Tugs:
  • Only 1,400 hours.
  • 50,000 Pounds Towing Capacity.
  • Wireless or Wire guidance.
  • Automatic or Manual Operation.
  • RF Communication.
• 16 – 5 ft. x 11 ft. trailers.
• 6 – 240 volt chargers and stands.
• Battery racks with rollers.
• Raymond Forklift for loading batteries.
• Rugged steel frame construction for industrial environments.
• All manuals and schematics included.
• Mechanical Specifications:
  • Towing Capacity: 50,000 lbs. (22,727 Kg) rolling load (Towing capacity on level grade with 2% coefficient of friction trailers).
  • Drawbar: 1000 lbs. (4,553 Kg) rolling load (based on dry concrete with brushed surface or equivalent).
  • Ramp: Up to 2% without de-rating towing capacity (ramps exceeding 3% require special evaluation).
  • Drive Configuration: Dual rear wheel drive: integrated motor, transmission, and drive wheel.
  • Drive Motors: 5 HP (x2), 48 VDC, series wound.
  • Transmission: planetary gear hub with right angle adapter.
  • Steer Configuration: Single front wheel steer.
  • Drive Wheels: 18” (457mm) diameter x 6” (152mm) wide rubber.
  • Front Wheel: 10” (254mm) diameter x 3” (76mm) wide urethane.
  • Brakes: Electric, fail-safe.
  • Frame: 1/2” laser cut steel plate, 3” x 4” steel tube.
  • Battery Compartment: 39.0” (978mm) L x 30.0” (762mm) W x 29.0” (737mm) H with roller conveyor access.
  • Vehicle Weight: 2,250 lbs. (1,023 Kg) without battery.
  • Speed in Automatic: 200 fpm (61 mpm, 2.3 mph), 16 speed ranges.
  • Coupler: Jaw, ball, or towing eye.

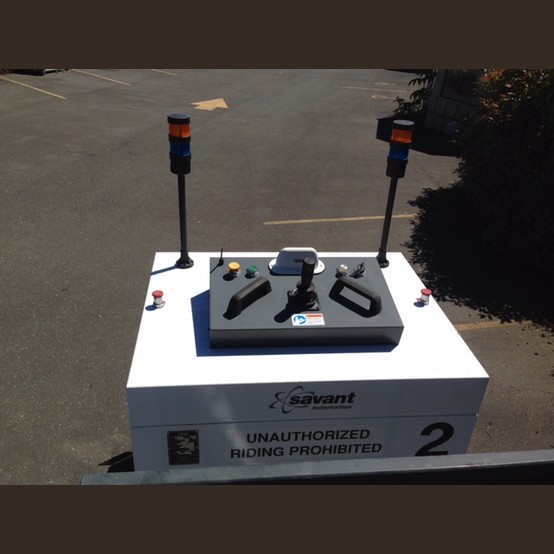

  • Manual Operation: Operator onboard compartment with joystick control, electric steering and braking.
  • Key switches: Automatic/Manual, On/Off.
  • Turning Radius: 8 feet (2.438m) minimum.
• Control Specifications:
  • Controls: Single board computer, CAN bus.
  • Electrical System: 48-volt power.
  • Navigation System: Virtual wireless navigation (inertial) or wire-based guidance.
  • Communications: Via Radio Frequency (RF).
  • Routing and Traffic: Onboard control logic.
  • Battery System: Heavy-duty industrial grade battery with discharge meter.
  • Position Accuracy: 1” (25.4mm) stopping, 1” (25.4mm) side to side.
  • Battery Information:
    • Battery AH: 1125 AH (maximum) flooded cell, 1,100 AH sealed (maintenance free).
    • Battery Weight: Flooded – 4,400 lbs. (2,000 Kg); Sealed – 4,200 lbs. (1,909 Kg).
    • Battery cycle: 8 hours minimum, based on standard duty cycle of 20% idle, 40% in motion full speed loaded, 40% in motion full speed unloaded.
    • Charging Method: Manual battery exchange standard (or optional automatic charging).
