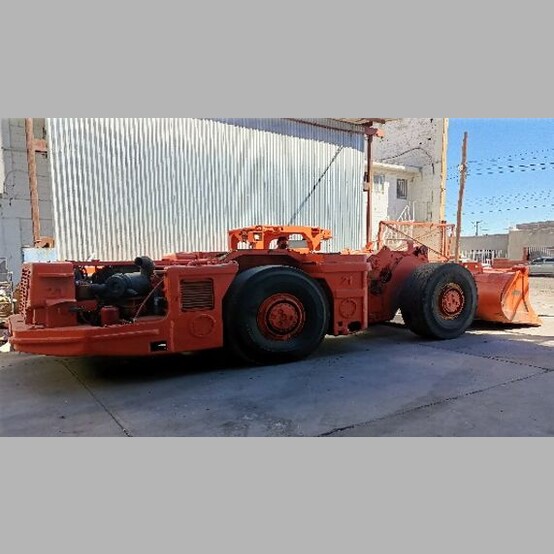

Sandvik Toro 007 LHD

• Make: Sandvik Tamrock
• Model: Toro 007
• Bucket Size: 4.6m³ (6.0yd³)
• Tramming Capacity: 10,000 Kgs (22,000 Lbs.)
• Breakout Force:

  • Lift: 184kN (18,800 Kgs, 41,400 Lbs.)
  • Tilt: 163kN (16,600 Kgs, 36,600 Lbs.)
• Tipping Load: 23,400 Kgs (51,600 Lbs.)


• Engine: Detroit Diesel S-50 DDEC IV (247HP@2100RPM)
• Torque Converter/Transmission: Dana SOH, MHR33425
• Axles:
  • Front: Dana SOH, 19D
  • Rear: Dana SOH, 19D, Oscillating ± 8°
• Brakes: SAHR, Posi-Stop Wet Multi-Disc
• Tires: Bridgestone 18.00x 25 L5S Mine Slicks
• Canopy: ROPS/FOPS Certified Canopy


• Bucket Motion Times:

  • Raising Time: 7.5 Seconds
  • Lowering Time: 4.0 Seconds
  • Tipping Time: 2.2 Seconds


• Overall Dimensions:
  • Length: 10,199mm (402in)
  • Width: 2,550mm (100in)
  • Height: 2,395mm (94in)
  • Weight: 26,000 Kgs (57,320 Lbs.)


• Location: Mexico

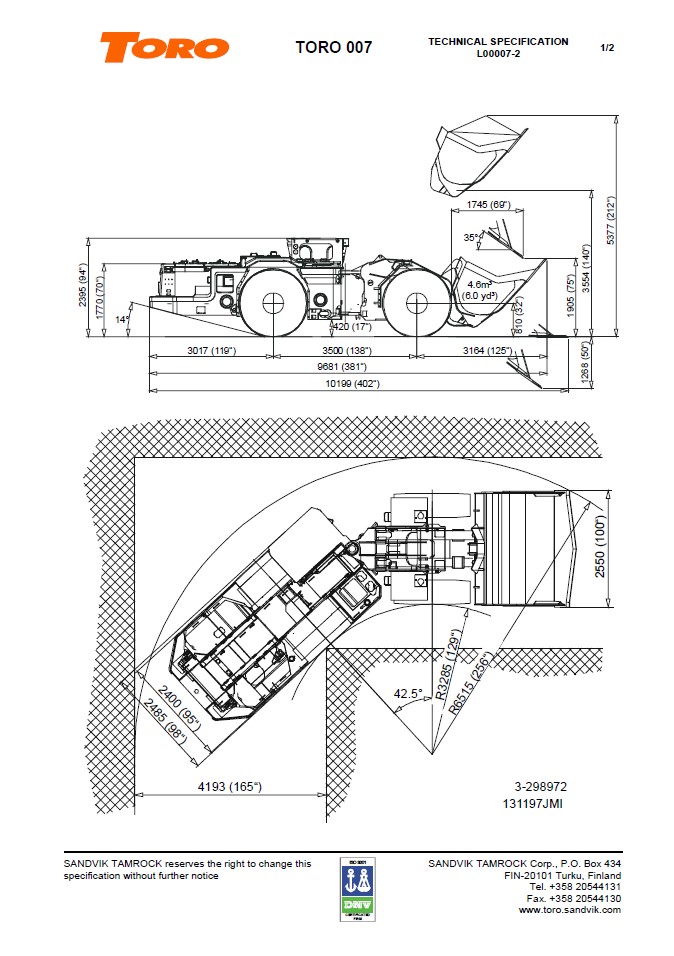

View Spec Sheet Below
