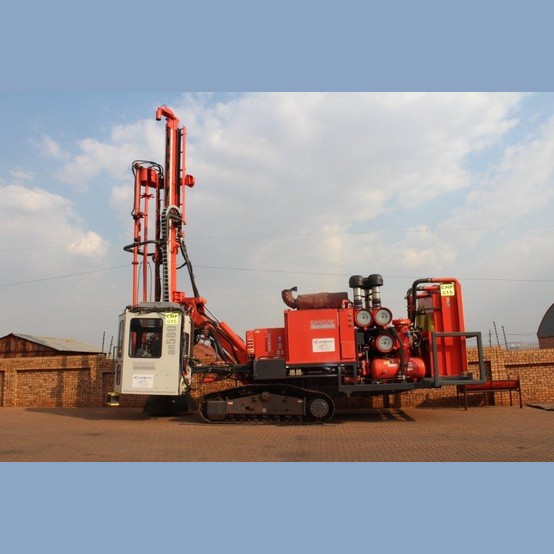

• Sandvik DTH Drill.
  • Location (South Africa).
    • Manufactured in 2012.
      • Model: DR580.
        • New/unused.
        • High pressure, diesel powered down-the-hole (DTH).
      • Protection modifications made:
        • Belly plates to protect the diesel tank.
        • Deflection plate to prevent oil spraying onto the turbo.
        • Rear bumper to protect the coolers.
    • Technical data:
      • Drill pipe diameter: 89-140 mm.
      • Engine power: 708 kW.
      • Hole diameter: 115-216 mm.
      • Maximum hole depth: 54.9 m.
      • Maximum air pressure: 34.5 BAR.
      • Drilling technique: surface drill.



  • Shipping information:
    • Dimensions (L x W x H):
      • 11.4 m x 3 m x 3.81 m.
      • 37 ft. 5 in. x 9 ft. 10 in. x 12 ft. 6 in.
    • Weight:
      • Operating weight (empty): 33,112 kg / 73,000 lbs.



Please contact us for more information.
