Sandvik DD321 Development Drill ID: 1272159

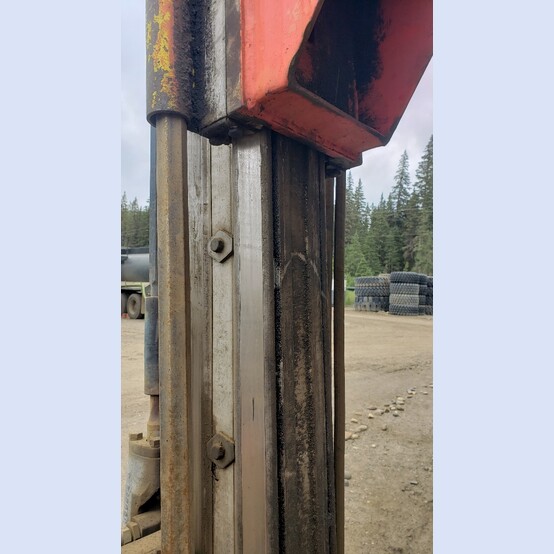

Sandvik DD321 Development Drill

  • Make: Sandvik
  • Model: DD321
  • Year: 2011
  • Hours: 1,666.2
  • Condition: Used, Reported in Good Condition

  • Description: Sandvik DD321 is a two-boom, electro-hydraulic mining development drill rig engineered to excel in demanding conditions and multiple applications. The various options of this mining jumbo make it suitable for a range of tasks, most commonly face drilling, cross-cut drilling and bolt-hole drilling.

  • General Model Specifications: See Attached Spec Sheets for More Technical Information
    • Coverage Area: 49m² (8,820 x 6,060mm)
    • Hydraulic Rock Drills: 2 x RD520, 20kW
    • Drilling Feeds: 2 x TF512, 12 - 16ft
    • Booms: 2 x SB40
    • Control System: 2 x THC561
    • Hole Length: Up to 4,660mm
    • Drift Size Class: 4,000mm x 4,000mm
    • Turning Width (T-Section): 3,500mm
    • Straight Down Outriggers
    • Rear Outriggers
    • 173HP Mercedes OM 904LA 4-Cyl 4.2L Diesel Engine
    • 2011 US EPA Label
    • Stera Technologies Cabin 7 Installed
    • Air Conditioner
    • Tires: 12.00R20 Front Tires, 12.00R20 Rear Tires

  • Overall Dimensions:
    • Transport Width: 2,150mm (85in)
    • Transport Height: 3,200mm (126in)
    • Transport Length: 12,350mm (486in)
    • Weight: 22,000Kg Approx.

  • Location: Western Canada
