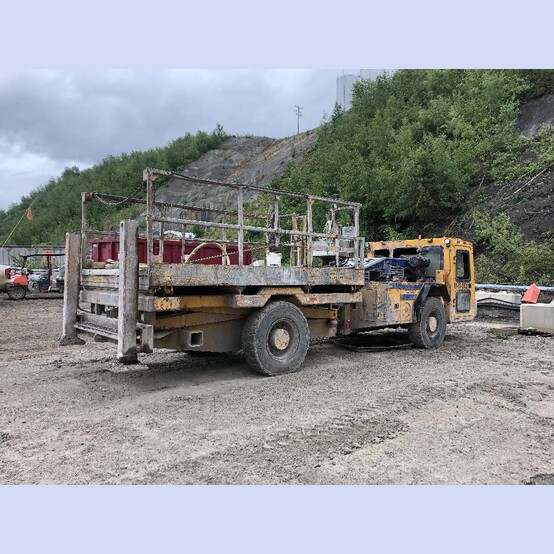

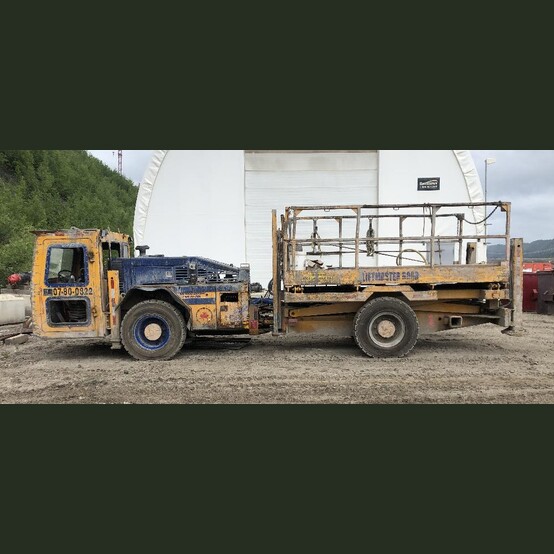

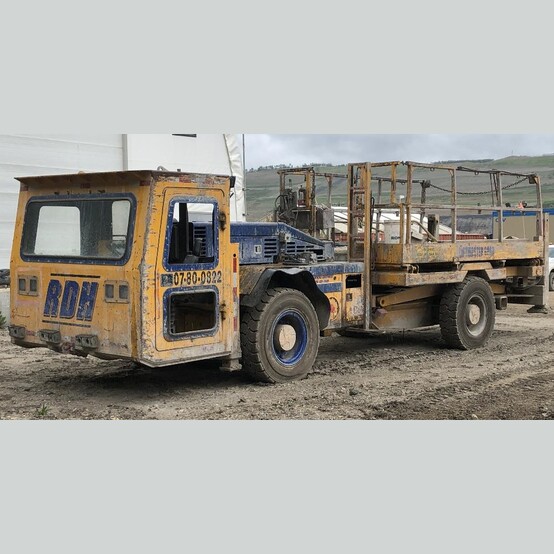

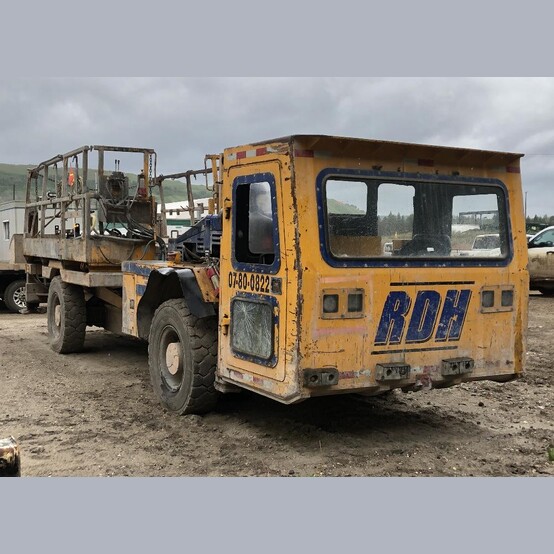

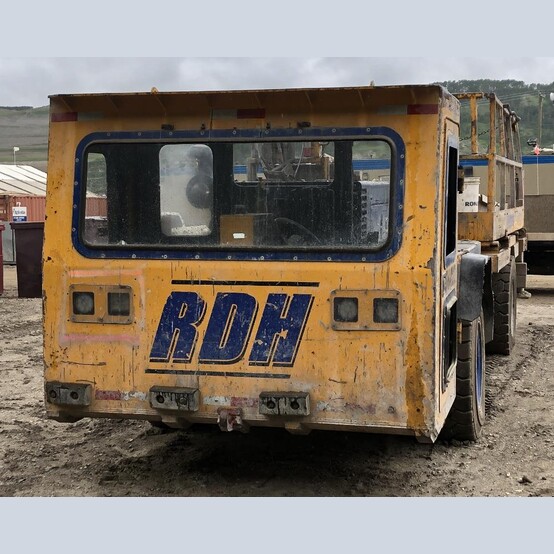

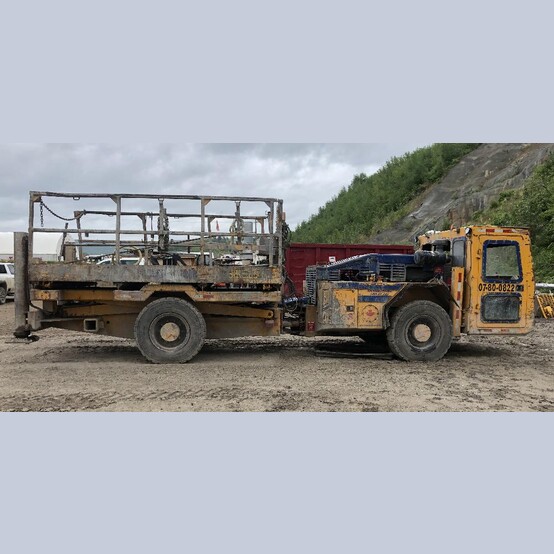

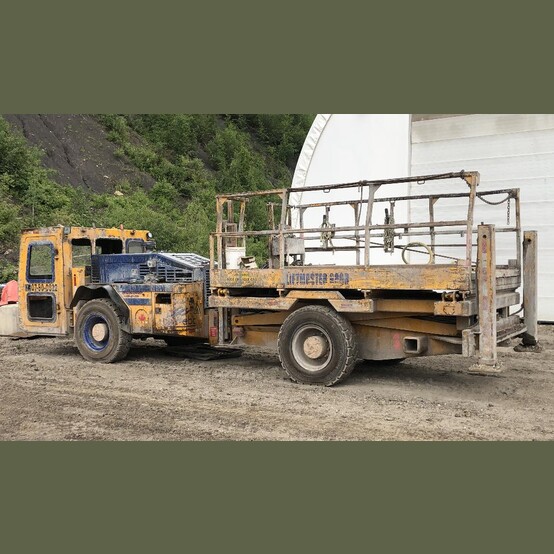

RDH Liftmaster 600R Work Platform

• Make: RDH
• Model: Liftmaster 6000R
• Hours: 7,810
• Capacity: 6,000 Lbs.
• Deck Height: 13ft 4in (4.1m) Extended
• Deck Size: 7.5ft x 12ft (2.3m x 3.7m)
• Platform with Dual Side Shift for Maximum Coverage and Less Set-Up Time
• Rear Telescopic Stabilizers with Side Extension Ensure Stability During Platform Deployment

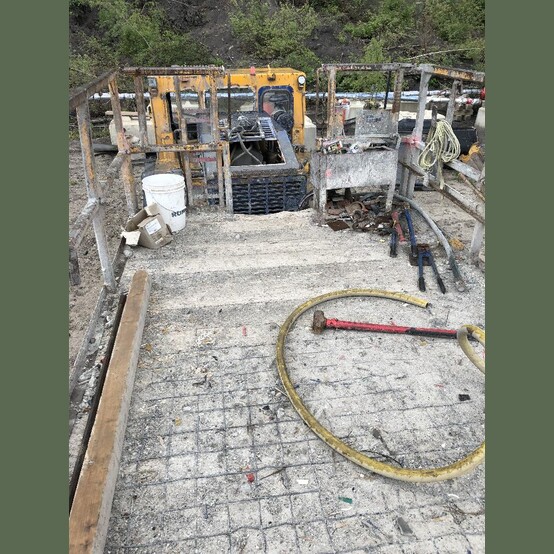

• Replaceable Wood Lined Deck with Kick Plates

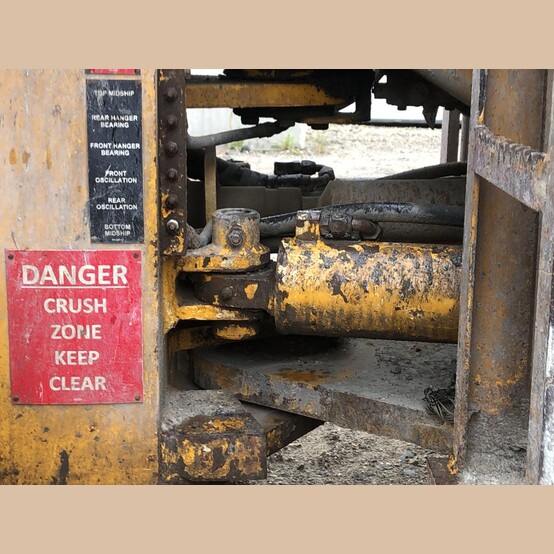

• Two Hydraulic Lift Cylinders with Lock Valves


• General Model Specifications:

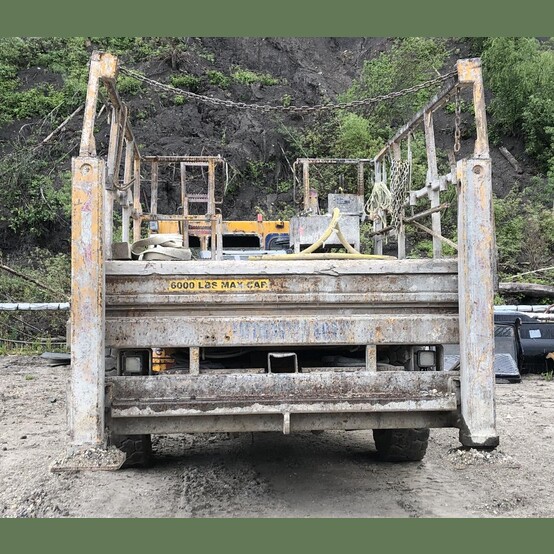

• Lifting Platform:
  • Deck Dimensions: 2,286mm x 3,658mm (7.5’ x 12’)
  • Max Deck Height - Stabilizers Ext.: 4,075mm (13’- 4”)
  • Lifting Capacity: 2,722 kg (6,000 Lbs.)
  • Hydraulic Side Shift Deck (Each Side): 616mm (24”)
  • Loading Height from Ground: 1,468mm (58”)
  • Height at Top of Hand Rails: 2,577mm (101”)
  • Replaceable Wood Deck: 76mm (3”) Thick
  • Fixed Side Rail Height: 1,108mm (44”)
  • Hydraulic Deck Lift Cylinders (2) with Built In Lock Valves
  • Telescopic Ladder
  • Scissor Arm Lock
  • Platform Controls
  • Certification: CSA Lifting Standard C225-00 for Vehicle Mounted Aerial Devices

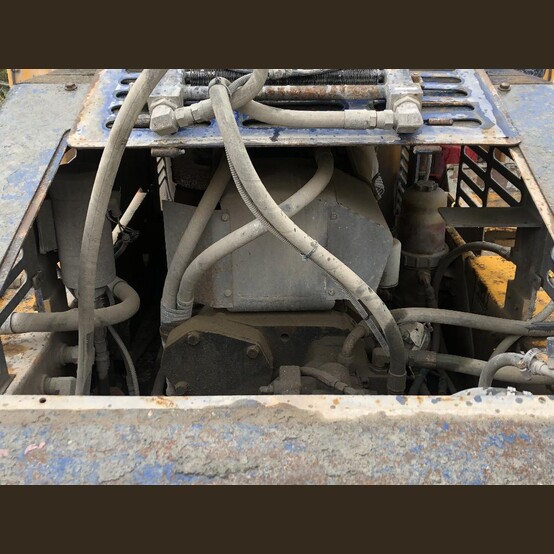

• Engine:
  • Make: Cat® C4.4 ACERT Diesel Tier 3
  • Power Rating @2200 RPM: 66-129 kW/88-174hp
  • Compression Ratio: 16.5:1
  • Displacement: 4.4 L (268.5 in³)
  • Exhaust: Catalytic Purifier with Silencer
  • Fuel Tank Volume: 238 L


• Transmission:
  • Make: Dana Powershift
  • Series: 20000
  • 4 Speeds Forward and Reverse
  • 4 Wheel Drive


• Axles:
  • Make: Dana 113
  • Type: Planetary
  • Oscillation (Rear Axle) + 7°


• Stabilizers:
  • Stabilizers (2 Front, 2 Rear)
  • Stabilizer Leg Extend (Front) 762mm (30”)
  • Stabilizer Leg Extend (Rear) 908mm (36”)
  • Stabilizer Spread (Side Extension) 2,934mm (9’-7”)


• Brakes:
  • Service: Wet Disc (Integrated), Internal SAHR
  • Emergency & Parking: SAHR

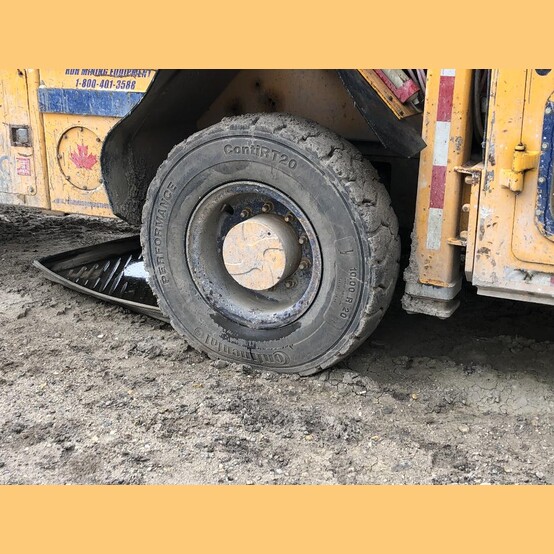

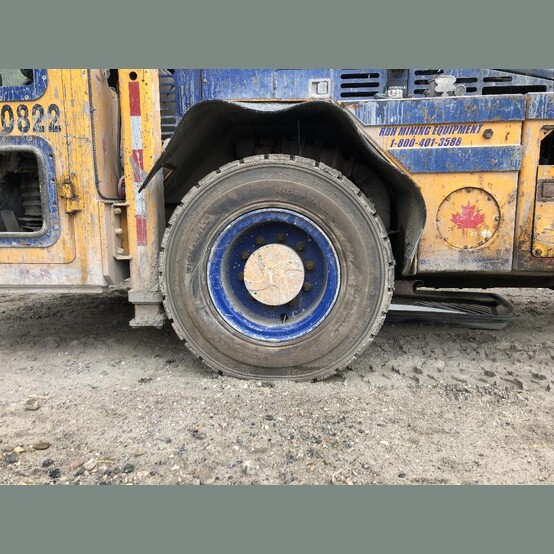

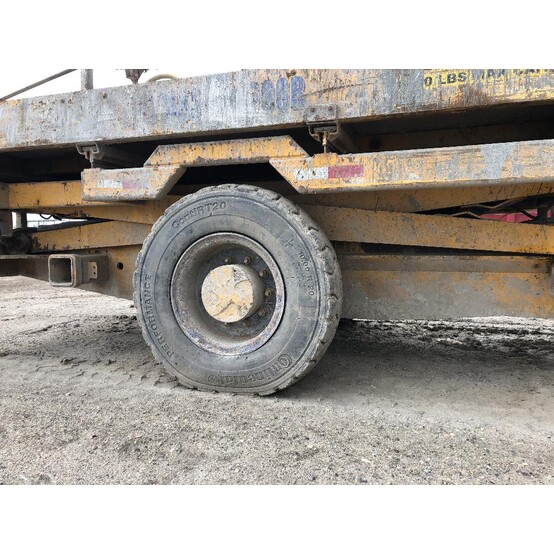

• Tires:

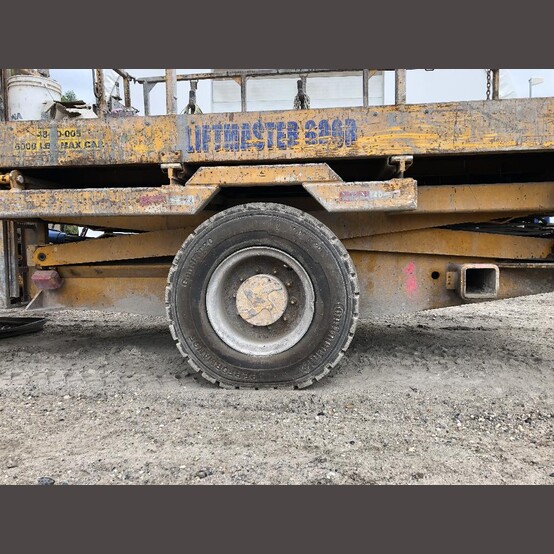

  • Mine Type, 10.00 – 20


• Steering:
  • Hydraulic, Articulated
  • Steering Angle: + 38°


• Hydraulics:
  • Steering and Platform: 170 bar, 190 L/min @2200 rpm
  • Hydraulic Oil Tank Volume: 230 L


• Electrical System
  • Voltage: 24 V
  • Battery: 2 x 12 VDC
  • Tramming/Working LED Lights: 4 front/4 rear
  • Brake Lights: 2 Rear


• Miscellaneous:
  • Central Grease Point

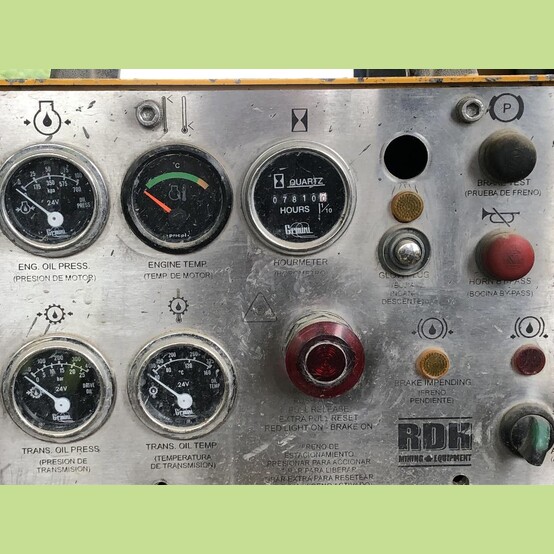

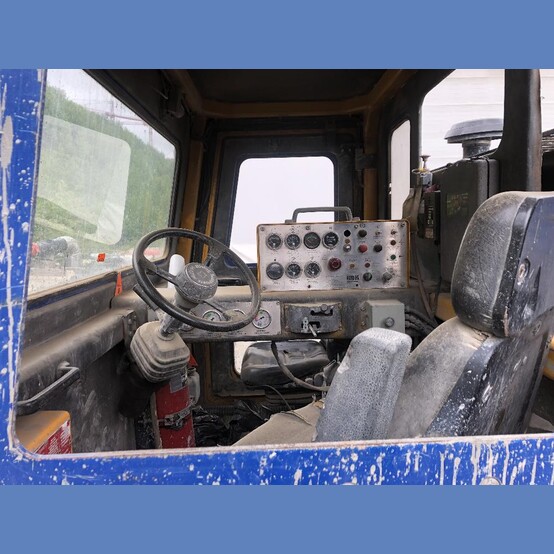

  • Standard Gauges and Instrumentation
  • ANSUL Fire Suppression
  • Copy of Parts/Operator/Service Manuals

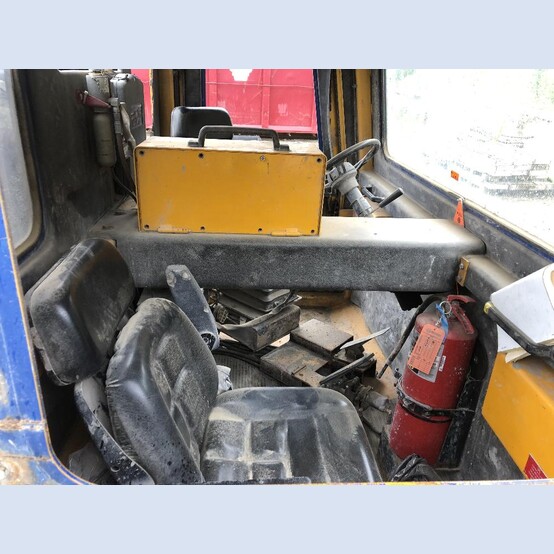

  • Passenger Seating
  • Suspension Seating (Operator/Passenger)
  • ROPS/FOPS Certified Canopy


• Overall Dimensions: Approx.
  • Length: 323in
  • Width: 90in
  • Height: 101in
  • Weight: 36,045 Lbs. (16,350 Kg)

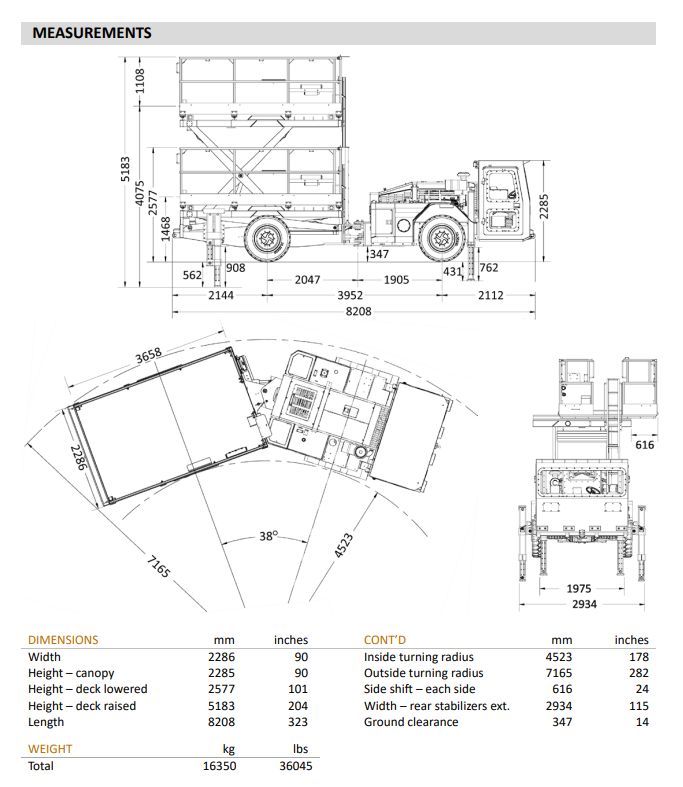

• View Spec Sheet Below


• Location: Western Canada
