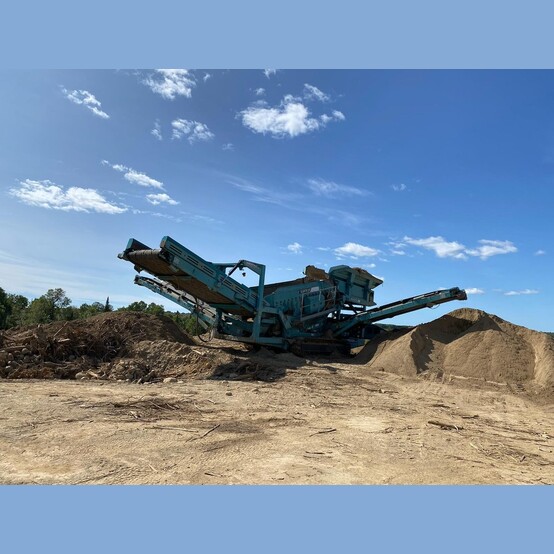

Powerscreen Warrior 1400

  • Make: Powerscreen
  • Model: Warrior 1400
  • Year: 2006
  • Hours: 6,000 Hours Approx.
  • Condition: Excellent
  • Output Potential up to 500 TPH (551 US TPH)
  • Power Unit: Diesel Hydraulic.

  • Hopper:
    • Target Area: 4.4m Long x 2.7m Wide.
    • Hopper Capacity: 6.78 m³ (8.87 yrd³ )
    • Feed in Height: 2.88m (Rear Hopper Door Lowered)
    • Hardox Side Plates. Lowering Section to Rear to Reduce Feed in Height for Smaller Crushers.

  • Screen Unit:
    • 12’ x 5’ (3.6 x 1.5m) Double Deck 2-Bearing
    • 15° to 18° Screen Angle Adjustable
    • Self Adjusting Motor Stand
    • 12mm Stroke @ 860 ±10 RPM
    • 10mm Stroke @ 920 ±10 RPM

  • Feed Conveyor
    • 1300mm (51”) Wide 4-Ply Plain Belt
    • Direct Feed Conveyor Fitted with Twin Direct Drive System & Hydraulic Variable Speed Control
    • Impact Bars and 5 Off ‘Extra Heavy’ Duty Impact Rollers Fitted Beneath Belt
    • 3.43m (11’-3”) Drum Centers

  • Collection Conveyor Below Screenbox:
    • 1200mm (48”) Wide 3ply Plain Belt
    • 2.795m (9’-2”) Drum Centers

  • Fines Conveyor:
    • 900mm (36”) Wide 3-Ply Plain Belt.
    • Hydraulically Folding
    • 3.45m (11’-4”) Stockpile Height. (Measured to Drum Crown).
    • 14° to 25° Angle Adjustable.
    • 61m³ (80 yrd³ ) Stockpile Capacity.
    • Impact Bars Under Feed Boot.

  • Oversize Conveyor:
    • 1200mm (48”) Wide 3-Ply Chevron Belt.
    • Variable Speed Control.
    • Impact Bar/Roller Combination.
    • Conveyor Slide Up System for Access to Bottom Deck Meshes.
    • 3.6 m (11’-10”’) Stockpile Height. (Measured to Drum Crown).
    • 10° to 24° Angle Adjustable

  • Powerunit & Hydraulics:
    • Diesel Engine: Caterpillar 3054 DIT, 82 kW (109 HP), Developing 74 kW (99HP) @ 2200 rpm.
    • Flywheel Pump: David Brown 5046/5033/5033
    • PTO Pump: David Brown 5023/5023 (23cc/rev each circuit)
    • Belt Feeder Motors: Danfoss OMSS125 (125cc/rev)
    • Apron Feeder Motor: Danfoss OMTS315 (315cc/rev)
    • Collection Conveyor Motor: Danfoss OMH500 (500cc/rev)
    • Fines Conveyor Motor: Danfoss OMH500 (500cc/rev)
    • Oversize Conveyor Motor: Danfoss OMV800 (800cc/rev)
    • Mid Conveyor Motor: Danfoss OMH500 (500cc/rev)
    • Screen Motor: David Brown MCC 2208 (59cc/rev)

  • Crawler Track Data:
    • Tractive Effort = 9,760 daN
    • Gradability Percentage = 30.4 % ( 13.33deg)
    • Gearbox Ratio = 1:122
    • Hydraulic Motor = Rexroth 63 cc/rev
    • Approximate Speed = 1.02 Km/hr

  • Tank Capacities:
    • Hydraulic Tank: 564 L (124 Gal)
    • Diesel Tank: 336 L (74 Gal)

  • Overall Dimensions
    • Length: 14.21m (46’7”)
    • Width: 2.75m (9’)
    • Height: 3.2m (10’6”)
    • Weight: 27,500kgs (60,627lbs)

  • Location: USA
