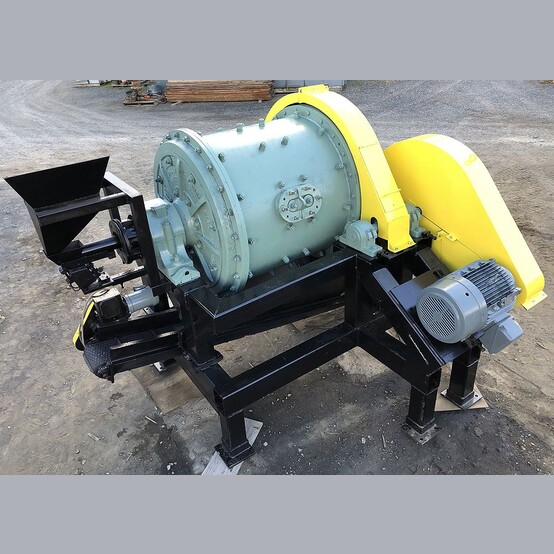

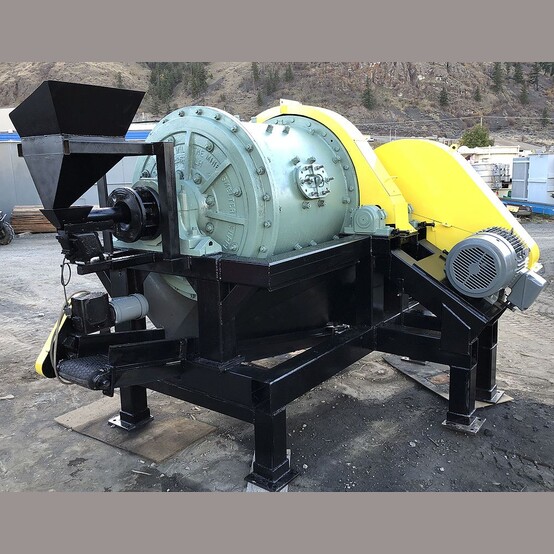

• Size: 4 ft. x 4 ft.
    • Steel Lined
    • Shell liners complete with lifters
  • Siemens 50 HP Electric Motor
    • Voltage: 460 Volts
    • RPM: 1180
    • Frame: 365T
    • TEFC
    • Belt Drive to Pinion gear
  • Full gear and drive pulley guarding.
  • Infeed Hopper with Syntron Magnetic Feeder Vibrator
    • Hopper Dimensions: 16 in. Wide x 16 in. High
    • 4 Dia. x 22 in. Long Infeed Tube
    • Vibrator: Syntron Model: BF2-A
      • Volts: 115
  • Under Mill Cleanout Channel Conveyor
    • Dimensions: 12 in. Wide x 10 ft. Long
    • Head Pulley and Tail Pulley
      • 4 in. Dia. x 14 in. Wide Rubber Coated
    • Single Ply Belt
      • Horse Shoe Pattern
      • 3/4 in. Wide x 12 in. Long x 3/4 in. High Ribs Spaced 12 in. Apart
    • 3/4 HP  Drive Motor:
      • Volt: 480
      • PRM: 1725
      • Frame: 56C
    • Grove Gear Reducer
      • Model: BMO 230-2
      • Input HP: 0.895
      • Ratio: 80-1
  • Mounted on operating stand constructed of 8 X 8 Square tubing.
  • Location: British Columbia, Canada
