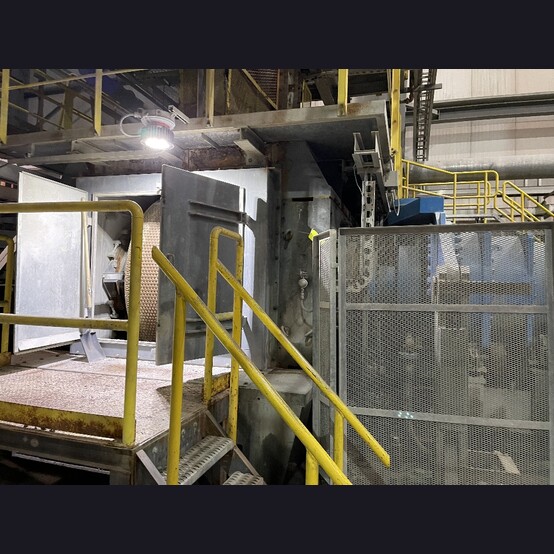

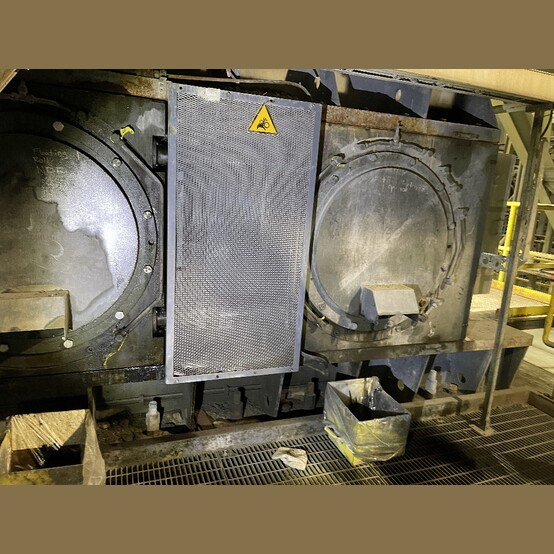

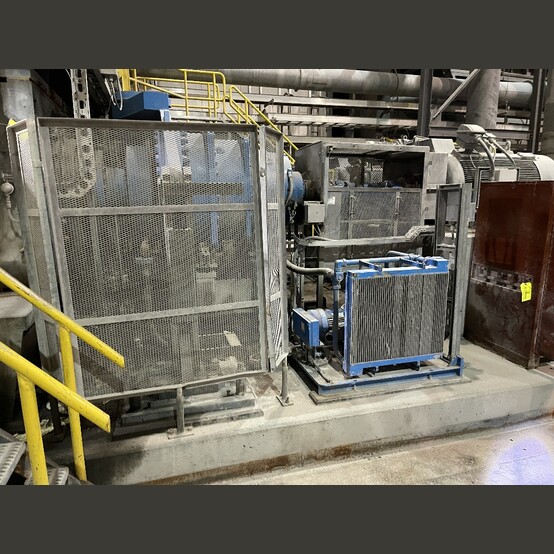

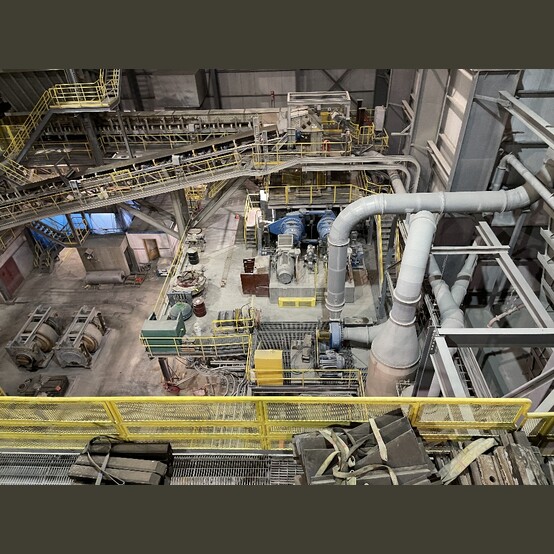

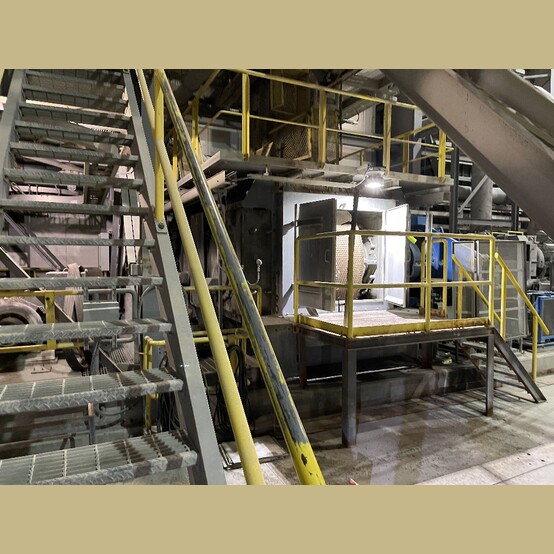

POLYSIUS HPGR Polycom High-Pressure Grinding Roll

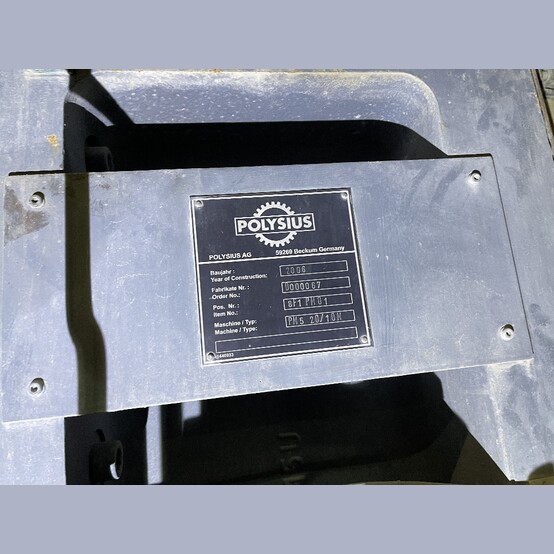

• Make: Polysius
• Model: PM5 20/10M
• Type: High Pressure Grinding Roll
• Year: 2006
• Capacity: 450 MTPH
• Condition: Used, Reported in Good Condition
• Complete With:

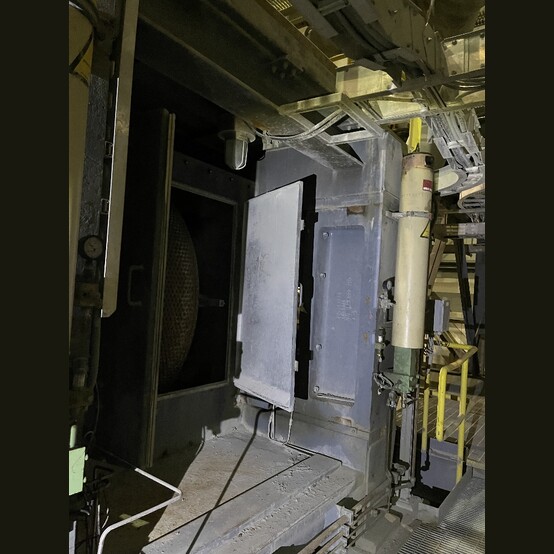

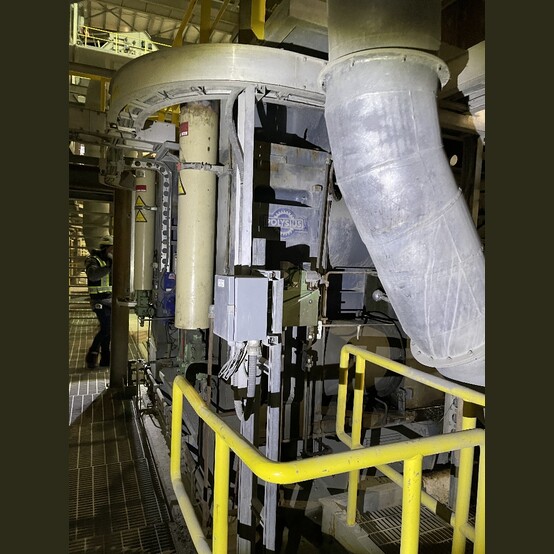

  • Machine Frame with Feed System

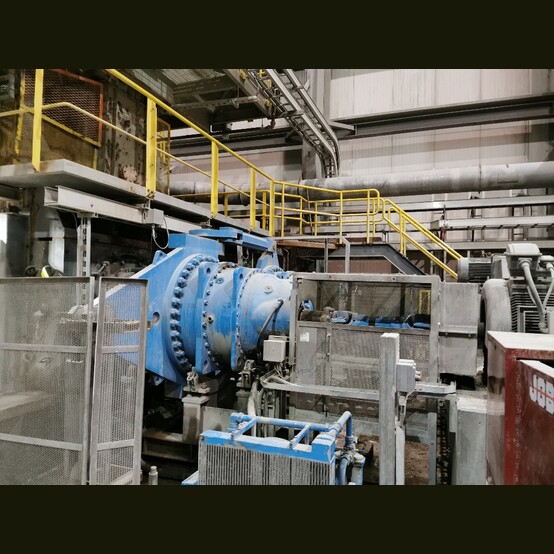

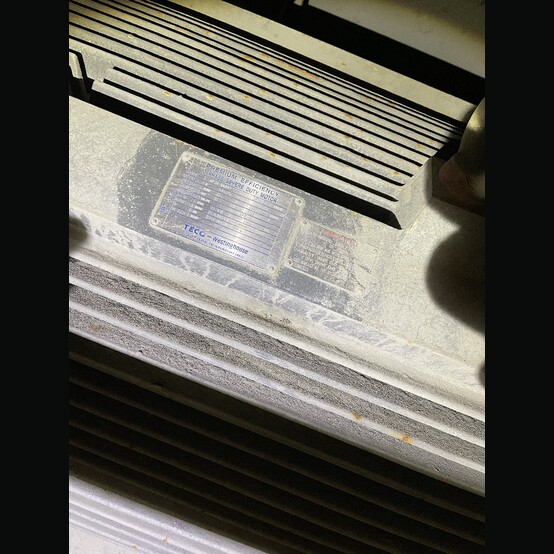

  • Drive Unit Powered by 2x Teco-Westinghouse Variable Speed Motors
    • Type: AEJH-SA001
    • Power Output: 2x 900HP
    • Voltage: 4000 Volts
    • RPM: 1188

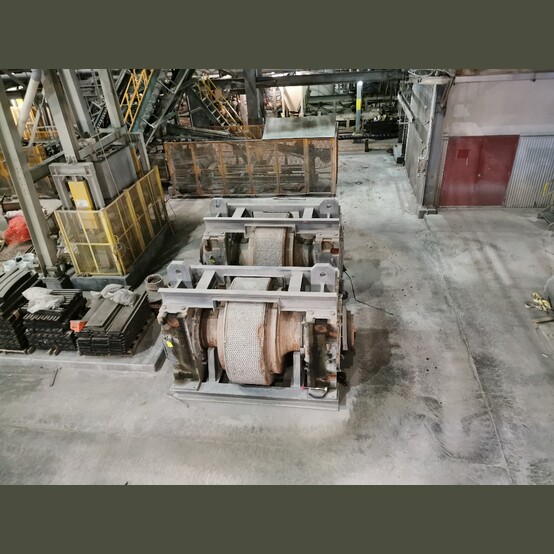

  • Spare Parts
  • Special Tooling


• General Specifications For Polysius Polycom PM5 20/10M Grinding Roll
  • Type: PM5 20/10M
  • Roll Diameter: 2,000mm (78.7in)
  • Roll Width: 1,000mm (39.4in)
  • Grinding Force: 8,600kN
  • Motor Power:
    • 2x 1,600HP - Hard Rock Application
    • 2x 900 - Kimberlite Application

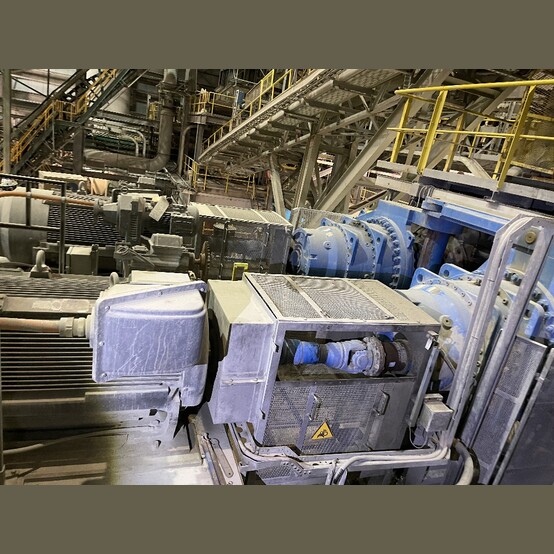

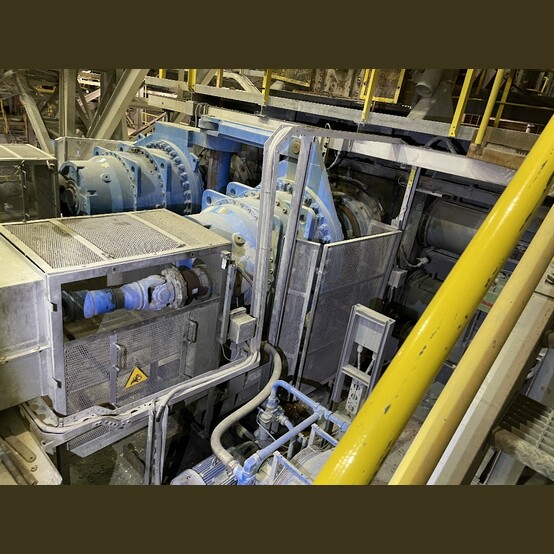

  • Motor Connection: Cardan Shaft Connection to the Gear Units
  • Roll Surface Lifetime: 60,000 Hours Iron Ore Pellet Feed, 20,000 Hours Hard Rock Application


  • Approx. Dimensions:
    • Length: 9,270mm (365in)
    • Width: 5,160mm (203in)
    • Height: 7,500mm (295in)


• Location: Canada
