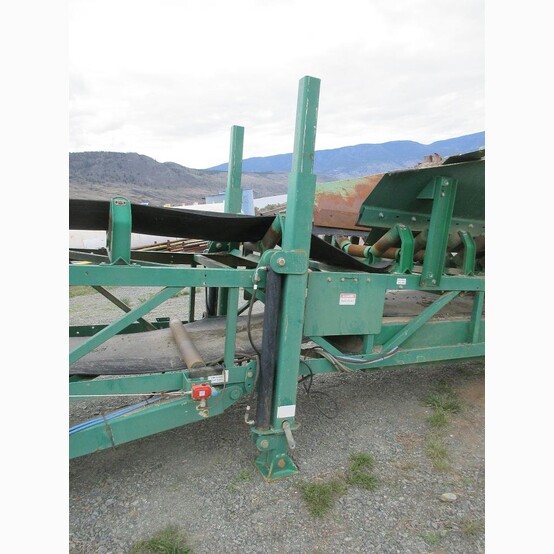

McCloskey 36in x 80ft Radial Stacker

• Make: McCloskey
• Model: 36x80DKT
• Type: Radial Stacking Conveyor
• Year: 2012
• Condition: Excellent Used Condition, Comes with New Belt Installed (Original Belt Torn and Removed)


• Working Dimensions:
  • Height: 32ft (10m)
  • Length: 77ft (23.5m)
  • Width: 11ft 2in (3.4m)
• Belt Size: 36in Wide x 80ft Long
• Capacity: 500 TPH
• Stockpile Height: 32ft (10m)
• Stockpile Volume: 14,260yd³ (10,900m³) @ 180°
• Hydraulic Controlled Head Section - Top Fold
• Leg Stabilizers
• Wheel Drive
• Radial Axles
• Feed Hopper
  • Length: 6ft
  • Width: 5ft
  • Height: 3ft

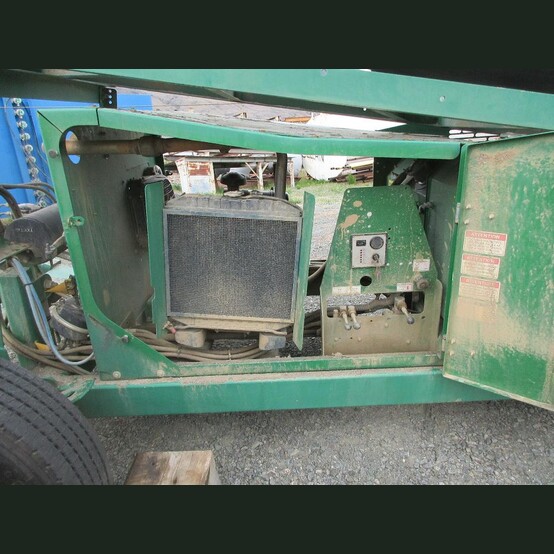

• Engine: Kubota 4-Cyl (48HP)
  • Model: Y2203-M-EU32
  • Hours: 412.2
  • Built-In Fuel Tank


• Tires: Sentaida Tires
  • Size: 255/70R22.5


• Transport Dimensions (Approx.)
  • Length: 61ft (18.6m)
  • Width: 10ft 8in (3.2m)
  • Height: 13ft 5in (4.1m)
  • Weight: 15,000 Lbs. (6,800 Kgs)


• Location: Savona, British Columbia, Canada
