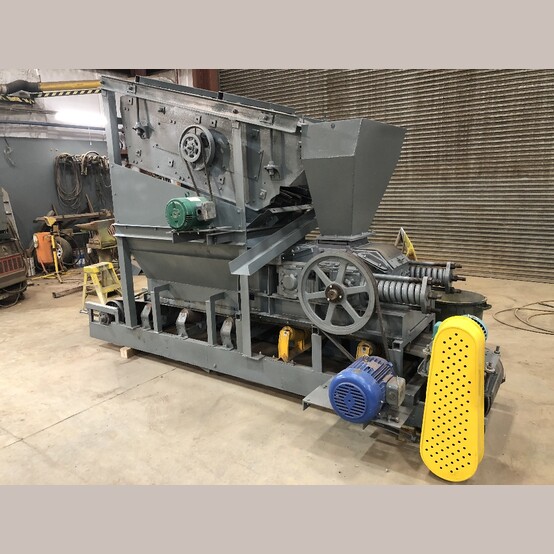

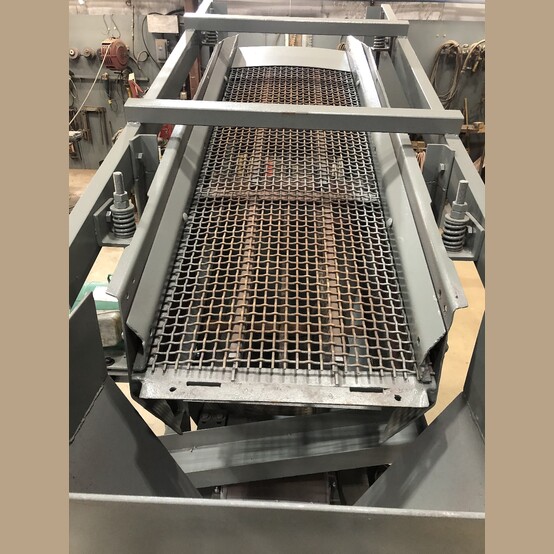

• 2’ X 6’ Dillion 2 Deck vibrating Screen
    • ¾” screen cloth installed on top deck only.
    • Belt driven by a 3Hp, 575 volt motor.
  • 16” Dia. X 10” wide Denver dual drive roll crusher.
    • Belt drive by 2 – 7.5 hp motors
      • 575 volt, 1755 rpm.
  • 18” wide X 12’ long discharge conveyor.
    • 12” dia. Head and tail pulley
    • 12° idlers.
    • Belt driven by a 2hp motor
      • 575 volt, 1725 rpm
    • Through a Dodge TXT2 shaft mount reducer
  • Location: British Columbia, Canada
