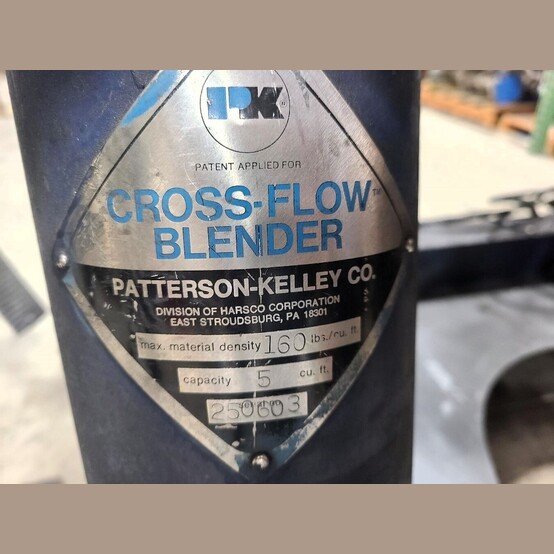

Patterson-Kelley Cross-Flow Blender

• Make: Patterson-Kelley
• Type: Asymmetrical V-Cone
• Condition: Used
• Capacity: 5ft³
• Max Material Density: 160lbs/ft³
• Interior Body Diameter: 18in Diameter
• Gasketed Covers
  • Qty: 2
  • Quick Release
• Discharge: Butterfly Valve
  • Diameter: 6in Diameter
• Hydraulic Lift:
  • 4,000lbs
  • Travel: 35in
  • Drive: Self Powered
    • Power Output: 1HP
    • Voltage: 115 Volt
    • Phase: Single Phase
• Swing Radius: Approx. 33in from Shaft Center
• Blender Drive:
  • Power Output: 2HP
  • Voltage: 208-230/460 Volts
  • Frequency: 60Hz
  • Phase: 3-Phase
• Overall Dimensions (retracted position):
  • Length: 88in
  • Width: 60in
  • Height: 61in
  • Weight: 2,402lbs

• Location: Eastern USA
