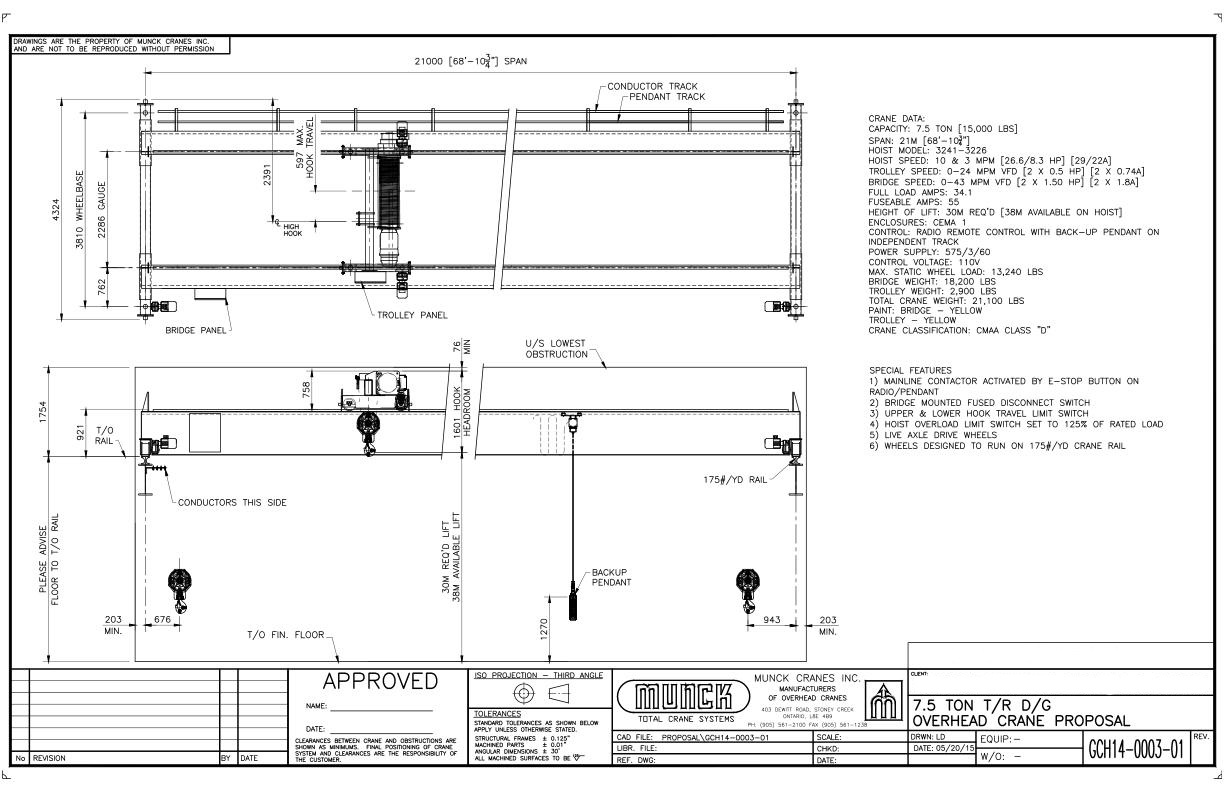

• Capacity: 7.5 Ton (15,000 lbs)
• Span: 21m (68 ft. - 10 3/4 in.)
• Hoist Model: 3241-3226
• Hoist Speed: 10 & 3 mpm (26.6/8.3 HP) (29/22A)
• Trolley Speed: 0-24 mpm VFD (2 x 0.5 HP) (2 x 0.74A)
• Bridge Speed: 0-43 mpm VFD (2 x 1.50 HP) (2 x 1.8A)
• Full Load Amps: 34.1
• Fuseable Amps: 55
• Height of Lift: 30m REQ'D (38m Available on Hoist)
• Enclosures: Cema 1
• Control: Radio Remote Control with Back-Up Pendant on Independent Track
• Power Supply: 575/3/60
• Control Voltage: 110V
• Max. Static Wheel Load: 13,240 lbs
• Bridge Weight: 18,200 lbs
• Trolley Weight: 2,900 lbs
• Total Crane Weight: 21,100 lbs
• Crane Classification: CMAA Class "D"
• Special Features
  • Mainline Contactor Activated By E-Stop Button on Radio/Pendant
  • Bridge Mounted Fused Disconnect Switch
  • Upper & Lower Hook Travel Limit Switch
  • Hoist Overload Limit Switch Set to 125% of Rated Load
  • Live Axle Drive Wheels
  • Wheels Designed to Run on 175#/YD Crane Rail
• Location: Western Canada
