Sold

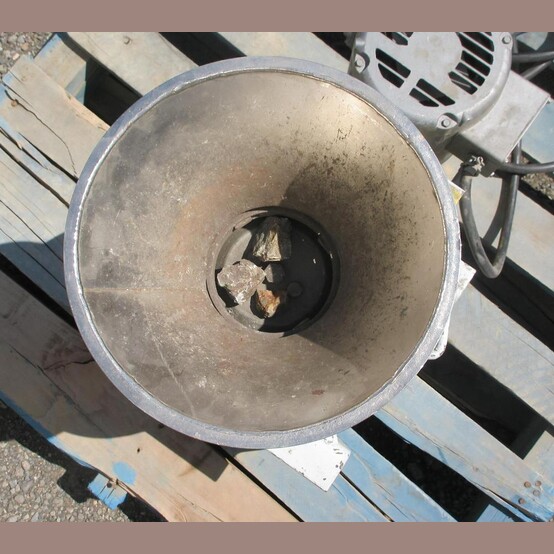

Marcy 6in Gy-Roll Lab Cone Crusher

• Make: Marcy - Svedala Industries Inc.
• Model: Gy-Roll
• Type: Lab Cone Crusher
• Condition: Used Condition
• Size: 6in
• Capacity: Up to 1.77 TPH (Magnesite @ 3/16in)
• Maximum Particle Size: 0.5in (13mm)
• Reduces 0.5in Feed to 10 Mesh in a Single Pass
• Hopper Opening: 10.625in
• Crusher Opening: 4.25in
• Discharge Outlet: 8in x 8in


• Drive: Electric Motor
  • Power Output: 0.75HP
  • Rotation Speed: 1725RPM
  • Voltage: 115/230 Volts
  • Current: 10.8/5.4 Amps
  • Frequency: 60Hz
  • Phase: Single Phase


• Overall Dimensions:
  • Length: 23in
  • Width: 15in
  • Height: 22in


• Location: Savona, British Columbia, Canada

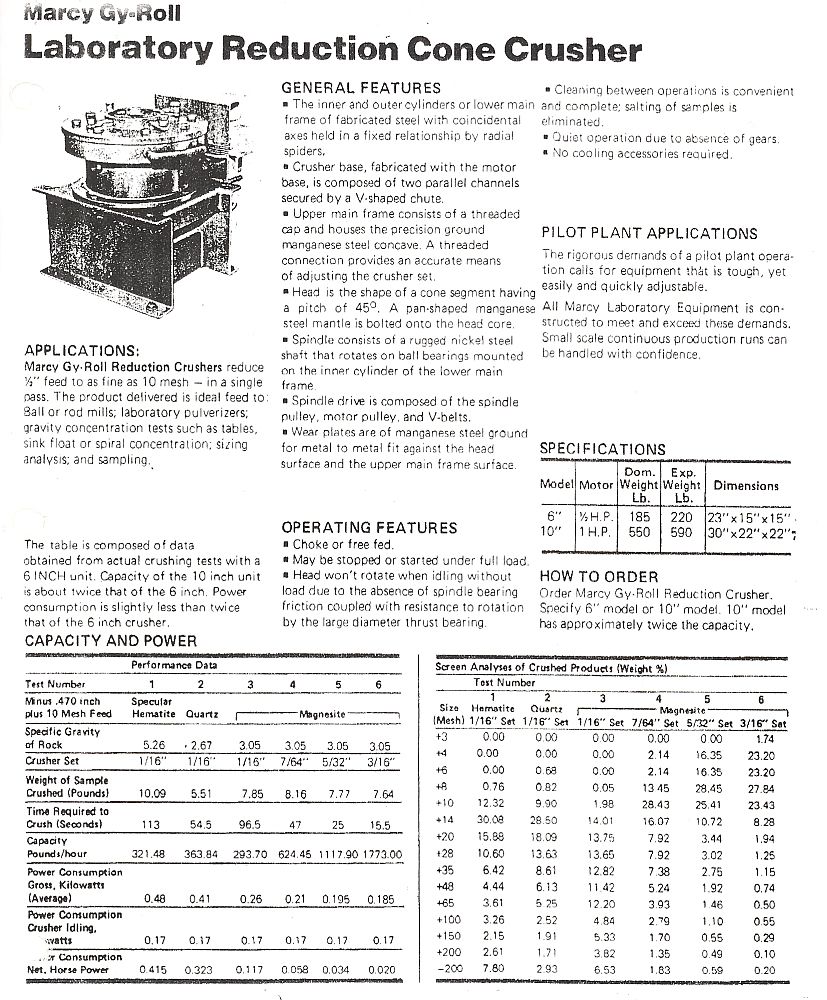

View Spec Sheet Below
