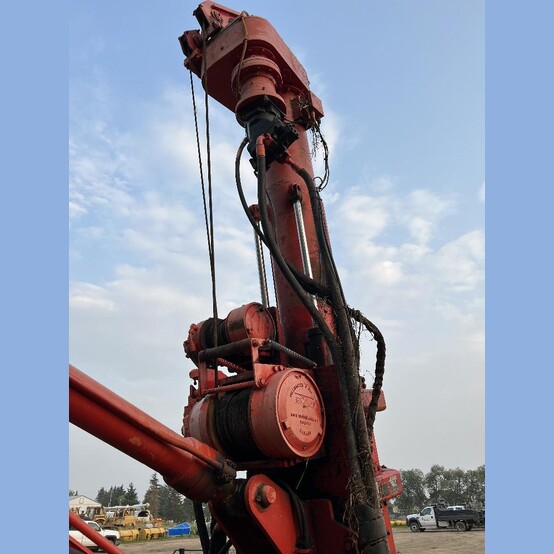

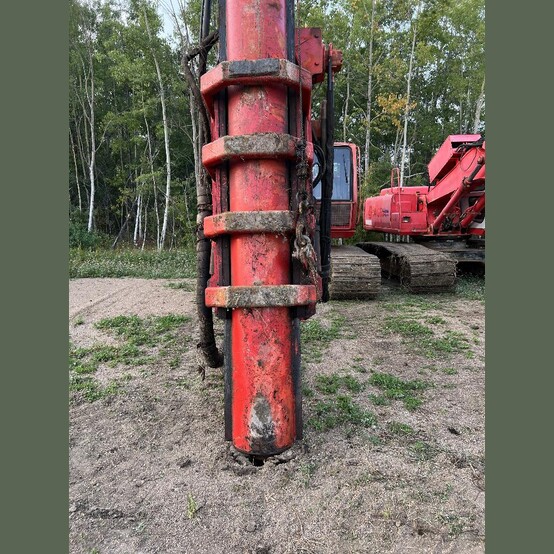

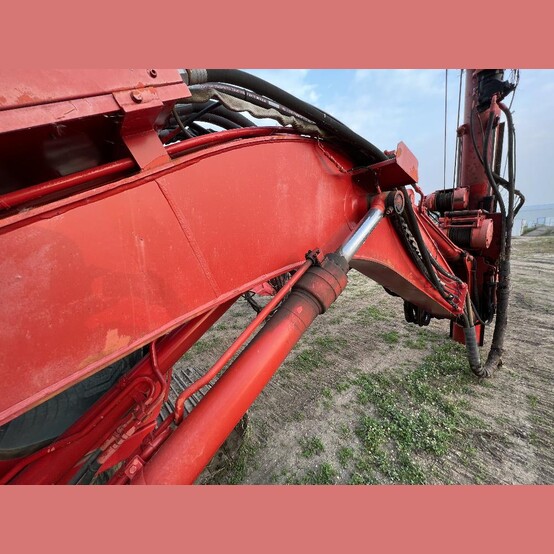

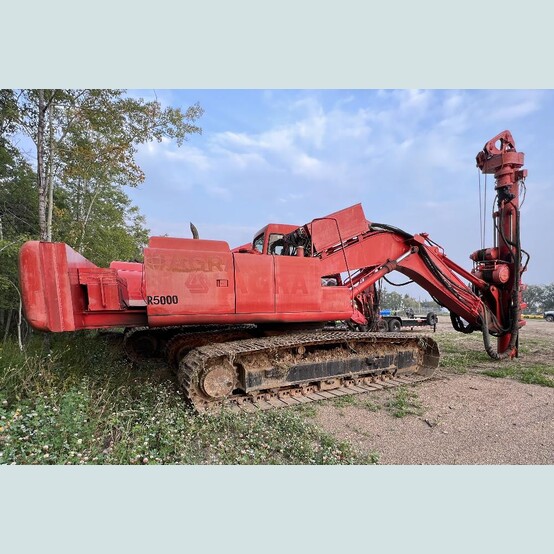

LoDril LLM-60 Foundation Drill

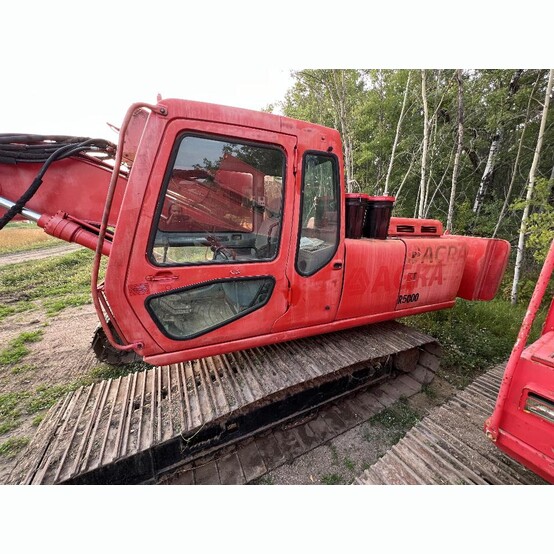

• Excavator:
  • Make: Sumitomo
  • Model: SH-200
  • Hours: 13,098.6
  • Weight: 44,300 Lbs.

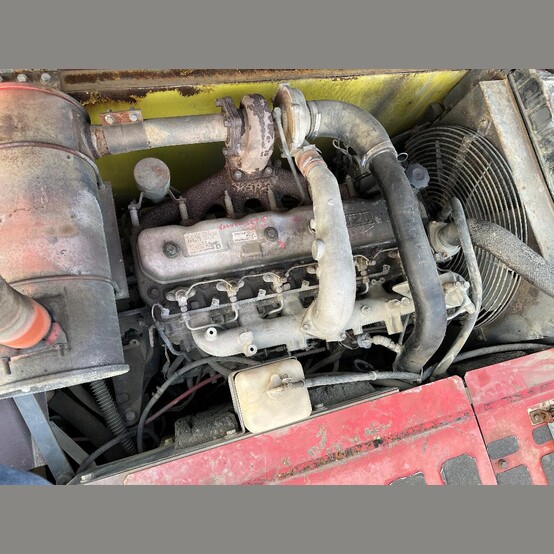

  • Engine: Isuzu 6BD1T
  • Horsepower: 99HP
  • Max System Pressure: 4,980 PSI
  • Hydraulic Pump Flow: (2x) 52 GPM

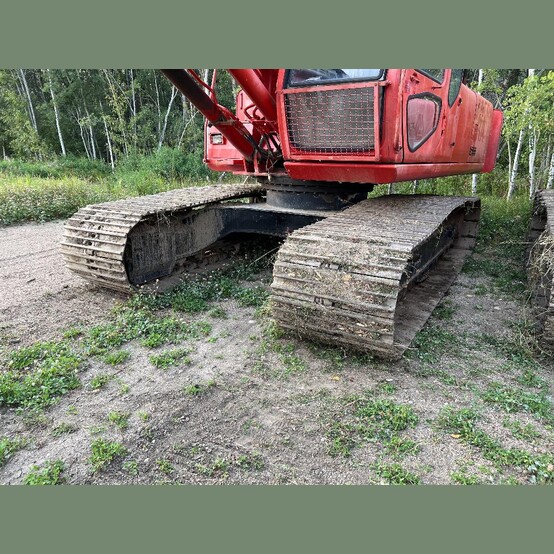

  • Track Pads: 31.5in


• Attachment: LLM-60
  • Weight: 12,000 Lbs.
  • Height: 18.5ft (w/o Tooling)
  • Crowd Stroke: 66in
  • Winch: Pullmaster H-18
    • Hoist Speed: 150 FPM
    • Lower Speed: 720 FPM
  • Service Winch: Pullmaster M-8
  • Rotary:
    • Torque: 24,000 ft-lbs.
    • Drilling Speed: 0-60 RPM
    • Spin Off Speed: 100 RPM
  • Kelly: 5-Element
  • Digging Depth: 60+ Feet
  • Diameter: Up To 6ft


• Location: Western Canada
