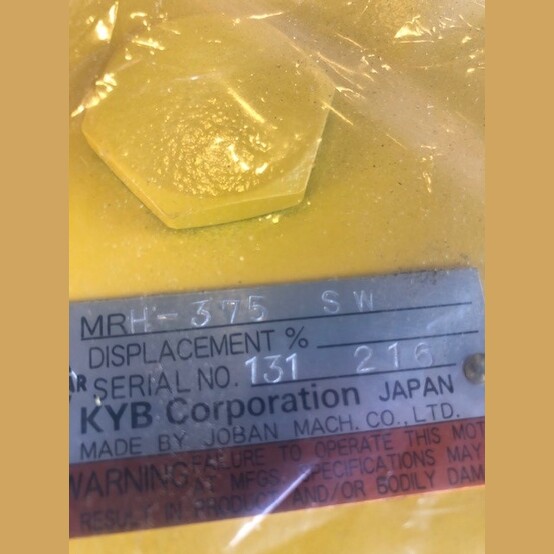

KYB Hydrostar MRH-375 SW
- Make: KYB
- Model: Hydrostar MRH-375
- Condition: New
- Heavy Duty Model
- LSHT Motor (Low-Speed, High-Torque)
- SW
- Standard Shaft
- SAE 4 Bolt Flange
General Features:
- Speed is Infinitely Variable and Torque Constant Over Entire Speed Range
- Excellent Efficiency Allows Precise Positioning of Driven Equipment
- Rapid Acceleration, Deceleration and Reversing
- Large Main Bearings: Long Life, Allow Heavy Side Load Capacity
- B10 Life= 5500 Hours (Average Life of Bearings is 22,000 Hours)
- Several Drain Port Locations to Ease Mounting
- Seals Made of VitonÆ
- Commonly Used in Fishing to Forestry, Mining to Marine, Recycling to Shredders, as well as Conveyors and Railroad Equipment.
Specifications
- Displacement Volume: 377.5 in.³/Rev
- Maximum Continuous Pressure: 3570 PSI
- Intermittent Peak Pressure: 4000 PSI
- Maximum Continuous Back Pressure: 350 PSI
- Maximum Continuous Output Torque: 16300 ft-lbs
- Starting Torque at 3570 PSI: 12,700 ft-lbs
- Maximum Continuous Speed @3000 PSI: 120 RPM
- Maximum Continuous Speed @3570 PSI: 60 RPM
- Maximum Continuous Power: 300 HP
- Moment of Inertia (GD²): 9820 lb-in.²
- Maximum Fluid Temperature: 175°F
- Shipping Dimensions: 23.6" Diameter x 25.7" Long
- Weight: 1150 Lbs
- Location: Western Canada
