2015 Maximus MXC-2 Cone Crusher

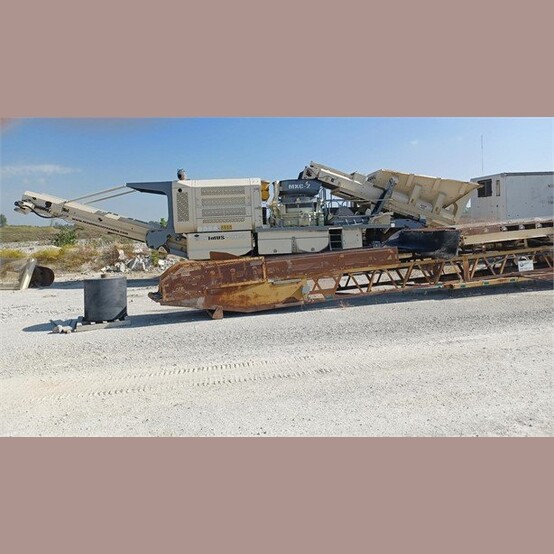

Description: The MXC-2 is a medium to large tracked mobile cone crusher and comes equipped with a 1200mm (47”) MSP300 high capacity cone. The MXC-2 is ideally suited to secondary crushing applications such as taking feed from the primary jaw crusher and provides excellent reduction ratios, throughput potentials and finished material cubicity.

Make: Maximus

Model: MXC-2

Year: 2015

Condition: Very Good Used Condition

Equipment Details:

                Control Type: Automated- Digital Control Panel

               Motor: CAT C13 Diesel (Tier III)

               Shipping Dimensions: 55'8" Long x 10'10" Wide x 14'1" Tall

               Shipping Weight: est. 50,000KG

General Model Specifications:

  • Production Rate: 360-430 TPH

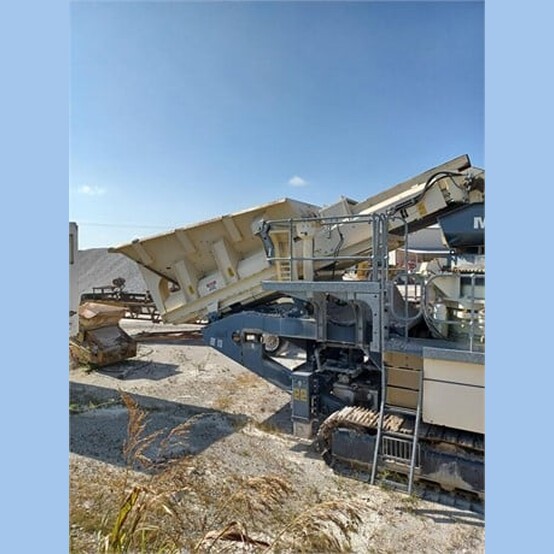

  •  Infeed
    • 10mm Hardox
    • Hopper Capacity 5.0 m³ ( 176 ft³ )
    • Feeder Capacity 10.0 m³ ( 352 ft³ )
    • Choke fed with a level sensor

  • Feed Conveyor
    • Belt: 1050mm (42") Wide
    • Metal Detector fitted above and below

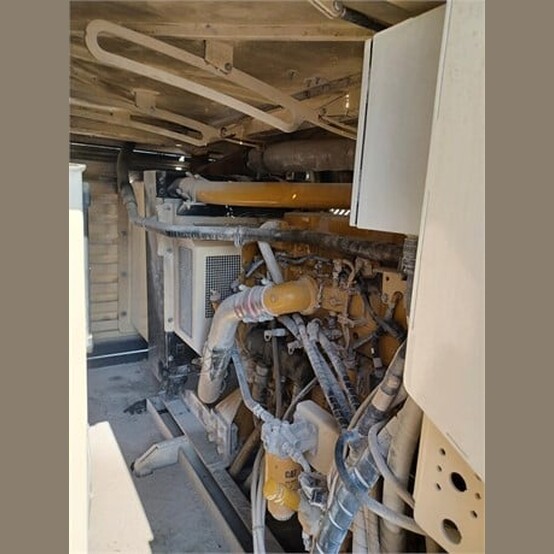

  • Power Unit
    • CAT C13 Diesel (Tier III)
    • 440 HP (328kW)
    • Fuel efficient direct drive to Cone Crusher via PT Tech Clutch with pulleys and V-belts
    • 2988 Engine Hours

  • Cone Crusher

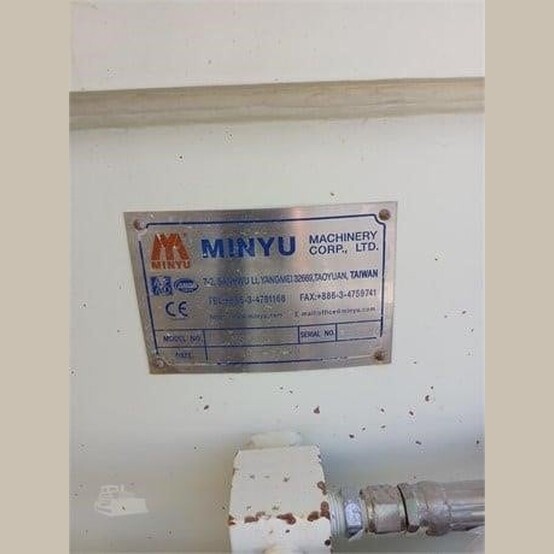

    • Minyu MSP 300 Cone
    • 1200 mm Dia (360-430 TPH)
    • 750 RPM
    • 2249 Cone Hours

  • Product Conveyor
    • Belt : 1200 mm (47”)

  • Tracks
    • Width : 500 mm
    • Length : 4400 mm
    • Kawasaki swash plate type axial piston pumps for efficient track drives
    • Radio remote controlled tracks (Hetronic System)

  • Lubrication System
    • Webasto lubrication oil heating system built in as Standard in the lube tank
    • Can be pre-set to heat the lube oil up to 2 hours in advance
    • Webasto heating system gives a 10-20 min start up time for the Crusher in cold climates

Location: South Central USA
