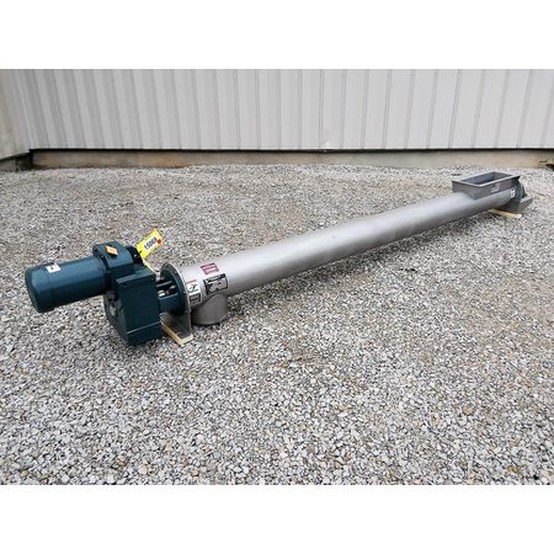

KWS 9 in. x 12 ft. SS Screw Conveyor ID: 192959

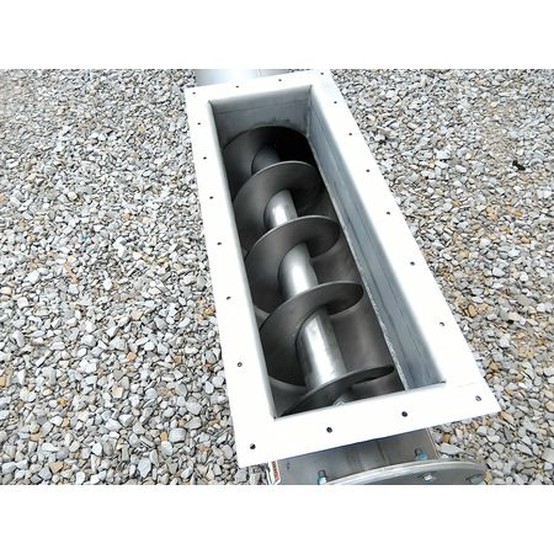

  • 9 in. diameter.
  • 12 ft. long.
  • Stainless Steel construction.
  • Weight= 970 lbs.

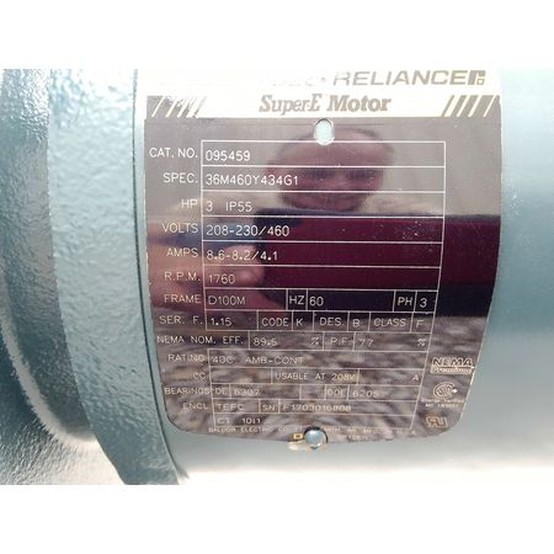

  • Motor:
    • Super E 3 HP Motor
    • Cat. No.: 095459
    • Volts: 208-230/460V.
    • RPM: 1760.
    • Amps: 8.6-8.2/4.1.
    • Frame: D100M.
    • Hz: 60.
    • Phase: 3.
    • Ser. F.: 1.15.
    • Code: K.
    • Des.: B.
    • Class: F.
    • Nema Nom. Eff.: 89.6%
    • P.F.: 77%
    • Rating: 40 Deg. Cels.
    • Amb.: Cont.

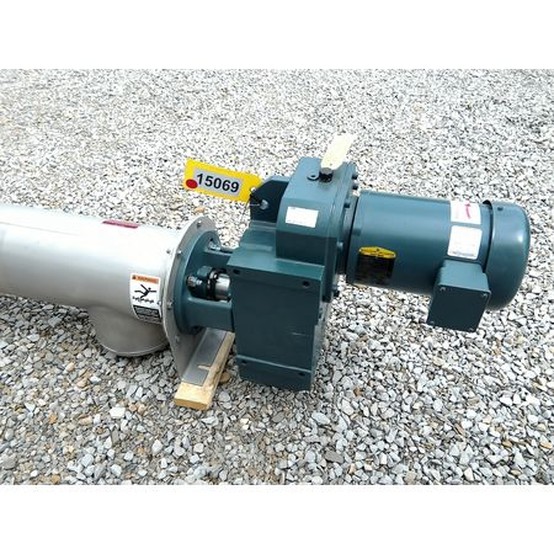

  • Speed Reducer:
    • Quantis
    • Catalog No.: MW882GH100J4.
    • Serial No.: BT171602236.
    • Ratio: 30.67: 1.
    • Input Speed: 1750 RPM.
    • Output Torque: 11441 IN-LB Max.
    • Input Power: 10.36 HP Max.
    • Mounting Position: A1.
    • Lube Type: RL02.
    • Ops. Manual: MN1617.
