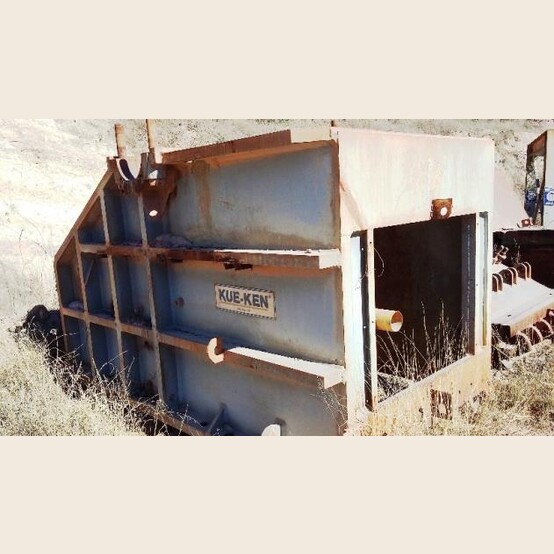

Kue Ken 48in x 60in Jaw Crusher

• Make: Kue Ken
• Model: 48in x 60in
• Type: Jaw Crusher
• Condition: Used Condition
• Feed Opening: 48in x 60in
• Max Feed Size: 38in Dia.
• Discharge Size:
  • Max: 14in (355mm)
  • Min: 6in (152mm)
• Capacity:
  • 900-1000 TPH @ 14in Output Size
  • 400-500 TPH @ 6in Output Size
• Weight: 163,000 Lbs.


• Includes Spare Parts Package;
  • (4) Toggle Pins (Metso K5222-B1)
  • (2) Jaw (1901 10018731 AMSU)
  • (1) Front Toggle (95 K5222-R1)
  • (8) Lower Jaw Plate #4 (K7846)
  • (6) Upper Movable Jaw Plate #5 (K7893-A)
  • (16) 8ft x 20ft Rubber Mesh Screen
  • (9) 6ft x 16ft Reinforced Rubber Mesh Screen
  • (10) 8ft x 20ft Superior Screen (3-1/2G)
  • (7) 6ft x 16ft Upper Mesh Screen (DD V-14)
  • (12) Toggle Seat #88 (K5222-A1)
  • (13) Lower Holding Bolt #37 (K5233-J)
  • (11) Hinge Pin Cap Bolts (P/N 90B, K823-06)
  • (66) Jaw Plate Spring Bolt #70
  • (1) Roller Bearing Pump (#11P)
  • (3) Flywheel Housing (P/N 20#, K5232-HQ)
  • (1) Roller Bearing - Flywheel Side (#11F)
  • (12) Toggle Seat Spring #42 (K5549-EV)
  • (5) Non-Driving Shoe (84N)
  • (3) Pump Drive Gear & Shaft (K5223-G)
  • (7) Pump Drive Gear #50 (K5157-F)
  • (7) Inner Diaphragms #21 (K2516-AJ)
  • More Parts Available - Please Inquire for Complete List


• Location: Mexico
