KPI-JCI 8ft x 20ft 3-Deck Wash Plant ID: 1281635

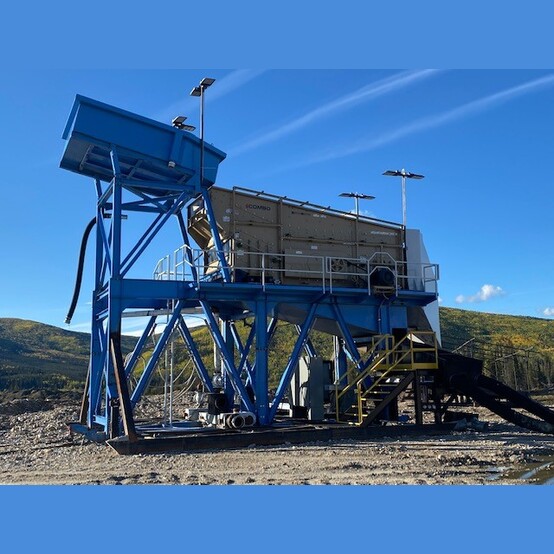

KPI-JCI 8ft x 20ft 3-Deck Wash Plant

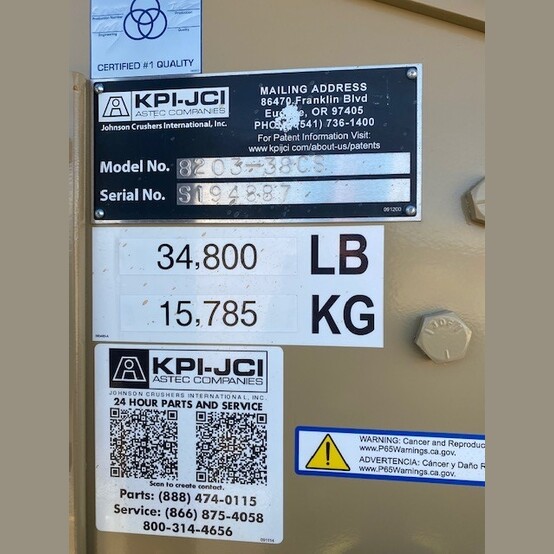

  • Make: Astec KPI-JCI
  • Model: 8203-38CS
  • Style: Combo Screen
  • Size: 8ft Wide x 20ft Long
  • Decks: 3-Tier Deck
    • All Decks Angled at 20° First 4ft, 10° next 4ft and Horizontal for the Remaining
  • Capacity: Up To 800 YPH
  • Condition: Never Used

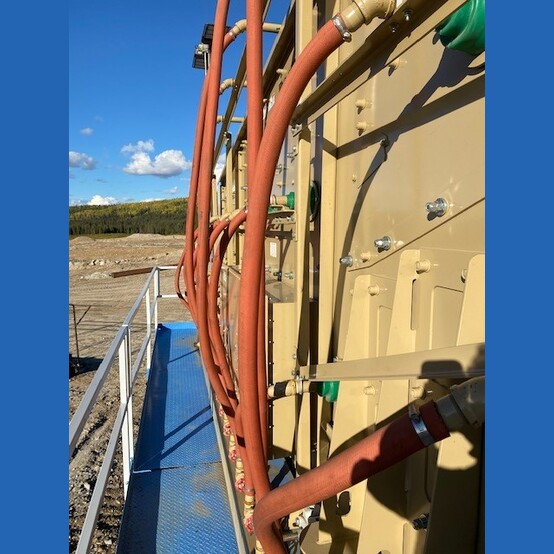

  • 10in Water Manifold and Valves
  • 480 Volt Power Requirement
  • Step-Down Transformer 120/240V

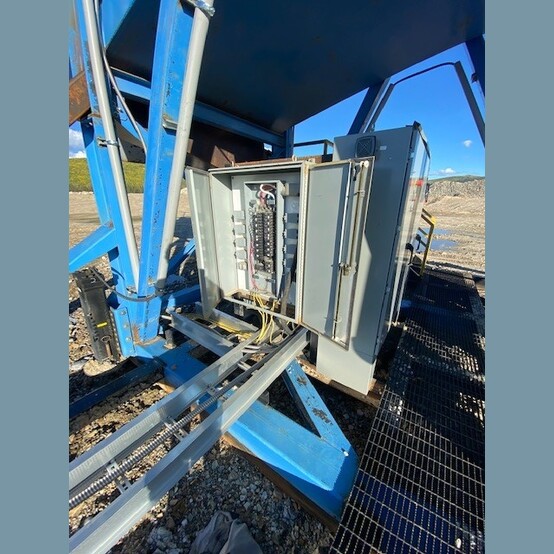

    • With Panel and Plugs
  • Lights have Plug-Ins for Local Power
  • Hydraulic Pack
    • For Leveling Jacks (4 Units)
  • Comes with Discharge Chute
  • Mounted On Skid

  • General Specifications:
    • Adjustable Stroke Length (Amplitude): Max 0.625in to 0.75in
    • Adjustable Stroke Angle (Timing Angle): 30° to 60°
    • Operating Speed Range: 675-875 RPM
    • Maximum Feed Size: 10in
    • Maximum Media Weight: 8 lbs./ft²
    • Maximum Top Deck Opening: 4in
    • Maximum Feed Drop Height: 18in
    • Bearing Size: 190mm Wide

  • Location: Northern Canada
