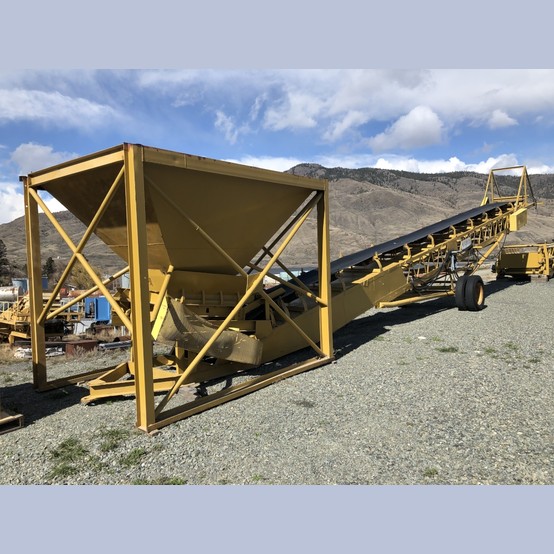

- Self-Supported 10 Yard Feed Hopper
- 21 in. Wide Adjustable Discharge Gate.
- 24 in. Wide X 5 ft. Long Plate Feeder C/W 3/8 in. Wear Plate.
- Chain Driven Off Conveyor Tail Pulley.

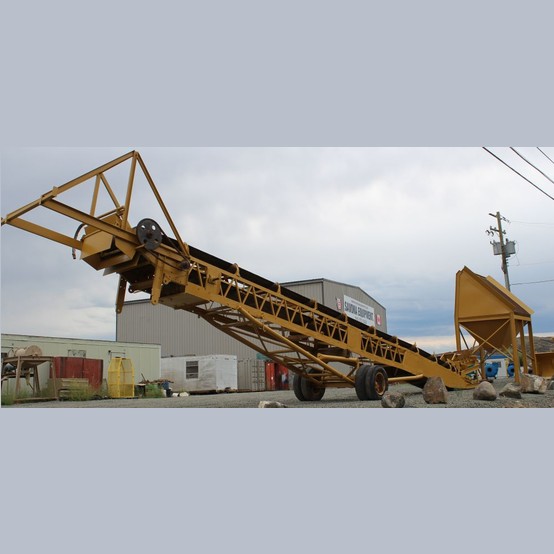

- 30 in. X 50 ft. Long Screen Feed Conveyor.
- 24 in. Deep Covered Truss Frame.
- 16 in. Plain Steel Head Pulley.
- 15 in. Self Cleaning Tail Pulley.
- 5 in. Dia. - 20° Idlers On 4.5 ft. Spacing.
- 3 Ply Belting, 1/8 in. Top, 1/32 in. Back.
- Chain Driven By a 20 HP Reliance Electric Motor 220/440 Volt.
- Kolman Model DC 90-54 - 2 Deck Wash Screen.
- 4.5 ft. Wide X 9 ft. Long.
- Belt Driven By a 7.5 hp motor.
- Top Deck - 7/8 in. Cloth C/W 5 Spray Bars (With Flow Control Valve).
- Bottom Deck - 1/4 in. Cloth C/W 4 Spray Bars (With Flow Control Valve).
- Fully Enclosed Fines Unders Hopper With 2 – 10 in. Dia. Discharge Spouts.
- 5 ft. Wide X 6 ft. Long Overs End discharge chute.
- Overhead Extended Screen support.
- All On Single Axle Dual Wheel Chassis.
- 8.25 – 20 Tires.
- Manual Raise.
- Location: Western Canada
