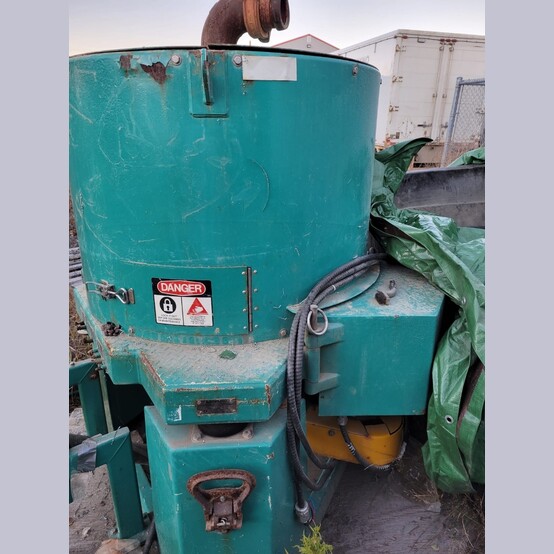

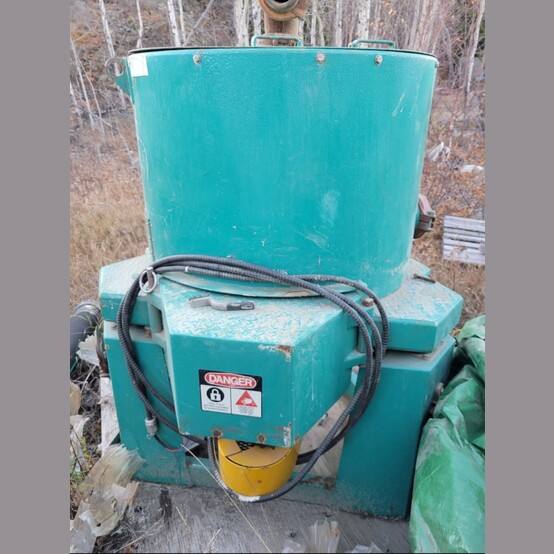

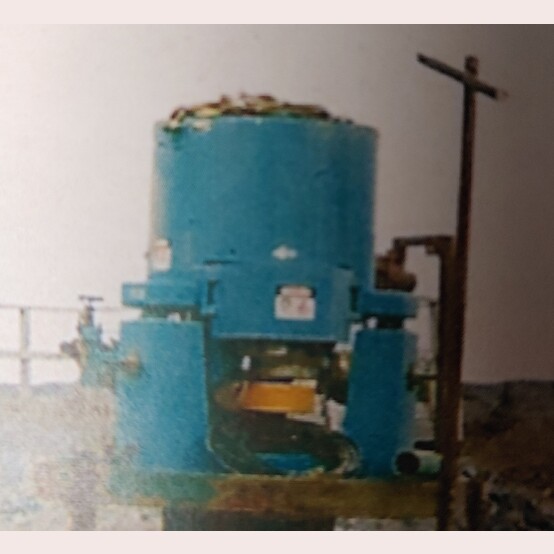

Knelson KC-CD20 Gold Concentrator

• Make: Knelson
• Model: KC-CD20

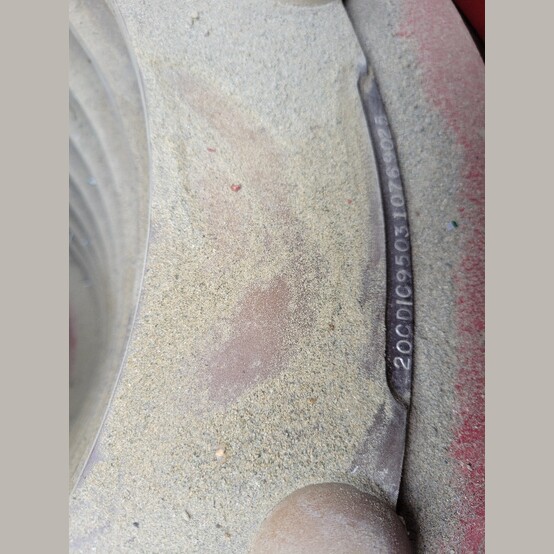

• Serial: 20CDIC950310769025
• Year: 2008
• Condition: Used, Reported in Good Condition
• The Continuous Discharge Components Have Been Removed. Unit was Operated in Manual Mode
• It Has Been Previously Rebuilt and Runs Fine

  • Riffles Replaced
  • Belt Replaced
  • Main Seal at Bottom Replaced

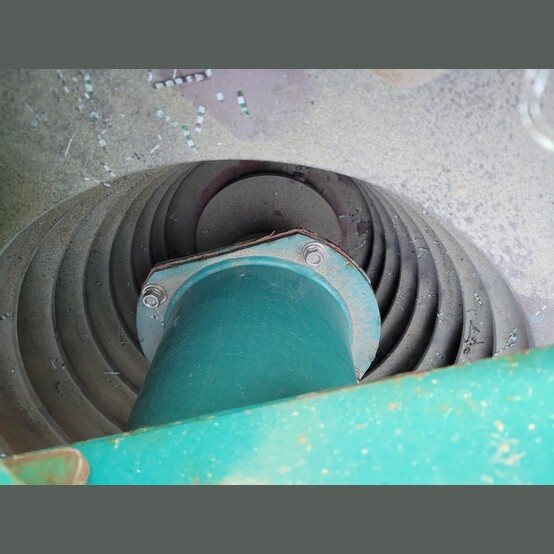

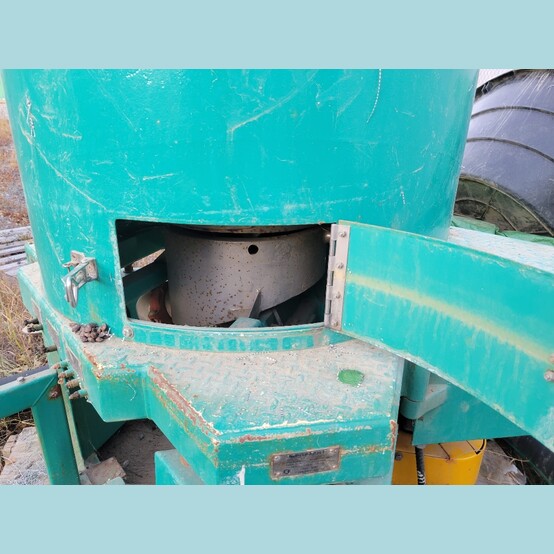

  • Drum Removed all Holes Cleaned


• General Model Specifications:
  • Knelson Concentrator Model: KC-CD20
  • Solids Feed Capacity: 16-88 TPH
  • Fluidization Water Required: 35-60 U.S. GPM (8-14m³/hr.)
  • Maximum Volumetric Throughput: 485 U.S. GPM (110m³/hr.)
  • Active Capture Area: 462in² (2,982cm²)
  • Feed Size:
    • Recommended: 10 Mesh (1.7mm)
    • Max: 0.25in (6mm)
  • Concentrate Volume: 5 Liters
  • Concentrate Weight: 15-22 Lbs. (7-10kg)
  • Concentrator Net Weight: 2,000 Lbs. (900kg)

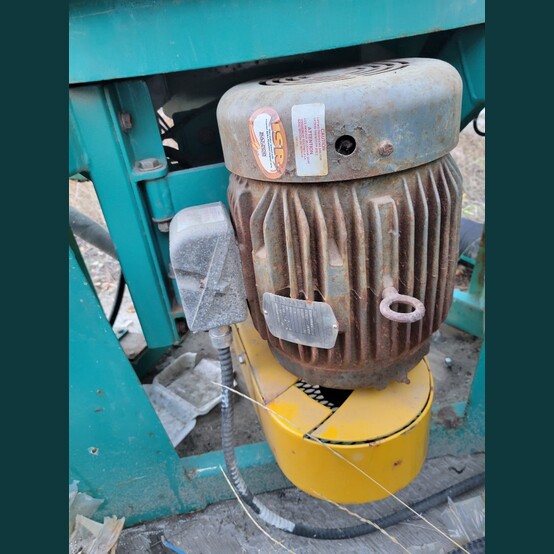

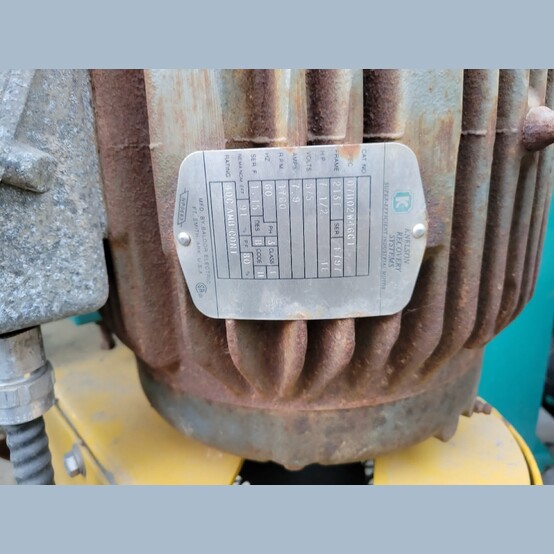

  • Motor Power: 7.5HP (5.6kW)
    • Voltage: 575 Volt
    • Frequency: 60Hz


• Location: Central Canada
